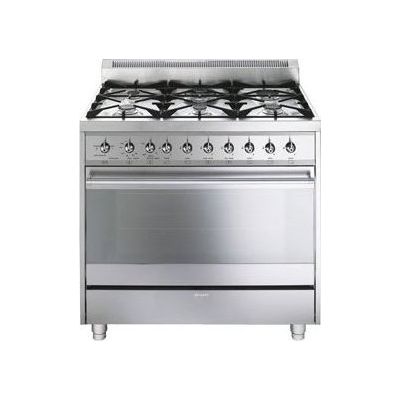

Smeg C9GGXU

discontinued

Need help finding a replacement?

John Carey
About the Smeg C9GGXU
  • 36" Freestanding Gas Range with 6 Sealed Burners Including Double Inset Super Burner
  • 4.1 cu. ft. Double Convection Oven
  • Manual Clean
  • Electronic Ignition and Storage Drawer
Brand:
Style:
Freestanding
Width:
36"
Height:
34 1/2"
Depth:
25"
Capacity:
4.1 Cu. Ft.
Burners:
6
Convection:
Yes
Self Clean:
No
Fuel Type:
Gas
Volts:
120 Volts
Amps:
15
Since 1988, Smeg has been present in Europe through its nine branches. Each one of them is strongly tied to the parent company which day by day feeds the branches with the ideas, history, and culture which make up their brand. Each branch, whilst autonomous, works in perfect harmony with the philosophy which has made Smeg's style unique. For more than 50 years, Smeg has been present in the international market with its products.

Understated lines, perfect in their simplicity - this is what makes Smeg products refined and elegant, beyond the passing fads of fashion. It is an unmistakable style, shaped by the leading architects and industrial designers in the world who have undertaken original and exclusive projects.

The engineering behind both their materials and their processes allow for the highest quality steel, which is rigorously selected, to be transformed into products which combine the highest levels of technology and design. Production, incorporating laser cutting facilities for steel, workshop at the avant-garde of mechanics, exhaustive fatigue testing of materials, and laboratories engaged constantly in research, all testify to Smeg's commitment to offer aspirational products destined to be durable and to last in time.
Key Features
  • AISI 304 stainless steel
  • Ergonomic control knobs
Oven
  • Air cooled triple glazed removable door
  • Storage compartment beneath the oven
  • Halogen oven lights
  • Oven capacity: 4.1 Cu. Ft
  • Usable oven capacity: 3.5 Cu.Ft
  • Gas broil element: 19,000 BTU
  • Gas bake element: 18,000 BTU
Rangetop
  • Heavy duty cast iron grates
  • Full width grates
  • Sealed burners
  • Automatic electronic ignition
  • Safety valves
  • LP Gas conversion kit included
  • 6 Gas burners:
  • Front right: 6,200 BTU rapid burner
  • Back right: 10,000 BTU rapid burner
  • Front center: 3,400 BTU burner
  • Back center: 6,200 BTU rapid burner
  • Front left: 3,000 (inner) + 12,000 (outer) BTU
  • double inset super burner
  • Back left: 3,400 BTU burner
  • 5" Polished stainless steel backsplash
  • Connected load (nominal power):120V- 100W
  • Amp supply required @ 120V: 1
Accessories Included:
  • 2 Baking trays, 1 Broiler rack, 2 Wire racks,
  • 1 Wok ring
Specifications
Oven
Air Cooled Triple Glazed Removable Door
Yes
Compartment
Storage
Halogen Oven Lights
Yes
Electronic Clock and Program Feature
Yes
Usable Oven Capacity
3.5 Cu. Ft.
Oven Capacity
4.1 Cu. Ft.
Gas Rangetop
Gas Burners
6
Sealed Burners
Yes
Heavy Duty Cast Iron Grates
Yes
Full Width Grates
Yes
Automatic Electronic Ignition
Yes
Safety Valves
Yes
LP Gas Conversion Kit
Included
Accessories
Baking Trays
2 Included
Broiler Rack
1 Included
Wire Racks
2 Included
Wok Ring
1 Included
Technical Details
Voltage
120 Volts
Amps
15
LP Conversion
Yes
Oven BTUs
19000
Ignition Type
Electronic
Dimensions
Height
34 1/2" Min. - 36" Max.
Depth
25"
Width
36"
Ratings
Amp Supply Required
1 @ 120V
Connected Load (Nominal Power)
120V - 100W
Broil Element
19,000 BTU
Bake Element
18,000 BTU
Back Left Burner
3,400 BTU Burner
Front Left Burner
3,000 (Inner) + 12,000 (Outer) BTU Double Inset Super Burner
Back Center Burner
6,200 BTU Rapid Burner
Front Center Burner
3,400 BTU
Back Right Burner
10,000 BTU Rapid Burner
Front Right Burner
6,200 BTU Rapid Burner
Design
AISI 304 Stainless Steel
Yes
Control Knobs
Ergonomic
Backsplash
5" Polished Stainless Steel
Oven Features
Removable Door
No
Racks
2
Interior Oven Light
Yes
Temperature Probe
No
Broiler Element Location
Top
Sabbath Mode
No
Proofing
No
Delay Bake
No
Self-Cleaning
No
Convection
Yes
Timer
No
Digital Temperature Display
No
Oven Control Type
Knobs
Primary Oven Capacity
4.1 Cu. Ft.
Burner Output
Set 3 QTY
2
Set 2 Output
10000
Set 2 QTY
1
Set 1 Output
12000
Set 1 QTY
1
Set 3 Output
6200
Set 4 QTY
2
Set 4 Output
3400
Dimensions
Interior Height
12"
Height
34 1/2"
Depth
25"
Width
36"
Appearance
Clock
No
Drawer
Storage
Viewing Window
Yes
Stainless Steel Handle
Yes
Continuous Grates
Yes
Cooktop
Sealed Burner
Color
Stainless Steel
Style
Freestanding
Fuel Type
Gas
Cooktop Features
Hot Surface Indicator Light
No
Modules Required
No
Downdraft Ventilation
No
Cooktop Control Type
Knobs
Burners / Elements
6
General
Manufacturer
Smeg
