About the Summit BIM70
- 17" Built-in Ice Maker
- 25 Lbs. Storage Capacity
- 65 Lbs. Daily Production
- Automatic Defrost
- Sliding Black Lid
Brand:
Finish:
Black
Daily Ice Production:
65 Lbs.
Ice Storage:
25 Lbs.
Type of Cubes:
Square
Yes:
Yes
Width:
16 3/4"
Height:
32 22/25"
Depth:
21 1/4"
Volts:
115 Volts
Amps:
15

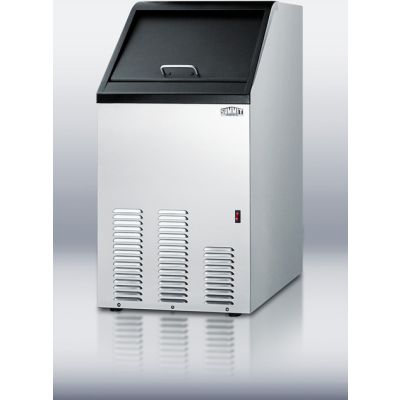

At less than 17" wide, this slim unit features a stainless steel exterior to suit any home or commercial setting, with a sliding black lid for easy access into the ice bin. The BIM70 produces up to 65 lbs. of crystal clear gourmet ice per day cycle, with an insulated storage bin that holds up to 25 lbs. at a time.
Automatic defrost ensures low maintenance operation and a bin sensor prevents an overproduction of ice if the bin is not emptied. The BIM70 is designed for drained use. An optional pump is available for purchase.
With easy-fitting dimensions and a smart design, SUMMIT BIM70 is the ideal mid-sized icemaker for restaurants, wet bars, or any setting in need of a steady supply of gourmet ice.
Key Features
Slim undercounter dimensions
- Less than 17" wide for an easy fit
Built-in capable
- Make the best use of space by installing your appliance under the counter
Fully finished stainless steel cabinet
- Allows the unit to be used freestanding
Large capacity
- Produces up to 65 lbs. of ice in a day cycle, with a 25 lb. storage bin capacity
Clear ice
- Gourmet cube ice is crystal clear, measures 1 3/8" diameter by 1 1/8" height
Overfill prevention
- Unit senses when bin is full and will automatically stop until cubes are removed
Sliding door
- Top lid is on lift-up glides for easy access to the ice bin
Automatic defrost
- No-frost system simplifies maintenance
Insulated storage bin
- Ice stays frozen longer inside this cold-protected bin
For use with drain
- Optional pump available for purchase
Ice scoop
- Ice scoop included for added convenience
100% CFC Free
- Environmentally friendly design with no ozone-damaging chemicals
BIM70 BIM70 manual
Specifications
Dimensions
Width
16 3/4 Inch
Height
32 22/25 Inch
Depth
21 1/4 Inch
Power/Ratings
Voltage/Frequency
115 V AC/60 Hz
US Electrical Safety
UL
Low Side PSI
120
High Side PSI
320
Freon Type
R134a
Freon Oz
6.88
Canadian Electrical Safety
ULC
Dimensions & Weights
Width
16 3/4"
Weight
91 lbs.
Height
32 22/25"
Depth
21 1/4"
Warranty
Compressor Warranty
5 Years
Parts/Labor Warranty
1 Year
Technical Details
Voltage
115 Volts
CEE Rating
Not Available
Approved for Outdoor Use
No
Amps
15
ADA Compliant
Yes
Energy Star Rated
No
Drain Required
Yes
Product Information
UPC
761101023069
Model
BIM70
Brand
Summit
Appearance
Undercounter
No
Type
Freestanding/Built In
Cabinet Color
Stainless Steel
Color
Black
Field Reversible Door
No
Door Color
Black
Accepts Custom Panels
No
Features
Type of Cubes
Square
Clear Ice
Yes
Ice Storage
25 Lbs.
Defrost
Automatic
Daily Ice Production
65 Lbs.
Features
Thermostat Type
Dial
Fan Type
Exterior
Door Swing
Sliding
Defrost Type
Automatic
General
Manufacturer
Summit
