About the Summit CT66BBIDPL
- 5.1 cu. ft. Capacity
- 3 Adjustable Glass Shelves
- Cycle Defrost
- Crisper Drawer
- Dual Evaporator
- Diamond Plate Door
- Zero Degree Freezer
Brand:
Hinge Side:
Right
Total Capacity:
5.1 Cu. Ft.
Width:
23 63/100"
Height:
34 3/4"
Depth:
25 63/100"
The CT66BBIDPL uses SUMMIT's own dual evaporator system to separately cool the freezer and fresh food sections. Cycle defrost helps to reduce user maintenance on the refrigerator while maintaining a zero degree freezer that keeps frozen food frozen.

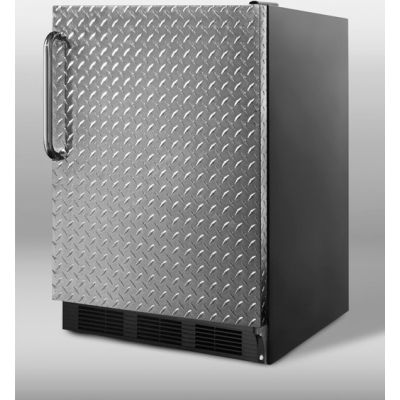

This model has a jet black cabinet and a textured diamond plate wrapped door, with a polished stainless steel handle completing the industrial look. Designed for built-in installation, it can also function freestanding. Additional features include adjustable shelves, interior lighting, a fruit and vegetable crisper, and sturdy door storage, all in a slim 24" width that fits well in limited space.
The CT66 has long proven itself to have one of the best temperature performance records in the industry. With over five cubic feet of storage capacity, this model is leader in quality, reliability, and convenience.
Key Features
Built-in capable
- Make the best use of space by installing your appliance under the counter
Fully finished black cabinet
- Allows the unit to be used freestanding
Slim undercounter dimensions
- Less than 24" wide to fit tight spaces
Diamond plate door
- Unique industrial style finish in textured aluminum
Zero degree freezer
- Keep ice cream frozen and freezer burn-free in a freezer that reaches and maintains zero degrees
Professional towel bar handle
- A curved stainless steel handle provides generous room for a comfortable grip
Cycle defrost
- Combines an automatic defrosting refrigerator with a manual defrosting freezer to save energy but protect food
Interior light
- Automatically illuminates when you open the door
Adjustable shelves
- Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup
Crisper drawer
- Get the longest life and best taste out of produce by storing greens in a bottom crisper
Door storage
- Store items right on the door for easy access
Dual evaporator
- SUMMIT's unique and efficient design separately cools the refrigerator and freezer compartment
One piece interior liner
- Easy to clean for added convenience
100% CFC Free
- Environmentally friendly design with no ozone-damaging chemicals
Manuals & Downloads
CT66BBIDPL Specification Sheet
Specifications
Appearance
Accepts Custom Panels
No
Cabinet Color
Black
Color
Stainless Look
Counter Depth
Yes
Counter-Depth
Yes
Door Color
Stainless Look
Door Finish
Textured
Field Reversible Doors
No
Freezer
Yes
Glass Door
No
Hinge Side
Right
Microfridge
No
Reversible Doors
No
Size
Compact
Style
Full
Type
Built In
Undercounter
Yes
Technical Details
ADA Compliant
No
Amps
15
Approved for Commercial Use
No
Approved for Medical Use
No
Approved for Outdoor Use
No
CEE Rating
Not Available
Energy Star Rated
No
Star-K Certified
No
Voltage
115 Volts
Refrigerator Features
Adjustable Door Bins
No
Can Dispenser
No
Cantilever Shelves
No
Clear Deli Drawer
No
Dairy Center
No
Digital Temperature Control
No
Door Lock
No
Gallon Door Storage
No
No. of Door Bins
3
No. of Shelves
3
Plastic Shelves
No
Sabbath Mode
No
Slide-out Shelves
Yes
Spill Safe Shelves
No
Split Shelves
No
Stainless Steel Shelves
No
Type of Shelves
Glass
Water Dispenser
No
Wine Bottle Holder
No
Wire Shelves
No
Product Information
Brand
AccuCold
Model
CT66BBIDPL
UPC
761101006581
Freezer Features
Defrost
Automatic
Glass Shelves
No
Ice Dispenser
No
Ice Maker
No
Quick Freeze
No
Dimensions
Depth
25 63/100 Inch
Depth with Door at 90°
45 63/100 Inch
Depth with Door at 90?
45 63/100"
Depth without Handles
23 1/2 Inch
Height
34 3/4 Inch
Height without Hinges
34 1/2 Inch
Width
23 63/100 Inch
Dimensions & Weights
Compressor Step Depth
5"
Compressor Step Height
7"
Compressor Step Width
20 1/2"
Depth
23 1/2"
Ext Depth with Handle
25 63/100"
Height
33 1/4" - 34 1/2"
Height to Hinge Cap
34 3/4"
Interior Depth
17"
Interior Freezer Depth
11 1/2"
Interior Freezer Height
5.0"
Interior Freezer Width
19"
Interior Height
19 1/2"
Interior Width
20 1/2"
Shipping Weight
148 lbs.
Width
23 63/100"
Power/Ratings
Amps
1.3
Canadian Electrical Safety
ULC
Condensor Location
Rear of Unit
Energy Usage/Year
434.0 kWh/year
Freon Oz
2.6
Freon Type
R134a
High Side PSI
285.0
Level Legs Quantity
4
Low Side PSI
70.0
US Electrical Safety
UL
Voltage/Frequency
115 V AC/60 Hz
Warranty
Compressor Warranty
5 Years
Parts/Labor Warranty
1 Year
Features
Adjustable Shelf
Yes
Capacity
5.1 cu. ft.
Crisper Cover Type
Glass
Crisper Finish
Transparent
Crisper Quantity
1
Defrost Type
Cycle
Door Swing
Right Hinge Door
Fan Type
Exterior
Full Door Shelf Quantity
3
Height Adjustable
Yes
Light
Yes
Reversible
Factory Reversible
Shelf Quantity
3
Shelf Type
Glass
Thermostat Type
Dial
Capacity
Total Capacity
5.1 Cu. Ft.
General
Manufacturer
Summit
