About the Summit CT66BDPL
- 5.1 cu. ft. Capacity
- 3 Adjustable Glass Shelves
- Cycle Defrost
- Crisper Drawer
- Dual Evaporator
- Diamond Plate Door
- Zero Degree Freezer
Brand:
Hinge Side:
Right
Total Capacity:
5.1 Cu. Ft.
Width:
23 63/100"
Height:
34 3/4"
Depth:
23 1/2"
The CT66BDPL uses SUMMIT's own dual evaporator system to separately cool the freezer and fresh food sections. Cycle defrost helps to reduce user maintenance on the refrigerator while maintaining a zero degree freezer that keeps frozen food frozen.

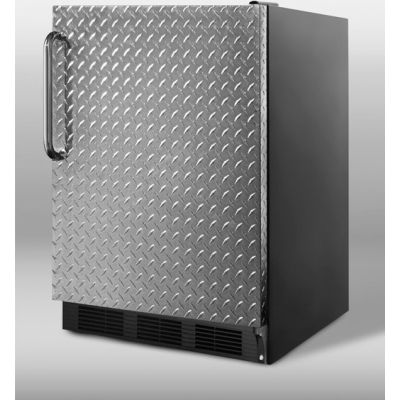

This model has a jet black cabinet and diamond plate wrapped door for an industrial look, with a stainless steel towel bar handle completing the front.. Additional features include interior lighting, a fruit and vegetable crisper, and sturdy door storage, all in a slim 24" width that fits well in limited space.
The CT66 has long proven itself to have one of the best temperature performance records in the industry. With over five cubic feet of storage capacity, this model is leader in quality, reliability, and convenience.
Key Features
Slim counter height dimensions
- Less than 24" wide to fit tight spaces
Fully finished black cabinet
- Allows the unit to be used freestanding
Diamond plate door
- Unique industrial style finish in textured aluminum
Professional towel bar handle
- A curved stainless steel handle provides generous room for a comfortable grip
Cycle defrost
- Combines an automatic defrosting refrigerator with a manual defrosting freezer to save energy but protect food
Dual evaporator
- SUMMIT's unique and efficient design separately cools the refrigerator and freezer compartment
Adjustable shelves
- Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup
Crisper drawer
- Get the longest life and best taste out of produce by storing greens in a bottom crisper
Door storage
- Store items right on the door for easy access
Interior light
- Automatically illuminates when you open the door
One piece interior liner
- Easy to clean for added convenience
100% CFC Free
- Environmentally friendly design with no ozone-damaging chemicals
Manuals & Downloads
CT66BDPL Specification Sheet
Specifications
Dimensions & Weights
Interior Freezer Depth
11 1/2"
Interior Freezer Width
19"
Interior Height
19 1/2"
Interior Depth
17"
Interior Width
20 1/2"
Height to Hinge Cap
34 3/4"
Interior Freezer Height
5.0"
Compressor Step Width
20 1/2"
Compressor Step Depth
5"
Compressor Step Height
7"
Shipping Weight
118 lbs.
Height
33 1/4" - 34 1/2"
Ext Depth with Handle
25 63/100"
Depth
23 1/2"
Width
23 63/100"
Appearance
Type
Freestanding
Style
Full
Size
Compact
Counter-Depth
Yes
Glass Door
No
Freezer
Yes
Microfridge
No
Undercounter
Yes
Hinge Side
Right
Field Reversible Doors
No
Door Finish
Textured
Accepts Custom Panels
No
Door Color
Stainless Look
Cabinet Color
Black
Reversible Doors
No
Counter Depth
Yes
Color
Stainless Look
Dimensions
Width
23 63/100 Inch
Depth
23 1/2 Inch
Depth without Handles
23 13/100 Inch
Depth with Door at 90?
45 63/100"
Height
34 3/4 Inch
Height without Hinges
34 1/2 Inch
Depth with Door at 90°
45 63/100 Inch
Capacity
Total Capacity
5.1 Cu. Ft.
Refrigerator Features
Type of Shelves
Glass
Wire Shelves
No
Plastic Shelves
No
Stainless Steel Shelves
No
No. of Shelves
3
Slide-out Shelves
Yes
Spill Safe Shelves
No
Cantilever Shelves
No
Split Shelves
No
No. of Door Bins
3
Adjustable Door Bins
No
Gallon Door Storage
No
Water Dispenser
No
Dairy Center
No
Clear Deli Drawer
No
Door Lock
No
Wine Bottle Holder
No
Can Dispenser
No
Digital Temperature Control
No
Sabbath Mode
No
Freezer Features
Glass Shelves
No
Defrost
Automatic
Ice Maker
No
Ice Dispenser
No
Quick Freeze
No
Technical Details
Energy Star Rated
No
CEE Rating
Not Available
Star-K Certified
No
ADA Compliant
No
Approved for Commercial Use
No
Approved for Medical Use
No
Approved for Outdoor Use
No
Amps
15
Voltage
115 Volts
Power/Ratings
Freon Type
R134a
Level Legs Quantity
4
High Side PSI
285.0
Freon Oz
2.6
US Electrical Safety
UL
Amps
1.3
Canadian Electrical Safety
ULC
Low Side PSI
70.0
Energy Usage/Year
434.0 kWh/year
Voltage/Frequency
115 V AC/60 Hz
Condensor Location
Rear of Unit
Product Information
Model
CT66BDPL
Brand
AccuCold
UPC
761101026671
Features
Capacity
5.1 cu. ft.
Height Adjustable
Yes
Door Swing
Right Hinge Door
Reversible
Factory Reversible
Crisper Quantity
1
Shelf Quantity
3
Adjustable Shelf
Yes
Shelf Type
Glass
Crisper Cover Type
Glass
Crisper Finish
Transparent
Full Door Shelf Quantity
3
Light
Yes
Fan Type
Exterior
Thermostat Type
Dial
Defrost Type
Cycle
Warranty
Compressor Warranty
5 Years
Parts/Labor Warranty
1 Year
General
Manufacturer
Summit
