About the Summit FS60SSVH
- Counter-Depth
- 2 Open Wire Shelves
- 3 Door Shelves
- Stainless Steel Door/Handle
- Slim Counter-Height Design
- Adjustable Thermostat
- Manual Defrost
Brand:
Capacity:
5 Cu. Ft.
Defrost:
Manual
Ice Maker:
No
Interior Light:
No
Quick Freeze:
No
Width:
22"
Depth:
22 1/4"
Height:
33 1/2"
Amps:
15
Volts:
115 Volts
Energy Star Rated:
No

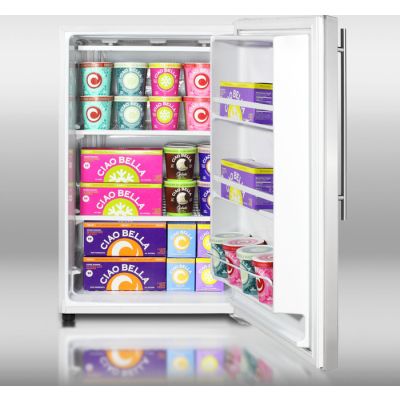

SUMMIT's FS60SSVH is an energy efficient front-opening freezer in a conveniently compact size.
Perfect for homes with extra storage needs, the FS60SSVH is one of the industry's only household freezers with a full 5 cu.ft. capacity to meet DOE energy standards. Manual defrost operation helps to conserve energy and cost while the slim 22 inch width takes up little room in any location.
Inside, the FS60SSVH has open shelves fixed for optimal cooling. Door racks add more storage options.
The white cabinet is fitted with a fully wrapped stainless steel door, with a sleek stainless steel handle completing the modern look.
Key Features
Slim counter height dimensions
- Just 22 inches wide for easy placement in any small location
Fully finished white cabinet
- Allows the unit to be used freestanding
Stainless steel door
- Durable design with lasting elegance
Professional stainless steel handle
- Thin 14mm diameter on vertical stainless steel handle
Manual defrost
- No temperature fluctuations with a manual defrost system that keeps the cold inside.
Open shelves
- Fixed shelves accommodate large items
Door shelves
- Three racks for added storage options
Adjustable thermostat
- Manage the interior temperature with ease and accuracy
100% CFC free
- Environmentally friendly design without ozone-damaging chemicals.
Specifications
Freezer Features
Wire Shelves
Yes
Type of Shelves
Wire
Defrost
Manual
Sabbath Mode
No
Quick Freeze
No
Number of Shelves
2
Interior Light
No
Ice Maker
No
Specifications:
Low Side PSI
130.0
Interior Width
18 5/8"
Interior Height
29 1/2"
Interior Depth
19"
High Side PSI
235.0
Height
33 1/2"
Full Door Shelf Quantity
3
Freon Type
R134a
Freon Oz
2.5
Energy Usage/Year
321.0 kWh/year
Door Swing
RHD
Depth
25 1/4"
Defrost Type
Manual
Condenser Location
Side of Unit
Compressor Warranty
5 Years
Parts/Labor Warranty
1 Year
Reversible
No
Width
22"
Weight
90 lbs.
US Electrical Safety
UL
Thermostat Type
Dial
Shipping Weight
95 lbs.
Shelf Type
Wire
Shelf Quantity
2
Comp Step Width
4"
Comp Step Height
7 1/2"
Comp Step Depth
18 5/8"
Capacity
5.0 cu.ft.
Amps
1.1
Dimensions
Width
22 Inch
Total Capacity
5 Cu. Ft.
Depth with door at 90°
44 1/2 Inch
Depth
22 1/4 Inch
Counter Depth
Yes
Depth with door at 90?
44 1/2"
Height
33 1/2 Inch
Technical Details
Voltage
115 Volts
Star-K Certified
No
CEE Rating
Not Available
Approved for Outdoor Use
No
Approved for Medical Use
No
Approved for Commercial Use
No
Amps
15
ADA Compliant
No
Energy Star Rated
No
Product Information
UPC
761101021812
Brand
Summit
Model #
FS60SSVH
Model
FS60SSVH
Freezer Appearance
Undercounter
Yes
Style
Upright
Cabinet Color
White
Door Color
Stainless Steel
Lock
No
Hinge Side
Right
Glass Door
No
Field Reversible Doors
No
Accepts Custom Panels
No
General
Manufacturer
Summit
