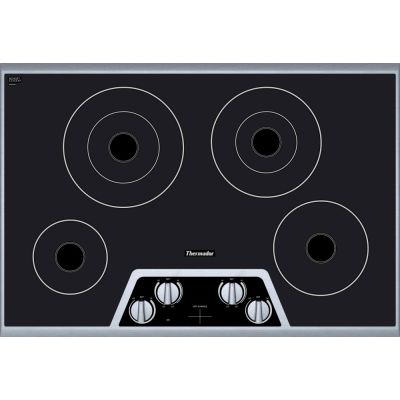

About the Thermador CEM304FS
- 4 Radiant Elements
- 2-Level Digital Control Panel
- Dual Elements
- Stainless Steel Frame
Brand:
Cooktop Type:
Cooktop
Finish:
Stainless Steel
Fuel Type:
Electric
Style:
Smoothtop
Width:
31"
Height:
3 15/16"
Depth:
21 1/4"
Cutout Width:
28 3/4"
Cutout Height:
3 15/16"
Cutout Depth:
19 7/8"
Volts:
240/208 Volts
Amps:
40
The Masterpiece Series
It's a collection of kitchen appliances like no other: a modern interpretation of classic American style combined with the legendary performance you expect from the Thermador brand. Designed with chiseled, angular surfaces to create bold and distinctive profiles, each appliance in the collection beautifully reflects the wealth of sophistication within. A Masterpiece kitchen allows you to effortlessly conquer any culinary task with unrivaled performance and style.
Manual Controls / Stainless Steel Knobs
The newly designed control panel coordinates with all Thermador Masterpiece Series appliances. Some of the features include high quality, robust metal knobs, a maximum wattage of 2,500 Watts and 6 cooking zones.
Key Features
Performance
- Dual Element offers the capability to use multiple pan sizes
Design
- Heavy-duty, high quality metal knobs
- Full stainless steel frame
- Trapezoid design control panel
Safety
- 2-level digital control panel indicates when elements are still hot
Installation Above a Wall Oven or Warming Drawer
- Thermador Masterpiece Electric Cooktops may be installed above a Thermador Single Built-in Oven as long as there is no contact between the bottom of the cooktop and the top of the oven.
- Thermador Masterpiece Electric Cooktops may also be installed above a Thermador Warming Drawer to create a convenient cooking center.
Important
- We strongly recommend the installation of a Thermador Ventilation System with all Masterpiece Electric Cooktops.
- Seal the surfaces of the cutout to make them heat resistant.
- This prevents the surfaces from expanding as a result of humidity.
- Solid surface countertops require a special cutout and installation.
- For example, heat reflective tape or rounded corners may be necessary.
Warning
- To reduce the risk of ignition of nearby combustible materials, install the countertop with a minimum distance of 2" from both side walls and the back wall.
Our Expert Video Review
CEM304FS Installation Instructions
Specifications
Technical Specifications
Minimum distance from rear wall (in)
2 3/4"
Net weight (lbs)
26
Plug type
no plug
Minimum distance from counter front (in)
2 1/4"
Alternative gas type
N/A
Amps (A)
35
Approval certificates
CSA
Frequency (Hz)
60
Gas type
N/A
Gross weight (lbs)
34
Product Features
Location of 3rd heating element
back right
Location of 4th heating element
Cooking zone front right
Location of 5th heating element
N/A
Location of 6th heating element
N/A
LP Gas Connection Rating (BTU)
N/A
Number of double grates
N/A
Number of single grates
N/A
Optional accessories
N/A
Power of 1st burner (BTU)
N/A
Location of 2nd heating element
back left
Location of 1st heating element
front left
Knob material
N/A
Dimension of 1st heating element (in)
6"
Dimension of 2nd heating element (in)
9", 6"
Dimension of 3rd heating element (in)
5", 8"
Dimension of 4th heating element (in)
7"
Dimension of 5th heating element (in)
N/A
Dimension of 6th heating element (in)
N/A
Included accessories
1 x glass scraper
Power of 1st heating element (kW in boost)
N/A
Power of 1st heating element (W)
1.2
Power of 2nd burner (BTU)
N/A
Power of 6th heating element (W)
N/A
Sealed burners
No
Type of grate
N/A
Power of 6th burner (BTU)
N/A
Power of 5th heating element (W)
N/A
Power of 5th heating element (kW in boost)
N/A
Power of 2nd heating element (kW in boost)
N/A
Power of 2nd heating element (W)
1.1 ; 2.5
Power of 3rd burner (BTU)
N/A
Power of 3rd heating element (kW in boost)
N/A
Power of 3rd heating element (W)
0.75 ; 2.2
Power of 4th burner (BTU)
N/A
Power of 4th heating element (kW in boost)
N/A
Power of 4th heating element (W)
1.8
Power of 5th burner (BTU)
N/A
Appearance
Style
Smoothtop
Surface Color
Black
Trim Color
Stainless Steel
Type
Drop-In
Color
Stainless Steel
Cooktop
Cooktop
Fuel Type
Electric
Number of Burners
4
Product Information
UPC
825225857693
Warranty Terms
2 years ? Thermador appliances includes a 2-year limited warranty covering the entire unit, including parts and labor. For full warranty details, please visit https://www.thermador.com/us/
Brand
Thermador
Model
CEM304FS
Series
Masterpiece
Technical Details
Voltage
240/208 Volts
ADA Compliant
No
Amps
40
Modules Required
No
GTIN
Function
Burners / Elements
4
Control Type
Knobs
Burners
4
Downdraft Venting
No
Hot Surface Indicator Light
Yes
Induction
No
Sabbath Mode
No
Dimensions
Cutout Depth
19 7/8 Inch
Cutout Height
3 15/16"
Cutout Width
28 3/4 Inch
Actual Depth
21 1/4 Inch
Actual Height
3 15/16 Inch
Actual Width
31 Inch
Burner Output
Burner 4 Output
1200
Burner 3 Output
1800
Burner 1 Output
2500
Burner 2 Output
2200
Griddle
No
Set 3 Output
1800
Set 3 QTY
1
Set 4 Output
1200
Set 4 QTY
1
Set 2 QTY
1
Set 2 Output
2200
Set 1 QTY
1
Grill
No
Set 1 Output
2500
General
Manufacturer
Thermador
