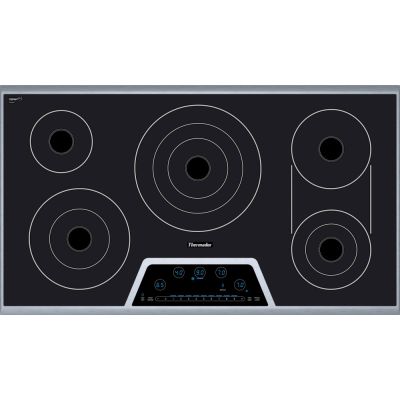

About the Thermador CET366FS
- 36" Smoothtop Electric Cooktop with 5 Radiant Elements
- Electronic Touch Controls
- Triple Element
- Bridge Element and Stainless Steel Frame
Brand:
Cooktop Type:
Cooktop
Finish:
Stainless Steel
Fuel Type:
Electric
Style:
Smoothtop
Width:
37"
Height:
3 15/16"
Depth:
21 1/4"
Cutout Width:
34 3/4"
Cutout Height:
3 15/16"
Cutout Depth:
19 7/8"
Volts:
240/208 Volts
Amps:
50
The Masterpiece Series
It's a collection of kitchen appliances like no other: a modern interpretation of classic American style combined with the legendary performance you expect from the Thermador brand. Designed with chiseled, angular surfaces to create bold and distinctive profiles, each appliance in the collection beautifully reflects the wealth of sophistication within. A Masterpiece kitchen allows you to effortlessly conquer any culinary task with unrivaled performance and style.
Touch Control/Bridge
Touch controls with blue illumination are easy to use and offer a sleek, modern design. Newly designed control panel coordinates with all Thermador Masterpiece Series appliances.
Key Features
Performance
- Dual zone bridge element accommodates oblong pans and multiple diameter sizes
- Triple element offers the capability to use multiple pan sizes
- Dual Element offers the capability to use multiple pan sizes
Design
- Touch control panel with blue light illumination offers 17 power settings
- Full stainless steel frame
- Trapezoid design control panel
Convenience
- Keep Warm function allows meals to remain ready to serve
Safety
- 2-level digital control panel indicates when elements are still hot
Installation Above a Wall Oven or Warming Drawer
- Thermador Masterpiece Electric Cooktops may be installed above a Thermador Single Built-in Oven as long as there is no contact between the bottom of the cooktop and the top of the oven.
- Thermador Masterpiece Electric Cooktops may also be installed above a Thermador Warming Drawer to create a convenient cooking center.
Important
- We strongly recommend the installation of a Thermador Ventilation System with all Masterpiece Electric Cooktops.
- Seal the surfaces of the cutout to make them heat resistant.
- This prevents the surfaces from expanding as a result of humidity.
- Solid surface countertops require a special cutout and installation.
- For example, heat reflective tape or rounded corners may be necessary.
Warning
- To reduce the risk of ignition of nearby combustible materials, install the countertop with a minimum distance of 2" from both side walls and the back wall.
Our Expert Video Review
CET366FS Design Guide
Specifications
Technical Details
Voltage
240/208 Volts
Amps
50
ADA Compliant
No
Modules Required
No
Cooktop Specifications
Left Rear Element
6" @ 1,200W
Left Front Element
6"/9" @ 1,100/2,500W
Center Element
6"/8"/12" @ 1,000/2,200/3,000 W
Right Front Element
5"/7" @ 700/1,700W
Right Rear Element
7" @ 1,700W (600 W Bridge)
Total Number of Cooktop Elements
6
Dimensions and Weights
Product Width
37"
Product Depth
21 1/4"
Minimum Distance from Rear Wall
2 3/4"
Minimum Distance from Counter Front
2 1/4"
Minimum Air Clearance
1/4"
Cutout Width
34 3/4" - 34 7/8"
Cutout Height
3 15/16"
Cutout Depth
19 7/8" - 20"
Approximate Shipping Weight
42 lbs.
Burner Output
Set 5 QTY
1
Set 5 Output
600
Set 4 QTY
1
Griddle
No
Set 4 Output
1200
Set 3 QTY
2
Set 3 Output
1700
Set 2 QTY
1
Set 2 Output
2500
Set 1 QTY
1
Set 1 Output
3000
Grill
No
Appearance
Trim Color
Stainless Steel
Surface Color
Black
Style
Smoothtop
Cooktop
Cooktop
Color
Stainless Steel
Fuel Type
Electric
Technical Information
Required Circuit Breaker
50 Amp/40 Amp
Electrical Supply
240/208V AC, 60 Hz
Conduit
38" Flexible 3-Wire
Accessories
Sensor Strips
N/A
9" Sensor Pot, 7.0 qt.
N/A
7" Sensor Pot, 3.8 qt.
N/A
6" Sensor Pot, 2.0 qt.
N/A
6" Sensor Pot, 1.4 qt.
N/A
16" Skillet for 13" Element
N/A
Function
Downdraft Venting
No
Control Type
Touch Sensor
Burners
6
Sabbath Mode
No
Induction
No
Hot Surface Indicator Light
Yes
Dimensions
Cutout Width
34 3/4"
Cutout Height
3 15/16"
Cutout Depth
19 7/8"
Actual Width
37"
Actual Height
3 15/16"
Actual Depth
21 1/4"
Specifications:
Series
Masterpiece Deluxe
General
Manufacturer
Thermador
