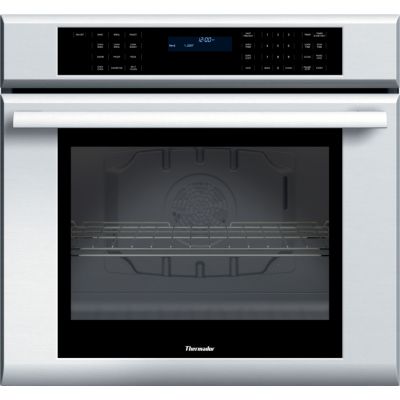

About the Thermador ME301ES
- 30" Single Electric Wall Oven with 4.7 cu. ft. True Convection Oven
- 16 Cooking Modes
- Concealed Bake Element
- Full Access Telescopic Rack and SuperFast Preheat: Stainless Steel with Masterpiece Handle
Brand:
Oven Style:
Single
Capacity:
4.7 cu. ft.
Convection:
Yes
Self Clean:
Yes
Color:
Stainless Steel
Width:
30"
Height:
29 1/16"
Cutout Width:
28 1/2"
Cutout Height:
28 1/4"
Fuel Type:
Electric
Volts:
240/208 Volts
Amps:
30
Power and Style in Perfect Harmony
The Masterpiece Series. It's a collection of built-in ovens like no other. A modern interpretation of classic American style combined with the legendary cooking performance you expect from a Thermador. Chiseled, angular surfaces create a bold and distinctive profile that beautifully reflects the wealth of sophistication within. A Masterpiece built-in oven gives you the power to conquer any culinary task with unrivaled style and grace.
The cornerstone of the passionate cook's kitchen, the Masterpiece Series single built-in oven provides 16 cooking modes, easy-to-use graphical displays and incomparable Thermador quality and design.
Key Features
Performance
- 14 advanced cooking modes
- True Convection offers precise airflow for cooking on multiple levels without flavor transfer
- Industry leading Speed Convection system reduces cooking time by 30%
- Superfast pre-heat cycle preheats in around 7 minutes
- 10-pass recessed broil element with 3,500 Watt
- CookControl temperature probe
- Advanced culinary modes - Warm, Proof and Dehydrate
- Superfast 2-hour self clean mode - fastest on the market
Design
- Chiseled Masterpiece design
- Premium glass touch control
- Striking blue text display
Capacity
- Massive Capacity - Largest oven cavity at 4.7 cu. ft.
- Six adjustable rack levels for multiple item cooking
Convenience
- Full Access telescopic rack holds up to 45 pounds
- Timer offers automatic delay start mode
- Digital indicator shows progress of preheat cycle
- EasyCook offers 20 pre-programmed recipes
- Large oven door window for maximum viewing
- Powerful halogen lighting illuminates the oven cavity
- Hidden bake element for easy cleaning
- Sabbath Mode
Wall-Mounted Installation
- Thermador 30" Single Ovens may be installed in a wall cabinet that is a minimum of 24" deep and 30" wide.
- The cabinet base must be flat and capable of supporting a weight of at least 212 lbs. (96 kg).
Under-Counter Installation
- Thermador 30" Single Ovens may be installed below a Thermador Induction, Electric or Non-professional Gas Cooktop.
- When installing below a Thermador Induction Cooktop, a minimum of 1" air gap must be maintained between the bottom of the cooktop and the top of the oven.
- An electric or non-professional Thermador Gas Cooktop can be installed above a Thermador Single Built-in Oven as long as there is no contact between the bottom of the cooktop and the top of the oven.
- Thermador Built-in Ovens are designed and approved for installation with Thermador cooktops only.
- Thermador 30" Single Ovens may also be installed above a Thermador Warming Drawer to create a convenient cooking center.
Important
- When a Thermador Oven is installed at the end of a cabinet run, adjacent to a perpendicular wall or cabinet door, it is good practice to allow at least 1/4" space between the side of the oven and the wall or door.
- For oven support, install 2x4's extending front to back flush with the bottom and the side of the opening.
- The supporting base must be well secured to the floor/cabinet and level.
- The cabinet base must be flat and capable of supporting a weight of at least 212 lbs. for a 30" single oven.
Specifications
Electrical
Required Circuit Breaker
30 Amp
Conduit
50" Flexible 4-Wire
Electrical Rating
7.3 kW @ 240V; 5.85 kW @ 208V
Electrical supply
240/208V AC, 60 Hz
Appearance
Masterpiece Handle
Yes
Masterpiece Design
Yes
Size
30"
Glass Touch Control
Yes
Blue Full-Text Display
Yes
Large Viewing Window
Yes
Dimensions & Weight
Min. Cabinet Depth
24"
Cutout Width
28 1/2"
Door Handle Projection
4 1/16"
Min. Cabinet Width
30"
Min. Base Support
212 lbs.
Approximate Shipping Weight
192 lbs.
Product Width
29 3/4"
Product Depth
23 7/8"
Product Height
29 1/16"
Door Clearance
22"
Cutout Height
28 1/4"
Trim Overlaps
13/16" Top; 1/8" Bottom; 5/8" Sides
Interior Dimensions
Overall Oven Interior Capacity (AHAM standards)
4.7 cu. ft.
Overall Oven Interior Width
25"
Usable Oven Interior Depth
17 1/4"
Usable Oven Interior Height
12 3/4"
Overall Oven Interior Depth
17 7/8"
Overall Oven Interior Height
17 7/8"
Usable Oven Interior Width
22 3/4"
Overall Oven Interior Capacity (AHAM standard
4.7 cu. ft.
General
Series
Masterpiece
Manufacturer
Thermador
Appearance
Fuel Type
Electric
Style
Single
Microwave
No
Speed Oven
No
Steam Oven
No
Color
Stainless Steel
Stainless Steel Handle
Yes
Viewing Window
Yes
Drawer
None
Clock
Digital
Dimensions
Cutout Width
28 1/2"
Cutout Depth
24"
Cutout Height
28 1/4"
Exterior Width
30"
Exterior Depth
23 7/8"
Exterior Height
29 1/16"
Oven Features
Capacity
4.7 cu. ft.
Convection
Yes
Self-Cleaning
Yes
Control Type
Touch Sensor
Broiler Element Location
Top
Delay Bake
Yes
Digital Temperature Display
Yes
Interior Oven Light
Yes
Oven Racks
1
Proofing
Yes
Removable Door
Yes
Sabbath Mode
Yes
Temperature Probe
Yes
Timer
Yes
Technical Details
Star-K Certified
Yes
ADA Compliant
No
Wattage
3500
Undercounter Installable
Yes
Amps
30
Voltage
240/208 Volts
Technical Data
Third Element Wattage
2,000
Broil Wattage
3,600
Bake Wattage
2,000
Microwave Wattage
N/A
Warming Drawer Wattage
N/A
Performance
True Convection
Yes
Speed Convection
Yes
Convection, Bake, Broil, Roast
Yes
Bake, Broil, Roast
Yes
Pizza
Yes
Proof
Yes
Warm
Yes
Dehydrate
Yes
Fast Preheat
Yes
2-Hour Self-Clean
Yes
EasyCook
Yes
Sabbath Mode
Yes
Cook Control Temperature Probe
Yes
CookSmart
N/A
10-Pass Broil Element
Yes
Fast Preheat Modes
Bake
Yes
Roast
Yes
Convection Bake
Yes
Convection Roast
Yes
True Convection
Yes
Pizza
Yes
Convenience
Timer
Yes
Panel Lock
Included
Concealed Bake Element
Included
Recessed Broil Element
Included
Self-Clean Rack Supports
Included
Full Access Telescopic Rack
1
Professional-Style Racks
2
Porcelain Broil Pan
Included
Halogen Lighting Per Cavity
3
Automatic Door Lock
Yes
Capacity
Oven Interior Capacity
4.7 Cu. Ft.
Overall Oven Interior Width
25"
Overall Oven Interior Depth
17 7/8"
Overall Oven Interior Height
17 7/8"
Usable Oven Interior Width
22 3/4"
Usable Oven Interior Depth
17 1/4"
Usable Oven Interior Height
12 3/4"
Features
Glass Touch Controls
Yes
Striking Blue Full Text Display
Yes
True Convection
Yes
Full Access Telescopic Racks
1
CookControl Temperature Probe
Yes
EasyCook
Yes
Lighting
Halogen
10-Pass Recessed Broil Element
3,500 Watts
Advanced Cooking Modes
13
Advanced Culinary Modes
Warm, Proof and Dehydrate
Fast Preheat
Yes
Automatic Delay Start Mode
Yes
Hidden Bake Element
Yes
Adjustable Rack Levels
6
Star-K Certified
Yes
Specifications
Electrical Supply
240/208V AC, 60Hz
Required Circuit Breaker
30 Amp
Conduit
50" Flexible 4-Wire
Electrical Rating
7.3 kW @ 240V; 5.85 kW @ 208V
Dimensions and Weights
Overall Width
29 3/4"
Overall Depth
23 7/8"
Overall Height
29 1/16"
Door Clearance
22"
Cutout Width
28 1/2"
Cutout Depth
24"
Cutout Height
28 1/4"
Min. Base Support
212 Lbs.
Trim Overlaps - Top
13/16"
Trim Overlaps - Bottom
1/8"
Trim Overlaps - Sides
5/8"
Shipping Weight
174 Lbs.
