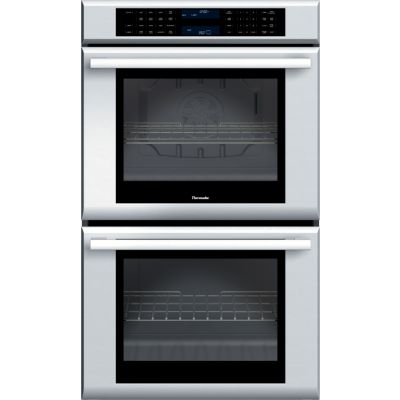

About the Thermador ME302EP
- 30" Double Electric Wall Oven with 4.7 cu. ft. True Convection Upper Oven
- Concealed Bake Element
- Touch Control Control Panel
- Full Access Telescopic Racks and SuperFast Preheat: Stainless Steel with Professional Handle
Brand:
Oven Style:
Double
Convection:
Both
Self Clean:
Both
Color:
Stainless Steel
Width:
30"
Height:
51 3/4"
Cutout Width:
28 1/2"
Cutout Height:
51 1/8"
Fuel Type:
Electric
Volts:
240/208 Volts
Amps:
40
Power and Style in Perfect Harmony
The Masterpiece Series. It's a collection of built-in ovens like no other. A modern interpretation of classic American style combined with the legendary cooking performance you expect from a Thermador. Chiseled, angular surfaces create a bold and distinctive profile that beautifully reflects the wealth of sophistication within. A Masterpiece built-in oven gives you the power to conquer any culinary task with unrivaled style and grace.
Twice the performance, beauty and capacity. The Masterpiece Series double built-in ovens come in 27" and 30" widths, empowering you to cook for even the largest gatherings with unmatched ease. Six cooking levels and Thermador's True Convection make it easy to cook several dishes simultaneously without any flavor transfer.
Key Features
Performance
- 14 Advanced cooking modes
- True Convection offers precise airflow for cooking on multiple levels without flavor transfer
- Industry leading Speed Convection system reduces cooking time by 30%
- Superfast pre-heat cycle preheats in around 7 minutes
- 10-pass recessed broil element with 3,500 Watt
- CookControl temperature probe
- Advanced culinary modes - Warm, Proof and Dehydrate
- Superfast 2-hour self clean mode - fastest on the market
Design
- Chiseled Masterpiece design
- Professional style handle
- Premium glass touch control
- Striking blue full text display
Capacity
- Massive Capacity - Largest oven cavity at 4.7 cu. ft.
- Six adjustable rack levels for multiple item cooking
Convenience
- Full Access telescopic rack holds up to 45 pounds
- Timer offers automatic delay start mode
- Digital indicator shows progress of preheat cycle
- EasyCook offers 20 pre-programmed recipes
- Large oven door window for maximum viewing
- Powerful halogen lighting illuminates the oven cavity
- Hidden bake element for easy cleaning
- Sabbath Mode
Wall-Mounted Installation
- Thermador 30" Double Ovens may be installed in a wall cabinet that is a minimum of 24" deep and 30" wide.
- The cabinet base must be flat and capable of supporting a weight of at least 390 lbs. (177 kg).
- Thermador 30" Double Ovens may also be installed above a Thermador Warming Drawer to create a convenient cooking center.
Important
- When a Thermador Oven is installed at the end of a cabinet run, adjacent to a perpendicular wall or cabinet door, it is good practice to allow at least 1/4" space between the side of the oven and the wall or door.
- For oven support, install 2x4's extending front to back flush with the bottom and the side of the opening.
- The supporting base must be well secured to the floor/cabinet and level.
- The cabinet base must be flat and capable of supporting a weight of at least 390 lbs. for a 30" single oven.
Specifications
Technical Details
ADA Compliant
No
Amps
40
Star-K Certified
Yes
Undercounter Installable
No
Voltage
240/208 Volts
Wattage
3500
Oven Features
Broiler Element Location
Top
Control Type
Touch Sensor
Convection
Both
Delay Bake
Yes
Digital Temperature Display
Yes
Interior Oven Light
Yes
Lower Capacity
4.7 cu. ft.
Lower Racks
3
Proofing
Yes
Removable Door
Yes
Sabbath Mode
Yes
Self-Cleaning
Both
Temperature Probe
Yes
Timer
Yes
Upper Capacity
4.7 cu. ft.
Upper Racks
3
Appearance
Clock
Digital
Color
Stainless Steel
Drawer
None
Fuel Type
Electric
Microwave
No
Speed Oven
No
Stainless Steel Handle
Yes
Steam Oven
No
Style
Double
Viewing Window
Yes
Dimensions
Cutout Depth
24"
Cutout Height
51 1/8"
Cutout Width
28 1/2"
Exterior Depth
23 7/8"
Exterior Height
51 3/4"
Exterior Width
30"
General
Series
Masterpiece
Manufacturer
Thermador
Capacity
Oven Interior Capacity (Per Oven)
4.7 Cu. Ft.
Overall Oven Interior Depth
17 7/8"
Overall Oven Interior Height
17 7/8"
Overall Oven Interior Width
25"
Usable Oven Interior Depth
17 1/4"
Usable Oven Interior Height
12 3/4"
Usable Oven Interior Width
22 3/4"
Dimensions & Weight
Approximate Shipping Weight
328 lbs.
Cutout Height
51 1/8"
Cutout Width
28 1/2"
Door Clearance
22"
Door Handle Projection
4 1/16"
Min. Base Support
390 lbs.
Min. Cabinet Depth
24"
Min. Cabinet Width
30"
Product Depth
23 7/8"
Product Height
51 3/4"
Product Width
29 3/4"
Trim Overlaps
5/8" Top; 1/8" Bottom; 5/8" Sides
Convenience
Automatic Door Lock
Yes
Concealed Bake Element
Yes
Full Access Telescopic Rack
1
Halogen Lighting Per Cavity
3
Panel Lock
Yes
Porcelain Broil Pan
Included
Professional-Style Racks
5
Recessed Broil Element
Yes
Self-Clean Rack Supports
Yes
Timer
Yes
Performance
10-Pass Broil Element
Upper/Lower
2-Hour Self-Clean
Upper/Lower
Bake, Broil, Roast
Upper/Lower
Convection, Bake, Broil, Roast
Upper
Cook Control Temperature Probe
Upper
CookSmart
N/A
Dehydrate
Upper
EasyCook
Upper
Fast Preheat
Upper
Pizza
Upper
Proof
Upper/Lower
Sabbath Mode
Upper/Lower
Speed Convection
Upper
True Convection
Upper
Warm
Upper/Lower
Dimensions and Weights
Cutout Depth
24"
Cutout Height
51 1/8"
Cutout Width
28 1/2"
Door Clearance
22"
Min. Base Support
390 Lbs.
Overall Depth
23 7/8"
Overall Height
51 3/4"
Overall Width
29 3/4"
Shipping Weight
302 Lbs.
Trim Overlaps - Bottom
1/8"
Trim Overlaps - Sides
5/8"
Trim Overlaps - Top
5/8"
Specifications
Conduit
50" Flexible 4-Wire
Electrical Rating
7.6 kW @ 240V; 7.6 kW @ 208V
Electrical Supply
240/208V AC, 60Hz
Required Circuit Breaker
40 Amp
Features
10-Pass Recessed Broil Element
3,500 Watts
Adjustable Rack Levels
6
Advanced Cooking Modes
13
Advanced Culinary Modes
Warm, Proof and Dehydrate
Automatic Delay Start Mode
Yes
CookControl Temperature Probe
Yes
EasyCook
Yes
Fast Preheat
Yes
Full Access Telescopic Racks
1
Glass Touch Controls
Yes
Hidden Bake Element
Yes
Lighting
Halogen
Star-K Certified
Yes
Striking Blue Full Text Display
Yes
True Convection
Upper Oven
Technical Data
Bake Wattage
2,000
Broil Wattage
3,600
Microwave Wattage
N/A
Third Element Wattage
2,000
Warming Drawer Wattage
N/A
Fast Preheat Modes
Bake
Upper
Convection Bake
Upper
Convection Roast
Upper
Pizza
Upper
Roast
Upper
True Convection
Upper
Electrical
Conduit
50" Flexible 4-Wire
Electrical Rating
8.0 kW @ 240V; 5.8 kW @ 208V
Electrical Supply
240/208V AC, 60 Hz
Required Circuit Breaker
40 Amp
Oven Interior Dimensions
Overall Oven Interior (AHAM Standards)
4.7 cu. ft. (Upper & Lower)
Overall Oven Interior Depth
17 7/8"
Overall Oven Interior Height
17 7/8"
Overall Oven Interior Width
25"
Usable Oven Interior Depth
17 1/4"
Usable Oven Interior Height
12 3/4"
Usable Oven Interior Width
22 3/4"
Appearance
Blue Full-Text Display
Yes
Glass Touch Control
Yes
Large Viewing Window
Yes
Professional Handle
Yes
Size
30"
