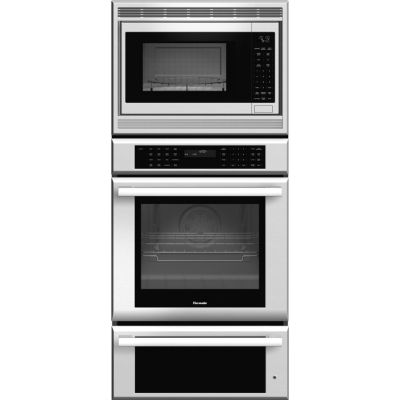

About the Thermador MEMCW271ES
- 27" Triple Combination Wall Oven with 4.2 cu. ft. Self-Clean True Convection Oven
- 1.5 cu. ft. Convection Microwave
- 1,000-Watts
- Speed Convection and Warming Drawer
Brand:
Oven Style:
Double
Capacity:
1.5 cu. ft.
Convection:
Yes
Self Clean:
Yes
Color:
Stainless Steel
Width:
27"
Height:
61 3/8"
Cutout Width:
25 1/2"
Cutout Height:
60 3/4"
Fuel Type:
Electric
Volts:
240/208 Volts
Amps:
50
Power and Style in Perfect Harmony
The Masterpiece Series. It's a collection of built-in ovens like no other. A modern interpretation of classic American style combined with the legendary cooking performance you expect from a Thermador. Chiseled, angular surfaces create a bold and distinctive profile that beautifully reflects the wealth of sophistication within. A Masterpiece built-in oven gives you the power to conquer any culinary task with unrivaled style and grace.
Create the ultimate culinary utopia with the exclusive Thermador combination oven with convection microwave and warming drawer. This versatile, convenient and performance-oriented trio gives you the powerful Thermador kitchen suite you've always dreamed of, and the ability to realize your greatest culinary ambitions.
Key Features
Oven Features
Performance
- Concealed 450-watt heating element
- Special Proof Mode
Design
- Chiseled Masterpiece design
- Premium touch control
- Blue digital display
Capacity
- Spacious 2.3 cu. ft. cavity
- Drawer has open sides for easy and convenient access
Convenience
- Warming Mode with three convenient temperature settings
- Automatic shut-off timer
- Telescopic ball-bearing rails offer smooth handling and supports up to 55 lbs.
- Glass ceramic surface for easy cleaning
- Moisture selector controls humidity level in the drawer
- Sabbath Mode
Microwave Features
Warming Drawer Features
Wall-Mounted Installation
- Thermador 27" Triple Combination Ovens may be installed in a wall cabinet that is a minimum of 24" deep and 27" wide.
- The cabinet base must be flat and capable of supporting a weight of at least 369 lbs. (167 kg).
Important
- When a Thermador Oven is installed at the end of a cabinet run, adjacent to a perpendicular wall or cabinet door, it is good practice to allow at least 1/4" space between the side of the oven and the wall or door.
- For oven support, install 2x4's extending front to back flush with the bottom and the side of the opening.
- The supporting base must be well secured to the floor/cabinet and level.
- The cabinet base must be flat and capable of supporting a weight of at least 369 lbs. for a 27" triple combination oven.
Specifications
Interior Dimensions
Microwave Interior Capacity
1.5 cu. ft.
Warming Interior Capacity
2.3 cu. ft.
Overall Oven Interior Depth
17 6/8"
Overall Oven Interior Height
17 7/8"
Usable Oven Interior Width
19 3/4"
Overall Oven Interior Capacity (AHAM Standards)
4.2 cu. ft.
Overall Oven Interior Width
22"
Usable Oven Interior Depth
17 1/8"
Usable Oven Interior Height
12 5/8"
Overall Oven Interior Capacity (AHAM Standard
4.2 cu. ft.
Electrical
Conduit
50" Flexible 4-Wire
Electrical Rating
10.5 kW @ 240V; 8.5 kW @ 208V
Electrical Supply
240/208V AC, 60 Hz
Required Circuit Breaker
50 Amp
Dimensions & Weights
Min. Cabinet Depth
24"
Cutout Width
25 1/2"
Product Depth
23 7/8"
Product Height
61 3/8"
Door Clearance
22"
Door Handle Projection
3 11/16"
Min. Cabinet Width
27"
Cutout Height
60 3/4"
Trim Overlaps
5/8" Top; 0" Bottom; 5/8" Sides
Min. Base Support
369 lbs.
Approximate Shipping Weight
314 lbs.
Product Width
26 3/4"
Appearance
Design
Masterpiece
Handle
Masterpiece
Control
Glass Touch
Display
Blue Full-Text
Large Viewing Window
Yes
General
Series
Masterpiece
Manufacturer
Thermador
Appearance
Fuel Type
Electric
Style
Double
Microwave
Yes
Color
Stainless Steel
Stainless Steel Handle
Yes
Viewing Window
Yes
Drawer
Warming
Clock
Digital
Speed Oven
No
Steam Oven
No
Dimensions
Cutout Width
25 1/2"
Cutout Depth
24"
Cutout Height
60 3/4"
Exterior Width
27"
Exterior Depth
23 7/8"
Exterior Height
61 3/8"
Oven Features
Upper Capacity
1.5 cu. ft.
Lower Capacity
4.2 cu. ft.
Convection
Yes
Self-Cleaning
Yes
Control Type
Touch Sensor
Broiler Element Location
Top
Delay Bake
Yes
Digital Temperature Display
Yes
Interior Oven Light
Yes
Lower Racks
3
Proofing
Yes
Removable Door
Yes
Sabbath Mode
Yes
Temperature Probe
Yes
Timer
Yes
Oven Racks
2
Microwave Features
Convection Oven
Yes
Capacity
1.5 cu. ft.
Watts
1000
With Turntable
Yes
Technical Details
Star-K Certified
Yes
ADA Compliant
No
Wattage
3500
Undercounter Installable
No
LP Conversion
No
Amps
50
Voltage
240/208 Volts
Performance
Microwave
Traditional
True Convection
Yes
Speed Convection
Yes
Convection Bake, Broil, Roast
Yes
Bake, Broil, Roast
Yes
Pizza
Yes
Proof
Yes
Warm
Yes
Dehydrate
Yes
Fast Preheat
Yes
2-Hour Self-Clean
Yes
Sabbath Mode
Yes
EasyCook
Yes
Cook Control Temperature Probe
Yes
Cooksmart
No
Broil Element
10-Pass
Fast Preheat Modes
Bake
Yes
Roast
Yes
Convection Bake
Yes
Convection Roast
Yes
True Convection
Yes
Pizza
Yes
Convenience
Timer
Yes
Panel Lock
Yes
Concealed Bake Element
Yes
Recessed Broil Element
Yes
Self-Clean Rack Supports
Yes
Full Access Telescopic Racks
1
Professional-Style Racks
2
Porcelain Broil Pan
Yes
Halogen Lighting per Cavity
2
Door Lock
Automatic
Technical Data
Third Element Wattage
2,000
Broil Wattage
3,600
Bake Wattage
2,000
Microwave Wattage
1,200
Warming Drawer Wattage
450
Capacity
Oven Interior Capacity
4.2 Cu. Ft.
Microwave Interior Capacity
1.5 Cu. Ft.
Warming Drawer Interior Capacity
2.3 Cu. Ft.
Overall Oven Interior Width
22"
Overall Oven Interior Depth
17 3/4"
Overall Oven Interior Height
17 7/8"
Usable Oven Interior Width
19 3/4"
Usable Oven Interior Depth
17 1/8"
Usable Oven Interior Height
12 5/8"
Oven Features
Premium Glass Touch Controls
Yes
Striking Blue Full Text Display
Yes
True Convection
Yes
Speed Convection
Yes
Telescopic Racks
2
Adjustable Rack Levels
6
CookControl Temperature Probe
Yes
EasyCook
Yes
Interior Lighting
SoftLight
Advanced Cooking Modes
13
Advanced Culinary Modes
Warm, Proof and Dehydrate
Fast Preheat
Yes
Automatic Delay Start Mode
Yes
10-Pass Recessed Broil Element
3,500 Watts
Hidden Bake Element
Yes
Star-K Certified
Yes
Microwave Features
Touch Controls
Yes
Blue Display
Yes
Ceramic Turntable
15"
Microwave Power
1,000 Watts
Power Levels
10
Convection Bake
Yes
Sensor Cooking
Yes
Sensor Reheat
Yes
Warming Drawer Features
SoftClose Drawer
Yes
Touch Control
Yes
Blue Display
Yes
Heating Modes
4 (Low, Medium, High, Proof)
Timer
Yes
Specifications
Electrical Supply
240/208V AC, 60Hz
Required Circuit Breaker
50 Amp
Conduit
50" Flexible 4-Wire
Electrical Rating
10.5 kW @ 240V; 10.5 kW @ 208V
Dimensions and Weights
Overall Width
26 3/4"
Overall Depth
23 7/8"
Overall Height
61 3/8"
Door Clearance
22"
Cutout Width
25 1/2"
Cutout Depth
24"
Cutout Height
60 3/4"
Min. Base Support
369 Lbs.
Trim Overlaps - Top
5/8"
Trim Overlaps - Bottom
0"
Trim Overlaps - Sides
5/8"
Shipping Weight
297 Lbs.
