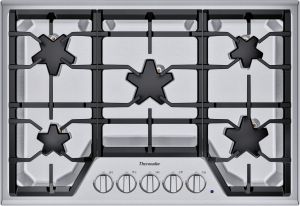

There is a newer model of this item:
Need help finding a replacement?
-
Call us at
888-714-4938
Frequently Bought Together
8 Item(s)
-
Thermador HMWN30FS Masterpiece 30" Masterpiece Wall Hood - Blowers Required$1,449.00 Save $50.00$1,399.00 -
-
Thermador UCVM30FS 30" Downdraft with 13" Riser - Optional Blowers and Recirculation Kit$1,349.00 Save $50.00$1,299.00 -
Thermador UCVM30XS 30" Convertible Downdraft - 15" Telescope, Optional Blowers$2,199.00 Save $200.00$1,999.00 -
-
About the Thermador SGS304FS
- 30" Gas Cooktop with 4 Star Burners [RETIRED]
- 16,000 BTU Main Burner, 2 x 10,000 BTU and 1 x 8,000 BTU
- Electronic Re-Ignition
- Continuous Cast Iron Grates
Brand:
Cooktop Type:
Cooktop
Finish:
Stainless Steel
Fuel Type:
Gas
Style:
Sealed Burner
Width:
31"
Height:
3 13/16"
Depth:
21 1/4"
Cutout Width:
28 15/16"
Cutout Height:
3 13/16"
Cutout Depth:
19 1/8"
Volts:
120 Volts
Amps:
15
The Masterpiece Series
It's a collection of kitchen appliances like no other: a modern interpretation of classic American style combined with the legendary performance you expect from the Thermador brand. Designed with chiseled, angular surfaces to create bold and distinctive profiles, each appliance in the collection beautifully reflects the wealth of sophistication within. A Masterpiece kitchen allows you to effortlessly conquer any culinary task with unrivaled performance and style.
The 4th generation patented Star Burner comes with 56% more flame spread than a round burner. It comes with a 16,000 BTU Max burner. It comes with a Blue indicator light for each burner. The chiseled stainless steel design matches Thermador design line. Stainless steel control panel offers a sleek, modern design. Some other features include high quality, robust metal knobs and multi-point ignition.
Key Features
Performance
- Exclusive, patented Star Burner provides superior performance
- Unique shape of the Star Burner offers wider heat coverage resulting in smaller cold spots
- Continuous grates allow pots and pans to glide smoothly across the cooktop
- Powerful 16,000 BTU burner
Design
- High-grade, quality die cast metal knobs
- Chiseled, angular design coordinates with the suite of Thermador Masterpiece Collection appliances
Safety
- Knobs feature a safety "push to turn" system
- Automatic electronic re-ignition
Installation Above a Built-in Oven or Warming Drawer
- Thermador Masterpiece Gas Coooktops may be installed above a Thermador Single Built-in Oven as long as there is no contact between the bottom of the cooktop and the top of the oven.
- Thermador Masterpiece Gas Cooktops may also be installed above a Thermador Warming Drawer to create a convenient cooking center.
Important
- We strongly recommend the installation of a Thermador Ventilation System with this gas cooktop.
- Seal the surfaces of the cutout to make them heat resistant.
- This prevents the surfaces from expanding as a result of humidity.
- Solid surface counter-tops often require special installation.
- For example, heat reflective tape or rounded corners may be necessary.
Natural Gas or LP
- Thermador Masterpiece Gas Cooktops are shipped by the factory to operate on natural gas.
- They must be converted for use with propane.
- Verify the type of gas being used at the installation site matches the type of gas used by the appliance.
- If the location/job site requires conversion from natural gas to propane (LP), order SNLPKITF.
- Field conversion must be done by qualified service personnel only.
Our Expert Video Review
SGS304FS Design Guide
Key Features
Exclusive Star Burner
Patented Pedestal Star Burner provides superior heat spread for any size pan.
Star Burners
More flame ports deliver a superior flame spread and reduced center cold spot. Faster and more even heating across any size pan enables superior precision and control.
#1 Rated Cooked
Ranked #1 cooktop by a popular consumer magazine
Specifications
Technical Details
Voltage
120 Volts
Amps
15
ADA Compliant
No
Modules Required
No
LP Conversion
Optional
Ignition Type
Electronic
Dimensions and Weight
Cutout Height
3 13/16"
Cutout Depth
19 1/8"
Approximate Shipping Weight
45 lbs.
Cutout Width
28 15/16"
Minimum Distance from Counter Front
1 7/8"
Minimum Distance from Rear Wall
3"
Product Width
31"
Product Depth
21 1/4"
Electrical and Gas Specifications
Total Natural Gas Connection Rating
44,000 BTU
Total LP Gas Connection Rating
39,200 BTU
Required Circuit Breaker
15 Amp
Power Cord
60", 3-Wire
Electrical Supply
120V AC, 60 Hz
Burner Output
Set 3 QTY
1
Set 3 Output
8000
Set 2 QTY
2
Set 2 Output
10000
Set 1 QTY
1
Set 1 Output
16000
Burner 3 Output
8000
Burner 2 Output
10000
Burner 1 Output
16000
Grill
No
Griddle
No
Product Information
UPC
825225853244
Brand
Thermador
Model
SGS304FS
Appearance
Type
Drop-In
Surface Color
Stainless Steel
Style
Sealed Burner
Number of Burners
4
Color
Stainless Steel
Continuous Grates
Yes
Cooktop
Cooktop
Fuel Type
Gas
Accessories
Wok Ring
SWOKRINGF
LP Conversion Kit
SNLPKITF
Griddle Plate
N/A
Cooktop Specifications
Right Rear Burner
8,000 BTU
Right Front Burner
16,000 BTU
Number of Gas Burners
4
Left Rear Burner
10,000 BTU
Left Front Burner
10,000 BTU
Specifications:
Series
Masterpiece [RETIRED]
Function
Sabbath Mode
No
Burners / Elements
4
Burners
4
Control Type
Knobs
Downdraft Venting
No
Dimensions
Actual Width
31 Inch
Actual Height
3 13/16 Inch
Cutout Width
28 15/16 Inch
Cutout Height
3 13/16"
Cutout Depth
19 1/8 Inch
Actual Depth
21 1/4 Inch
GTIN
EAN
0825225853244
General
Manufacturer
Thermador
