There is a newer model of this item:
Need help finding a replacement?
-
Call us at
888-714-4938
Frequently Bought Together
11 Item(s)
-
-
Thermador HMWN36FS Masterpiece Series 36" Wall Hood - Optional Blowers$1,549.00 Save $50.00$1,499.00 -
-
MCB36FS | Thermador Masterpiece 36" Wall Mount Chimney Hood, 600 CFM$1,899.00 Save $100.00$1,799.00 -
Thermador HDDW36FS Masterpiece Series 36" Wall Mount Chimney Range Hood, 600 CFM$2,549.00 Save $150.00$2,399.00 -
Thermador HMCN36FS Masterpiece Series 36" Chimney Wall Hood - Blower Options$1,799.00 Save $100.00$1,699.00 -
-

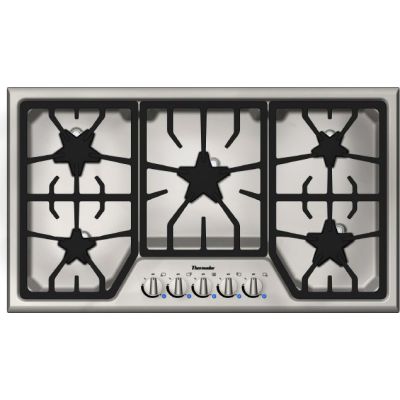

About the Thermador SGS365FS
- 36" Gas Cooktop with 5 Sealed Star Burners [RETIRED]
- 16,000 BTU Main Burner, 2 x 12,000 BTU and 2 x 9,000 BTU
- Blue Indicator Light to Display On/Off
- Coninuous Cast Iron Grates
- Stainless Steel with Metal Knobs
- 2 Year Manufacturers' Warranty
Brand:
Cooktop Type:
Cooktop
Finish:
Stainless Steel
Fuel Type:
Gas
Style:
Sealed Burner
Width:
37"
Height:
3 13/16"
Depth:
21 1/4"
Cutout Width:
34 15/16"
Cutout Height:
3 13/16"
Cutout Depth:
19 1/8"
Volts:
120 Volts
Amps:
15
The Masterpiece Series
It's a collection of kitchen appliances like no other: a modern interpretation of classic American style combined with the legendary performance you expect from the Thermador brand. Designed with chiseled, angular surfaces to create bold and distinctive profiles, each appliance in the collection beautifully reflects the wealth of sophistication within. A Masterpiece kitchen allows you to effortlessly conquer any culinary task with unrivaled performance and style.
The 4th generation patented Star Burner comes with 56% more flame spread than a round burner. It comes with a 16,000 BTU Max burner. It comes with a Blue indicator light for each burner. The chiseled stainless steel design matches Thermador design line. Stainless steel control panel offers a sleek, modern design. Some other features include high quality, robust metal knobs and multi-point ignition.
Key Features
Performance
- Powerful 16,000 BTU Center Burner
- Exclusive, patented Star Burner provides superior performance
- Continuous grates allow pots and pans to glide smoothly across the cooktop
Design
- High-grade, quality die cast metal knobs
- Chiseled, angular design coordinates with the suite of Thermador Masterpiece Collection appliances
Safety
- Knobs feature a safety "push to turn" system
- Automatic electronic re-ignition
Installation Above a Built-in Oven or Warming Drawer
- Thermador Masterpiece Gas Coooktops may be installed above a Thermador Single Built-in Oven as long as there is no contact between the bottom of the cooktop and the top of the oven.
- Thermador Masterpiece Gas Cooktops may also be installed above a Thermador Warming Drawer to create a convenient cooking center.
Important
- We strongly recommend the installation of a Thermador Ventilation System with this gas cooktop.
- Seal the surfaces of the cutout to make them heat resistant.
- This prevents the surfaces from expanding as a result of humidity.
- Solid surface counter-tops often require special installation.
- For example, heat reflective tape or rounded corners may be necessary.
Natural Gas or LP
- Thermador Masterpiece Gas Cooktops are shipped by the factory to operate on natural gas.
- They must be converted for use with propane.
- Verify the type of gas being used at the installation site matches the type of gas used by the appliance.
- If the location/job site requires conversion from natural gas to propane (LP), order SNLPKITF.
- Field conversion must be done by qualified service personnel only.
Our Expert Video Review
SGS365FS Design Guide
Key Features
Exclusive Star Burner
Patented Pedestal Star Burner provides superior heat spread for any size pan.
Star Burners
More flame ports deliver a superior flame spread and reduced center cold spot. Faster and more even heating across any size pan enables superior precision and control.
#1 Rated Cooked
Ranked #1 cooktop by a popular consumer magazine
Specifications
Technical Details
Voltage
120 Volts
Amps
15
ADA Compliant
No
Modules Required
No
LP Conversion
Optional
Ignition Type
Electronic
Dimensions and Weight
Cutout Width
34 15/16"
Cutout Height
3 13/16"
Cutout Depth
19 1/8"
Approximate Shipping Weight
51 lbs.
Minimum Distance from Counter Front
1 7/8"
Minimum Distance from Rear Wall
3"
Product Depth
21 1/4"
Product Width
37"
Electrical and Gas Specifications
Total Natural Gas Connection Rating
58,200 BTU
Total LP Gas Connection Rating
45,200 BTU
Required Circuit Breaker
15 Amp
Power Cord
60", 3-Wire
Electrical Supply
120V AC, 60 Hz
Burner Output
Set 3 QTY
2
Set 3 Output
9100
Set 2 QTY
2
Set 2 Output
12000
Set 1 QTY
1
Set 1 Output
16000
Burner 3 Output
9100
Burner 2 Output
12000
Burner 1 Output
16000
Grill
No
Griddle
No
Product Information
UPC
825225853329
Brand
Thermador
Model
SGS365FS
Appearance
Type
Drop-In
Surface Color
Stainless Steel
Style
Sealed Burner
Continuous Grates
Yes
Color
Stainless Steel
Cooktop
Cooktop
Number of Burners
5
Fuel Type
Gas
Accessories
Wok Ring
SWOKRINGF
LP Conversion Kit
SNLPKITF
Griddle Plate
SGRIDDLEF
Cooktop Specifications
Right Rear Burner
9,100 BTU
Right Front Burner
12,000 BTU
Number of Gas Burners
5
Left Rear Burner
12,000 BTU
Left Front Burner
9,100 BTU
Center Burner
16,000 BTU
Specifications:
Series
Masterpiece [RETIRED]
Function
Sabbath Mode
No
Burners / Elements
5
Burners
5
Control Type
Knobs
Downdraft Venting
No
Dimensions
Actual Width
37 Inch
Actual Height
3 13/16 Inch
Cutout Width
34 15/16 Inch
Cutout Height
3 13/16"
Cutout Depth
19 1/8 Inch
Actual Depth
21 1/4 Inch
GTIN
EAN
0825225853329
General
Manufacturer
Thermador
