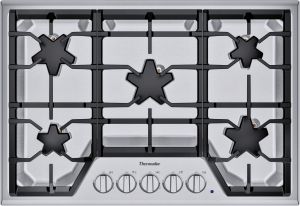

There is a newer model of this item:
Need help finding a replacement?
-
Call us at
888-714-4938
Frequently Bought Together
6 Item(s)
-
-
Thermador HMWN30FS Masterpiece 30" Masterpiece Wall Hood - Blowers Required$1,449.00 Save $50.00$1,399.00 -
Thermador UCVM30FS 30" Downdraft with 13" Riser - Optional Blowers and Recirculation Kit$1,349.00 Save $50.00$1,299.00 -

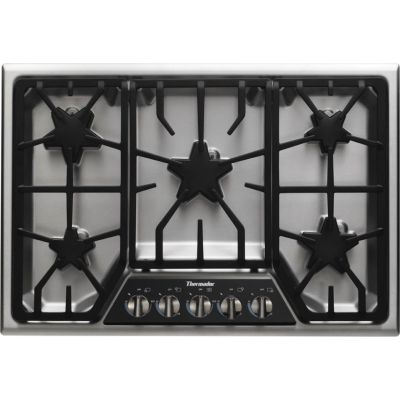

About the Thermador SGSX305FS
- 30" Gas Cooktop with 5 Star Burners [RETIRED]
- 16,000 BTU Main Burner, 2 x 10,000 BTU and 2 x 8,000 BTU
- 200 BTU Extra Low Simmer Burners
- Progressive Illuminated Control Panel
- Electronic Re-Ignition
- Continuous Cast Iron Grates
Brand:
Cooktop Type:
Cooktop
Finish:
Stainless Steel
Fuel Type:
Gas
Style:
Sealed Burner
Width:
31"
Height:
3 13/16"
Depth:
21 1/4"
Cutout Width:
28 15/16"
Cutout Height:
3 13/16"
Cutout Depth:
19 1/8"
Volts:
120 Volts
Amps:
15
The Masterpiece Series
It's a collection of kitchen appliances like no other: a modern interpretation of classic American style combined with the legendary performance you expect from the Thermador brand. Designed with chiseled, angular surfaces to create bold and distinctive profiles, each appliance in the collection beautifully reflects the wealth of sophistication within. A Masterpiece kitchen allows you to effortlessly conquer any culinary task with unrivaled performance and style.
The 4th generation patented Star Burner comes with 56% more flame spread than a round burner. It comes with a 16,000 BTU Max burner. With new blue illuminated controls, it offers progressive lighting and indicator when the cooktop is in ExtraLow mode. The ExtraLow feature provides the lowest simmering capability on the market (200 BTU). The chiseled stainless steel design matches Thermador design line. Glass and stainless steel control panel offers a sleek, modern design.
Key Features
Performance
- Most powerful 30" cooktop in the market (amongst leading manufacturers) with an overall 52,000 BTU output
- 30" - 5 burner gas cooktop provides functionality of a 36" cooktop in a compact kitchen environment
- Powerful 16,000 BTU Center Burner
- Single point ignition - only burner that is being used is ignited
- Exclusive 200 BTU ExtraLow burners for perfect simmering
- Exclusive, patented Star Burner provides superior performance
- Continuous grates allow pots and pans to glide smoothly across the cooktop
Design
- Progressive illuminated control panel with metal knobs
- High-grade, quality die cast metal knobs
- Sleek control panel features glass and stainless steel
- Chiseled, angular design coordinates with the suite of Thermador Masterpiece Collection appliances
Safety
- Knobs feature a safety "push to turn" system
- Automatic electronic re-ignition
Installation Above a Built-in Oven or Warming Drawer
- Thermador Masterpiece Gas Coooktops may be installed above a Thermador Single Built-in Oven as long as there is no contact between the bottom of the cooktop and the top of the oven.
- Thermador Masterpiece Gas Cooktops may also be installed above a Thermador Warming Drawer to create a convenient cooking center.
Important
- We strongly recommend the installation of a Thermador Ventilation System with this gas cooktop.
- Seal the surfaces of the cutout to make them heat resistant.
- This prevents the surfaces from expanding as a result of humidity.
- Solid surface counter-tops often require special installation.
- For example, heat reflective tape or rounded corners may be necessary.
Natural Gas or LP
- Thermador Masterpiece Gas Cooktops are shipped by the factory to operate on natural gas.
- They must be converted for use with propane.
- Verify the type of gas being used at the installation site matches the type of gas used by the appliance.
- If the location/job site requires conversion from natural gas to propane (LP), order SNLPKITF.
- Field conversion must be done by qualified service personnel only.
Our Expert Video Review
SGSX305FS Design Guide
Key Features
ExtraLow Simmer
This exclusive feature provides the widest variety of temperature control of any simmer system available, cycling the burner on and off to as low as 100 degrees.
Exclusive Star Burner
Patented Pedestal Star Burner provides superior heat spread for any size pan.
Star Burners
More flame ports deliver a superior flame spread and reduced center cold spot. Faster and more even heating across any size pan enables superior precision and control.
Illuminated Controls
Signature metal knobs feature blue progressive illumination that adjusts to indicate the burner setting.
ExtraLow Simmer Burners
This feature provides the widest variety of temperature control of any simmer system available, cycling the burner on and off to as low as 100 degrees. Perfect for melting chocolate or heating delicate sauces.
#1 Rated Cooked
Ranked #1 cooktop by a popular consumer magazine
Specifications
Technical Details
Voltage
120 Volts
Amps
15
ADA Compliant
No
Modules Required
No
LP Conversion
Optional
Ignition Type
Electronic
Dimensions and Weight
Cutout Width
28 15/16"
Cutout Height
3 13/16"
Cutout Depth
19 1/8"
Approximate Shipping Weight
46 lbs.
Minimum Distance from Counter Front
1 7/8"
Minimum Distance from Rear Wall
3"
Product Depth
21 1/4"
Product Width
31"
Electrical and Gas Specifications
Total Natural Gas Connection Rating
52,000 BTU
Total LP Gas Connection Rating
45,200 BTU
Required Circuit Breaker
15 Amp
Power Cord
60", 3-Wire
Electrical Supply
120V AC, 60 Hz
Burner Output
Set 3 QTY
2
Set 3 Output
8000
Set 2 QTY
2
Set 2 Output
10000
Set 1 QTY
1
Set 1 Output
16000
Burner 3 Output
8000
Burner 2 Output
10000
Burner 1 Output
16000
Grill
No
Griddle
No
Product Information
UPC
825225853312
Brand
Thermador
Model
SGSX305FS
Appearance
Type
Drop-In
Surface Color
Stainless Steel
Style
Sealed Burner
Continuous Grates
Yes
Color
Stainless Steel
Cooktop
Cooktop
Number of Burners
5
Fuel Type
Gas
Accessories
Wok Ring
SWOKRINGF
LP Conversion Kit
SNLPKITF
Griddle Plate
SGRIDDLEF
Cooktop Specifications
Right Rear Burner
8,000 BTU
Right Front Burner
10,000 BTU
Number of Gas Burners
5
Left Rear Burner
10,000 BTU
Left Front Burner
8,000 BTU
Center Burner
16,000 BTU
Specifications:
Series
Masterpiece [RETIRED]
Function
Sabbath Mode
No
Burners / Elements
5
Burners
5
Control Type
Knobs
Downdraft Venting
No
Dimensions
Actual Width
31 Inch
Actual Height
3 13/16 Inch
Cutout Width
28 15/16 Inch
Cutout Height
3 13/16"
Cutout Depth
19 1/8 Inch
Actual Depth
21 1/4 Inch
GTIN
EAN
0825225853312
General
Manufacturer
Thermador
