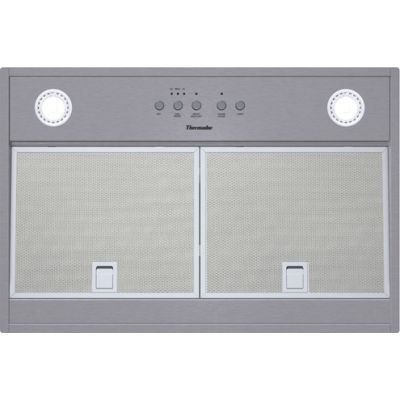

About the Thermador VCI230DS
- Remove smoke or lingering odors quickly and quietly
- Suitable for wall or island applications
- Built-in 'Clean Filter' reminder light illuminates after 40 hours of operation
- Dishwasher safe aluminum mesh filters
- 10" Round duct size
- Blowers Sold Separately
Key Features
CONCEALED VENTILATION SYSTEM
- Specially designed for professional custom hood applications to create a concealed ventilation system.
HALOGEN LIGHTS
- Halogen lights provide bright, even lighting over your entire cooking surface.
PUSH BUTTON CONTROLS
- Concealed three-speed, push-button controls are strategically located and easy to use.
BAFFLE FILTER ACCESSORY
- Order unique low-profile baffle filters separately, to maximize grease capture without affecting flow. They are also dishwasher safe for easy clean-up.
FOR USE WITHIN CUSTOM HOOD APPLICATIONS
DISHWASHER-SAFE FILTERS FEATURE A QUICK-RELEASE FILTER LATCH, MAKING CLEANING CONVENIENT AND EFFORTLESS
DUAL INLETS ALLOW FOR MORE EFFICIENT CAPTURE OF SMOKE, STEAM, AND GREASE, KEEPING YOUR KITCHEN CLEANER AND THE AIR FRESHER
REMOTE CONTROL OPTION IS AVAILABLE SEPARATELY AND OFFERS A SOPHISTICATED DESIGN ELEMENT IN YOUR KITCHEN
Blowers Available Under "Accessories" Tab
Our Expert Video Review
VCI230DS Design Guide
Specifications
GTIN
EAN
0825225850526
Performance
Power Supply
15 Amps (min.) @ 120V AC 60Hz
Electrical Motor Rating
10.2 Amps @ 120V AC 60Hz
Appearance
In-Line Blowers
VTI610D VTI1010D
Application
Professional Series Custom Hood Inserts Are Designed for Installation with All Professional-Style Cooktops and Ranges
Installation Type
Wall or Island
Size
30"
Remote Blowers
VTR630D VTR1030D VTR1330E (Requires Roof Plate for Roof Mount - 600 CFM/RFPLT600; 1000 CFM and 1300 CFM/RFPLT1000)
Filters
2
Technical Details
Voltage
120 Volts
Amps
15
Energy Star Rated
No
Dimensions
Overall Depth
18 1/2"
Overall Width
28"
Cutout Depth
17 3/4"
Cutout Width
27 1/8"
Overall Height
6 1/4"
Features
Number of Fan Speeds
3
Approved for Outdoor Use
No
Halogen Lighting
Yes
Lighting Levels
1
Speeds
3
Dishwasher Safe Filters
Yes
Product Information
UPC
825225850526
Model
VCI230DS
Brand
Thermador
General Information
Accessories
Remote Control and Low-Profile Baffle Filters
Approximate Shipping Weight
13 Lbs.
Specifications:
Series
Professional
Convenience
Lighting
Halogen (2)
Controls
Electronic Push-Button
Delayed Shut-Off
Yes
Clean Filter Reminder
Yes
Appearance
Type
Cabinet Insert
Color
Stainless Steel
Blower Type
Both
Venting Type
Ducted
Capacity
CFM
1,300 CFM
Dimensions
Height
6 1/4 Inch
Depth
18 1/2 Inch
Width
28 Inch
General
Manufacturer
Thermador
