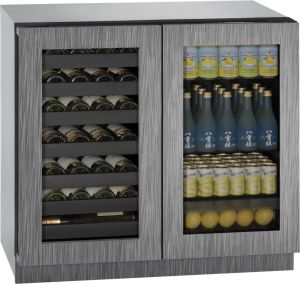

There is a newer model of this item:
Need help finding a replacement?
-
Call us at
888-714-4938

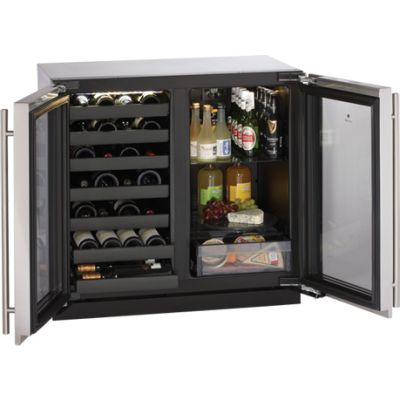

About the U-Line 3036BVWCOL00
- 36" Built-in Beverage Center
- 31 Bottle Capacity
- 127 Can (12 oz.) Capacity
- Dual Zone Convection Cooling System
- LED Theater Lighting
- Vinyl Coated Wine Racks
- Integrated OLED Display
Brand:
Width:
35 7/16"
Height:
33 11/16"
Depth:
23 7/16"
Series:
Modular 3000
Total Capacity:
7.1 Cu. Ft.
Can Capacity:
127
Wine Racks?:
Yes
The Modular 3000 Series, incorporating the U-Select Control, provides you with the ability to choose settings that correspond to the types of foods and beverages you store. With pre-programmed optimal preservation modes for specific types of food, whether meat and dairy, vegetables or spices, the U-Select Control settings allow you the flexibility to adjust temperatures to create the perfect preservation environment, keeping food fresher longer and tasting better.
Key Features
Performance
- Wine bottle capacity up to 31 bottles (.75 l)
- Digitally controlled dual-zone convection cooling system
- Refrigeration capacity of 3.6 cubic feet
- Bottle/can capacities: 60 12-oz bottles or 127 12-oz cans
- U-Select Control: Integrated OLE D display with intuitive user interface ergonomically located on top of door
- Beverage Mode: 38 ° to 65 °F
- Sparkling Wine Mode: 38 °- 50 °F
- White Wine Mode: 45 °- 55 °F
- Red Wine Mode: 55 °- 65 °F
- U-Select Control provides 4 distinct settings designed to provide precise refrigeration and maximize preservation
- Convection Cooling Technology
- Sabbath / Black-Out mode
- UL Residential Listing
Interior/Exterior
- 2 wine racks will fit larger diameter wine bottles, including Champagne bottles
- Black interior with LE D theater lighting optimizes elegant display
- Solid beech wood trimmed, full-extension black vinyl coated wine racks allow for full access to stored wines
- LowE coated, argon gas filled thermopane glass door provides protection from harmful UV rays and added insulating energy efficiency
- Robust, concealed and covered hinges with built-in door stop and closer
- Three fully adjustable tempered glass shelves with 11 positions optimize storage space for a wide variety of options
- Convenient crisper drawer comes in handy to store smaller items and keep them fresh
Integration
- Standard commercial stainless steel handle is interchangeable with professional handle option
- Adjustable toe-kick - front to back and up and down allows for seamless installation
- Front adjustable rear leveling legs greatly eases installation
- Allow a 2-1/2" clearance on hinged side for 90˚ door opening when installed adjacent to a wall (for stainless steel model)
- Allow 1/4" width overall for proper installation (see backside for details)
- No additional clearance around sides, top or rear of unit is needed for ventilation
Specifications
Features
Wine Storage
Yes
Shelves
3
Wine Racks
7
Temperature Control Type
Digital
Sabbath Mode
No
Defrost
Automatic
Lock
No
Overview
Beverage Side Capacity
79 Bottles/123 Cans
Lighting
LED Theater Lighting
Racks
7
Shelves
3
Wine Storage Side Capacity
31 Bottles
Temperature Range
34° - 70° F
Dimensions and Weight
Shipping Weight
247 Lbs.
Overall Width
35 7/16"
Overall Height
33 11/16"
Overall Depth
23 7/16"
Electrical Requirements
115V/15A
Appearance
Size
Compact
Type
Built In
Cabinet Color
Black
Glass Door
Yes
Field Reversible Doors
No
Door Color
Panel Ready
Accepts Custom Panels
Yes
Product Information
Series
Modular 3000
MPN
3036BVWCOL-00
Brand
U-Line
Model
3036BVWCOL00
Dimensions
Width
35 7/16 Inch
Total Capacity
7.1 Cu. Ft.
Can Capacity
127
Bottle Capacity
31 Bottles
Height
33 11/16 Inch
Depth
23 7/16 Inch
Technical Details
Voltage
120 Volts
Star-K Certified
No
Approved for Outdoor Use
No
Approved For Commercial Use
No
Amps
15
ADA Compliant
No
Energy Star Rated
No
Drain Required
No
