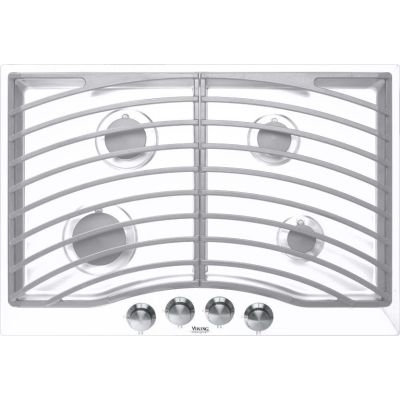

Viking DGSU1014BWHLP 30" Gas Cooktop with 4 Sealed Burners, Brass Flame Ports, Push-to-Turn Safety Feature and Automatic Re-ignition: White, Liquid Propane

discontinued

Need help finding a replacement?

John Carey
About the Viking DGSU1014BWHLP
  • 30" Gas Cooktop with 4 Sealed Burners
  • Brass Flame Ports
  • Push-to-Turn Safety Feature and Automatic Re-ignition: White
  • Liquid Propane
Viking introduced professional cooking to the home when their first range shipped in 1987. Now that same exceptional performance extends into every corner of the kitchen - even the backyard. Refrigerators. Wine Cellars. Dishwashers. Grills. Cookware. Cutlery. Small appliances. It's enough to turn any cook into a chef.

When people think of Viking, the bold, commercial look of the Professional Series range is the image that most likely pops into their heads. Ultra-premium features like high-performance burners, convection baking, and infrared broiling easily handle everything from crème brûlée to rack of lamb. The legendary Viking range is available in gas and electric models, as well as an array of sizes and finishes to fit any kitchen.

And for those who want professional performance without the professional look, there is the Designer Series. Clean lines and contours meld gracefully into cabinets with style, offering a striking new look for Viking. Fully equipped with outstanding features and power, this complete line of built-in products doesn't sacrifice any of the world-renowned Viking performance for fashion's sake. Haute couture meets haute cuisine. Available at Designer Appliances.

Viking doesn't see the kitchen as a collection of products, but a complete cooking environment. Cooking isn't a chore - it's an art form. Everything must work together in form and function. Both the Professional and Designer lines deliver the ultimate in performance with a cohesive look for the kitchen. Each line offers a full range of products, so you don't have to resort to mixing and matching brands and styles. Viking offers the truly consistent ultra-premium kitchen. The complete Viking kitchen is complete perfection.

The stylish arc of the Designer Series continuous grate cooktops allow easy movement of cookware. The cooktops feature a one-piece steel top, providing elegant curves and a seamless, easy-to-clean surface.
Key Features
**SPECIAL ORDER** Allow 8 weeks for delivery.
Commercial-Type Features
  • Sealed burners with brass flame ports and porcelainized, cast-iron burner caps.
  • Left Front - 14,000 BTU high / 2,000 BTU low.
  • Left Rear - 12,000 BTU high / 1,700 BTU low.
  • Right Rear - 8,000 BTU high / 1,200 BTU low.
  • Right Front - 6,000 BTU high / 950 BTU low.
  • Automatic electronic spark ignition/re-ignition.
  • Burners light at any position on the knob and re-light if extinguished, even at lowest setting.
Easy Operation and Cleanup
  • One-piece, extremely durable steel top.
  • Separate spill collection areas.
  • Each area holds up to 1-1/2 quarts of liquid spillover.
  • Permanently sealed burners - spills cannot enter burner box.
  • Durable, stainless steel knobs with child-proof, push-to-turn safety feature.
  • Soft-touch, slip-proof rubber grips for easy handling.
  • Customer-removable knobs, grates, and burners/caps.
  • Grate design provides continuous surface for easy movement of pots.
  • Overall/burner box dimensions designed to fit the majority of similarly sized cooktop cutouts.
Exclusive Finishes
  • Available in Stainless Steel (SS), Black (BK), and White (WH).
Warranty Highlights
  • One-year full - complete unit.
  • Five-year limited - surface burners.
  • Lifetime limited - stainless steel exterior.
  • Ninety-day limited - cosmetic parts such as glass, painted items and decorative items.
  • Warranty valid on Viking products shipped within the United States and Canada.
  • Available at Designer Appliances.
  • www.designerappliances.com
Specifications
Dimensions
Actual Depth
21"
Actual Height
4 3/8"
Actual Width
30 3/4"
Cutout Depth
19 3/4"
Cutout Width
29 1/8"
Technical Details
ADA Compliant
No
Amps
15
Ignition Type
Electronic
LP Conversion
No
Modules Required
No
Voltage
120 Volts
Function
Burners
4
Control Type
Knobs
Downdraft Venting
No
Appearance
Color
White
Continuous Grates
Yes
Cooktop
Cooktop
Fuel Type
Gas
Style
Sealed Burner
Surface Color
White
Trim Color
White
Burner Output
Griddle
No
Grill
No
Set 1 Output
14000
Set 1 QTY
1
Set 2 Output
12000
Set 2 QTY
1
Set 3 Output
8000
Set 3 QTY
1
Set 4 Output
6000
Set 4 QTY
1
General
Series
Designer
Manufacturer
Viking
Overall Dimensions
Overall Depth
21"
Overall Height
4 3/8"
Overall Width
30 3/4"
Burner Ratings
Center Burner Rating
N/A
Left Front Burner Rating
14,000 BTU Nat./13,500 BTU LP (4.1 kW/4.0 kW)
Left Rear Burner Rating
12,000 BTU Nat./11,500 BTU LP (3.5 kW/2.8 kW)
Right Front Burner Rating
6,000 BTU Nat./LP (1.8 kW)
Right Rear Burner Rating
8,000 BTU Nat./LP (2.1 kW)
Cutout Dimensions
Cutout Depth
19 3/4" to 20 1/8"
Cutout Height
3 1/8"
Cutout Width
29 1/8" to 29 7/8"
Others
Approximate Shipping Weight
49 Lbs.
Electrical Requirements
120 VAC/60 Hz; 4 Ft., 3-Wire Cord with Grounded 3-Prong Plug Attached to Product.
Gas Requirements
Uses Standard Residential 1/2" I.D. Gas Service Line.
Maximum Amp Usage
2.0 Amps
