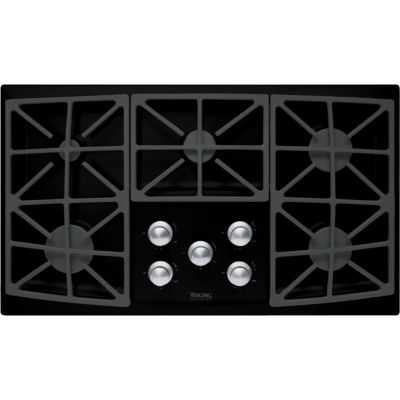

About the Viking DGVU2605BBK
- 36" Gas Cooktop with 5 Sealed Burners
- Aluminum Flame Ports
- Porcelain/Cast Iron Caps
- One-Pieced Tooled Top
- Electronic Ignition and LP Conversion Kit Included: Black
Brand:
Cooktop Type:
Cooktop
Finish:
Black
Fuel Type:
Gas
Style:
Sealed Burner
Width:
36 3/4"
Height:
4"
Depth:
21"
Cutout Width:
34 1/2"
Cutout Depth:
19"
Volts:
120 Volts
Amps:
15
A New Premium Line For A New Market
Viking Range Corporation has become an icon. As the creator of professional performance for the home, their brand identity is tied to the ultra-premium market. When consumers imagine their dream kitchen, they undoubtley picture the bold, heavy-duty Professional appliances. That is brand identity. And that is brand strength.
But Viking also wants to tap into the much larger premium market. So how does Viking enter that arena without taking the entire Viking brand down-market?
The new Viking Designer Series creates the opportunity to effectively compete in the premium market, with the freedom to adapt their brand identity to suit the premium consumer: slightly younger, slightly less affluent but still appreciates the aura and performance of Viking.
Viking Designer offers Viking performance with subtle, contemporary styling and standard sizes. More importantly, it presents lower price points without diluting the premier image of the Viking brand. The new Viking Designer Series makes sense in today's economy.
The DGVU Designer Series cooktops provide all the style and power of a Viking cooktop in a standard, replacement friendly cutout.
MFG SKU DGVU260-5BBK
Key Features
**SPECIAL ORDER** Allow 8 weeks for delivery.
NOTE: All Units Shipped As Natural Gas
- Convert using LP conversion kit included with cooktop.
- Available at Designer Appliances.
- www.designerappliances.com
Commercial-Type Cooking Power
- Gas 36" wide cooktop.
- Six sealed burners with aluminum flame ports and porcelain/cast-iron caps.
- Left front - 15,000 BTU high/1,700 BTU low.
- Left rear - 4,000 BTU high/1,000 BTU low.
- Center - 9,000 BTU high/1,300 BTU low.
- Right rear - 12,000 BTU high/1,700 BTU low.
- Right front - 12,000 BTU high/1,700 BTU low.
- Automatic electric spark ignition/re-ignition.
- Burners light at any position on the knob and re-light if extinguished, even at the lowest setting.
Easy Operation and Cleanup
- One-piece, extremely durable steel top.
- Separate spill collection areas; each area holds up to 1-1/2 quarts of liquid spillover.
- Permanently sealed burners.
- Spills cannot enter burner box.
- Durable, stainless steel knobs with child-proof, push-to-turn safety feature.
- Soft-touch, slip-proof rubber grips for easy handling.
- Customer-removable knobs, grates, and burners/caps.
- Overall/burner box dimensions designed to fit the majority of similarly sized cooktop cutouts.
Exclusive Finishes
- Available in Stainless Steel (SS), Black (BK), and White (WH)
Warranty Highlights
- One-year full - complete unit.
- Five-year limited - surface burners.
- Lifetime limited - stainless steel exterior.
- Ninety-day limited - cosmetic parts such as glass, painted items and decorative items.
- Warranty valid on Viking products shipped within the United States and Canada.
MFG SKU DGVU260-5BBK
Specifications
Technical Details
Voltage
120 Volts
Amps
15
ADA Compliant
No
Modules Required
No
LP Conversion
Yes
Ignition Type
Electronic
Dimensions
Cutout Width
34 1/2" (87.6 cm) Min. to 35" (88.9 cm) Max.
Cutout Height
2 13/16" (7.2 cm)
Cutout Depth
19" (48.3 cm) Min. to 19 5/8" (49.8 cm) Max.
Overall Depth
21" (53.5 cm)
Overall Height
4" (10.2 cm)
Overall Width
36 3/4" (93.3 cm)
Burner Output
Set 4 QTY
1
Set 4 Output
4000
Set 3 QTY
1
Set 3 Output
9000
Set 2 QTY
2
Set 2 Output
12000
Set 1 QTY
1
Set 1 Output
15000
Grill
No
Griddle
No
Appearance
Style
Sealed Burner
Continuous Grates
Yes
Color
Black
Cooktop
Cooktop
Fuel Type
Gas
Others
Maximum Amp Usage
2.0 Amps
Gas Requirements
Accepts standard residential 1/2" (1.3 cm) I.D. gas service line. Shipped natural; gas regulator and orifice spuds are supplied with the product.
Electrical Requirements
120 VAC/60 Hz; 4 Ft. (121.9 cm), 3-Wire Cord with Grounded 3-Prong Plug Attached To Product
Approx. Shipping Weight
60 Lbs. (27.0 kg)
Burner Ratings
Right Rear
12,000 Nat./LP BTU (3.5 Nat./LP kw)
Right Front
12,000 Nat./LP BTU (3.5 Nat./LP kw)
Left Front
15,000 Nat./LP BTU (4.4 Nat./LP kw)
Left Fear
4,000 Nat./LP BTU (1.0 Nat./LP kw)
Center Front/Rear
9,000 Nat./LP BTU (2.6 Nat./LP kw)
General
Series
Designer
Manufacturer
Viking
Function
Burners
5
Control Type
Knobs
Sabbath Mode
No
Hot Surface Indicator Light
No
Downdraft Venting
No
Dimensions
Actual Width
36 3/4"
Actual Height
4"
Cutout Depth
19"
Cutout Width
34 1/2"
Actual Depth
21"
