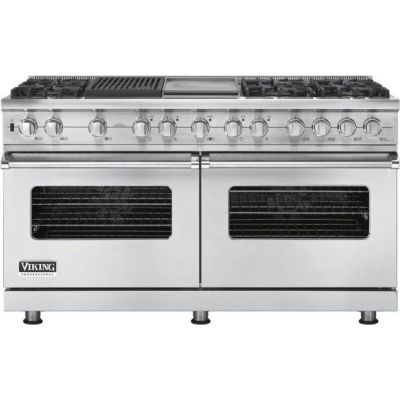

About the Viking VDSC5606GQ
- 60" Pro-Style Dual-Fuel Range with 6 VSH Pro Sealed Burners
- 4.7 cu. ft. Vari-Speed Dual Flow Convection Ovens
- Self-Clean
- Griddle/Simmer Plate and Char-Grill: Custom Colors
Brand:
Fuel Type:
Dual Fuel
Style:
Freestanding
Capacity:
4.7 cu. ft.
Burners:
6
Convection:
Yes
Self Clean:
Yes
Width:
60"
Height:
35 7/8"
Depth:
28 11/16"
Fuel Type:
Dual Fuel
Volts:
240/208 Volts
Amps:
50
When people think of Viking, the bold, commercial look of the Professional Series range is the image that most likely pops into their heads. Ultra-premium features like high-performance burners, convection baking, and infrared broiling easily handle everything from crème brûlée to rack of lamb. The legendary Viking range is available in gas and electric models, as well as an array of sizes and finishes to fit any kitchen.
And for those who want professional performance without the professional look, there is the Designer Series. Clean lines and contours meld gracefully into cabinets with style, offering a striking new look for Viking. Fully equipped with outstanding features and power, this complete line of built-in products doesn't sacrifice any of the world-renowned Viking performance for fashion's sake. Haute couture meets haute cuisine.
Viking doesn't see the kitchen as a collection of products, but a complete cooking environment. Cooking isn't a chore - it's an art form. Everything must work together in form and function. Both the Professional and Designer lines deliver the ultimate in performance with a cohesive look for the kitchen. Each line offers a full range of products, so you don't have to resort to mixing and matching brands and styles. Viking offers the truly consistent ultra-premium kitchen. The complete Viking kitchen is complete perfection. Available at Designer Appliances.
The flagship of the Custom range series, the 60" wide dual fuel model offers the ultimate in capacity, power, and performance. The 15,000 BTU gas burners are equipped with the VSH (VariSimmer-to-high) Pro Sealed Burner system, ensuring a consistent flame from the most delicate simmer to a roaring boil. The front right burner also delivers an 18,500 BTU TruPower setting. Down below, the electric self-cleaning oven boasts the largest convection fan in the industry for the perfectly even heat only real convection cooking provides.
MFG SKU VDSC560-6GQ
Key Features
**SPECIAL ORDER** Allow 8 weeks for delivery.
Commercial-Type Cooking Power
- Exclusive VSH (VariSimmer-to-high) Pro Sealed burner System.
- New! - Front right burner equipped with TruPower Plus 18,500 BTU burner.
- Burners equipped with 15,000 BTU's.
- Exclusive VariSimmer setting for all burners.
- Exclusive all burners equipped with SureSpark Ignition System for consistent and reliable ignition.
- Automatic re-ignition; surface burners light at any position on the knob and re-light if extinguished even on lowest setting.
- New! - Heavy-duty metal knobs with stainless steel finish shipped standard.
Right and Left Oven Features
- Exclusive patented Vari-Speed Dual Flow convection system has the largest convection fan in the industry.
- The 8-1/2 inch fan works bi-directionally for maximum airflow and excellent cooking results.
- Concealed 10-pass dual bake element provides precise temperature control.
- Extra large Gourmet-Glo glass enclosed infrared broiler provides superior broiling performance.
- Rapid Ready Preheat System provides one of the fastest preheat times so your oven is ready to begin cooking when you are.
- Oven has six porcelain coated rack supports and comes standard with two standard oven racks and one TruGlide full extension oven rack.
- Three strategically located oven lights provide maximum visibility.
- Heavy-duty broiler pan and tray provide more roasting and broiling options.
- High performance cooking modes include Bake, Convection Bake, TruConvec Convection Cooking, Convection Roast, Hi, Med and Low Broil, Convection Broil, and Self-Clean.
Easy Operation and Cleanup
- Exclusive - one-piece porcelainized cooking surface for easy cleanup.
- Burner caps are easily removable for quick cleaning.
- Heavy-duty, porcelainized, cast-iron removable surface grates provide continuous front-to-rear, left-to-right surface for easy movement of large pots.
- New! - one-piece control panel assembly easily removable for convenient front access to surface burner valves, switches, spark modules, and door lock assembly.
- New! - front serviceable oven electronic control board.
Griddle/Simmer Plate
- Commercial-grade, machined steel construction with Blanchard finish to retain cooking oils for stick-resistant cooking.
- Thermostatically controlled for precise temperatures.
- New! - cast aluminum grease trough holds 2-1/2 cups of liquid and can be easily removed from the front of the griddle for cleaning.
Char-Gril
- Automatic electric spark ignition/re-ignition.
- New! - porcelainized, cast-iron one-piece grate.
- Porcelainized flavor generator plates catch dripping and circulate smoke around food for outdoor grilled flavor.
- Exclusive - two-piece porcelainized drip pan can hold three quarts of liquid.
- Drip tray located beneath the burner catches any possible drippings not caught in the drip pan.
Finish Details
- Available in Stainless Steel (SS), Black (BK), White (WH), Metallic Silver (MS), Graphite Gray (GG), Stone Gray (SG), Taupe (TP), Biscuit (BT), Cotton White (CW), Oyster Gray (OG), Golden Mist (GM), Lemonade (LE),
- Sage (SA), Mint Julep (MJ), Sea Glass (SE), Iridescent Blue (IB), Viking Blue (VB), Pumpkin (PM), Racing Red (RR), Apple Red (AR), Burgundy (BU), Plum (PL), Chocolate (CH), Cobalt Blue (CB).
- May be ordered with Brass Accent Option (BR)
- Available at Designer Appliances.
- www.ajmadsion.com
MFG SKU VDSC560-6GQ
VDSC5606GQ Installation Instructions
(3 MB)
Key Features
Viking Signature Warranty
3 year full warranty
Specifications
Oven Features
Temperature Probe
No
Interior Oven Light
Yes
Racks
6
Removable Door
No
Primary Oven Capacity
4.7 cu. ft.
Secondary Oven Capacity
4.7 cu. ft.
Oven Control Type
Knobs
Digital Temperature Display
No
Timer
No
Convection
Yes
Self-Cleaning
Yes
Delay Bake
No
Proofing
No
Sabbath Mode
No
Broiler Element Location
Top
Overall Dimensions
Legs Adjust
1 1/8" (2.9 cm)
Additions to Base Height to Top of Island Trim
Add 1" (2.5 cm)
Additions to Base Height to Top of Backguard
Add 8" (20.3 cm)
Additions to Base Height to Top of High Shelf
Add 23 1/2" (59.7 cm)
Additions to Base Height to Top of Island Tri
Add 1" (2.5 cm)
Overall Height to Top of Side Trim
35 7/8" (91.1 cm) to 37" (94.0 cm)
Overall Depth To End of Door Handle
28 11/16" (72.9 cm)
Overall Depth To End of Landing Edge
28 1/16" (71.2 cm)
Overall Depth To Front of Door
25 3/4" (65.4 cm)
Overall Depth To End of Side Panel
24 5/16" (61.8 cm)
Overall Width
60" (152.4 cm)
Oven Interior Dimensions
Oven Interior Width
25 5/16" (64.6 cm)
Oven Interior Depth (AHAM)
16 13/16" (42.7 cm)
Oven Interior Depth (Overall)
19 1/2" (49.5 cm)
Oven Interior Height
16 1/2" (41.9 cm)
Oven Interior Size (AHAM)
4.1 Cu. Ft.
Oven Interior Size (Overall)
4.7 Cu. Ft.
Overall Depth - AHAM
16 13/16"
Overall Height
16 1/2"
Overall Depth
19 1/2"
Overall Width
25 5/16"
Technical Details
Star-K Certified
Yes
ADA Compliant
No
Ignition Type
Electronic
Oven Wattage
3000
LP Conversion
Optional
Amps
50
Voltage
240/208 Volts
Capacity
Right Oven Capacity
4.7 Cu. Ft.
Left Oven Capacity
4.7 Cu. Ft.
Right Oven Capacity - AHAM
4.1 Cu. Ft.
Left Oven Capacity - AHAM
4.1 Cu. Ft.
Dimensions and Weights
Overall Width
60"
Overall Depth To End Of Side Panel
24 5/16"
Overall Depth To Front Of Door
25 3/4"
Overall Depth To End Of Landing Ledge
28 1/16"
Overall Depth To End Of Door Handle
28 11/16"
Overall Height
35 7/8" - 37"
Additions To Base Height - Island Trim
Add 1"
Additions To Base Height - Backguard
Add 8"
Additions To Base Height - High Shelf
Add 23 1/2"
Approx. Shipping Weight
745.0 Lbs.
Surface Burner Ratings
TruPower Plus Burners
1 x 18,500 BTU
Brass Sealed Burners
5 x 15,000 BTU
Griddle Burner
15,000 BTU
Grill Burner
18,000 BTU
Specifications
Gas Requirements
Accepts Standard Residential 1/2" ID Gas Service Line
Gas Manifold Pressure - Natural Gas
5.0" W.C.P.
Gas Manifold Pressure - Liquid Propane
10.0" W.C.P.
Electrical Requirements
240-208 VAC, 60 Hz, 50 Amp
Max Amp Usage
240V - 40.0 Amps; 208V - 34.7 Amps
Burner Ratings
Grated Burners (Each)
15,000 BTU Nat./12,500 BTU LP (4.4 kW/3.7 kW)
TruPower Plus Burner (Front Right)
18,500 BTU Nat./16,600 BTU LP (5.4 kW/4.9 kW)
Griddle (Each)
15,000 BTU Nat./12,500 BTU LP (4.4 kW/3.7 kW)
Grill
18,000 BTU Nat./16,000 BTU LP (5.3 kW/4.7 kW)
General
Series
Professional Custom
Manufacturer
Viking
Appearance
Fuel Type
Dual Fuel
Style
Freestanding
Color
Custom Colors
Cooktop
Sealed Burner
Continuous Grates
Yes
Stainless Steel Handle
Yes
Viewing Window
Yes
Drawer
None
Clock
No
Others
Approximate Shipping Weight
745 Lbs. (335.3 kg)
Gas Manifold Pressure
Natural 5.0" W.C.P. / Liquid Propane L/P 10.0" W.C.P.
Gas Requirements
Shipped Natural Gas Standard; Convert to LP/Propane Factory Installed; Accepts Standard Residential 1/2" ID Gas Service Line
Maximum Amp Usage
240V - 40.0 Amps, 208V - 34.7 Amps
Electrical Requirements
240-208 VAC, 60 Hz Electrical Connection Box on Product, Connect with Locally Supplied 3-Wire, Flexible Cord or "Pigtail" Rated 50 Amp 125-250 VAC Minimum. Cord Must Be Agency Approved for Use with Household Electric Ranges.
Dimensions
Width
60"
Depth
28 11/16"
Height
35 7/8"
Interior Width
25 5/16"
Interior Depth
19 1/2"
Interior Height
16 1/2"
Cooktop Features
Griddle
Yes
Grill
Yes
Modules Required
No
Burners / Elements
6
Cooktop Control Type
Knobs
Downdraft Ventilation
No
Burner Output
Set 1 QTY
1
Set 1 Output
18500
Set 2 QTY
5
Set 2 Output
15000
