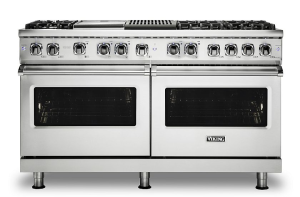

About the Viking VDSC5606GQSS
- 6 VSH Pro Sealed Burners
- VariSimmers
- 4.7 cu. ft. Vari-Speed Dual Flow Convection Ovens
- Self-Clean
- 12" Griddle
- 12" Grill
Brand:
Series:
Professional Custom
Style:
Freestanding
Width:
60"
Height:
35 7/8"
Depth:
28 11/16"
Capacity:
4.7 Cu. Ft.
Burners:
6
Convection:
Yes
Self Clean:
Yes
Griddle:
Yes
Grill:
Yes
Fuel Type:
Dual Fuel
Volts:
240/208 Volts
Amps:
50
When people think of Viking, the bold, commercial look of the Professional Series range is the image that most likely pops into their heads. Ultra-premium features like high-performance burners, convection baking, and infrared broiling easily handle everything from crème brûlée to rack of lamb. The legendary Viking range is available in gas and electric models, as well as an array of sizes and finishes to fit any kitchen.
And for those who want professional performance without the professional look, there is the Designer Series. Clean lines and contours meld gracefully into cabinets with style, offering a striking new look for Viking. Fully equipped with outstanding features and power, this complete line of built-in products doesn't sacrifice any of the world-renowned Viking performance for fashion's sake. Haute couture meets haute cuisine.
Viking doesn't see the kitchen as a collection of products, but a complete cooking environment. Cooking isn't a chore - it's an art form. Everything must work together in form and function. Both the Professional and Designer lines deliver the ultimate in performance with a cohesive look for the kitchen. Each line offers a full range of products, so you don't have to resort to mixing and matching brands and styles. Viking offers the truly consistent ultra-premium kitchen. The complete Viking kitchen is complete perfection. Available at Designer Appliances.
The flagship of the Custom range series, the 60" wide dual fuel model offers the ultimate in capacity, power, and performance. The 15,000 BTU gas burners are equipped with the VSH (VariSimmer-to-high) Pro Sealed Burner system, ensuring a consistent flame from the most delicate simmer to a roaring boil. The front right burner also delivers an 18,500 BTU TruPower setting. Down below, the electric self-cleaning oven boasts the largest convection fan in the industry for the perfectly even heat only real convection cooking provides.
MFG SKU VDSC560-6GQSS
Key Features
Commercial-Type Cooking Power
- Exclusive VSH (VariSimmer-to-high) Pro Sealed burner System.
- New! - Front right burner equipped with TruPower Plus 18,500 BTU burner.
- Burners equipped with 15,000 BTU's.
- Exclusive VariSimmer setting for all burners.
- Exclusive all burners equipped with SureSpark Ignition System for consistent and reliable ignition.
- Automatic re-ignition; surface burners light at any position on the knob and re-light if extinguished even on lowest setting.
- New! - Heavy-duty metal knobs with stainless steel finish shipped standard.
Right and Left Oven Features
- Exclusive patented Vari-Speed Dual Flow convection system has the largest convection fan in the industry.
- The 8-1/2 inch fan works bi-directionally for maximum airflow and excellent cooking results.
- Concealed 10-pass dual bake element provides precise temperature control.
- Extra large Gourmet-Glo glass enclosed infrared broiler provides superior broiling performance.
- Rapid Ready Preheat System provides one of the fastest preheat times so your oven is ready to begin cooking when you are.
- Oven has six porcelain coated rack supports and comes standard with two standard oven racks and one TruGlide full extension oven rack.
- Three strategically located oven lights provide maximum visibility.
- Heavy-duty broiler pan and tray provide more roasting and broiling options.
- High performance cooking modes include Bake, Convection Bake, TruConvec Convection Cooking, Convection Roast, Hi, Med and Low Broil, Convection Broil, and Self-Clean.
Easy Operation and Cleanup
- Exclusive - one-piece porcelainized cooking surface for easy cleanup.
- Burner caps are easily removable for quick cleaning.
- Heavy-duty, porcelainized, cast-iron removable surface grates provide continuous front-to-rear, left-to-right surface for easy movement of large pots.
- New! - one-piece control panel assembly easily removable for convenient front access to surface burner valves, switches, spark modules, and door lock assembly.
- New! - front serviceable oven electronic control board.
Griddle/Simmer Plate
- Commercial-grade, machined steel construction with Blanchard finish to retain cooking oils for stick-resistant cooking.
- Thermostatically controlled for precise temperatures.
- New! - cast aluminum grease trough holds 2-1/2 cups of liquid and can be easily removed from the front of the griddle for cleaning.
Char-Gril
- Automatic electric spark ignition/re-ignition.
- New! - porcelainized, cast-iron one-piece grate.
- Porcelainized flavor generator plates catch dripping and circulate smoke around food for outdoor grilled flavor.
- Exclusive - two-piece porcelainized drip pan can hold three quarts of liquid.
- Drip tray located beneath the burner catches any possible drippings not caught in the drip pan.
Finish Details
- Available in Stainless Steel (SS), Black (BK), White (WH), Metallic Silver (MS), Graphite Gray (GG), Stone Gray (SG), Taupe (TP), Biscuit (BT), Cotton White (CW), Oyster Gray (OG), Golden Mist (GM), Lemonade (LE),
- Sage (SA), Mint Julep (MJ), Sea Glass (SE), Iridescent Blue (IB), Viking Blue (VB), Pumpkin (PM), Racing Red (RR), Apple Red (AR), Burgundy (BU), Plum (PL), Chocolate (CH), Cobalt Blue (CB).
- May be ordered with Brass Accent Option (BR)
- Available at Designer Appliances.
- www.ajmadsion.com
MFG SKU VDSC560-6GQSS
Our Expert Video Review
Exclusive Video Review Viking Ranges [Exclusive In-Depth Review]
VDSC5606GQSS Installation Instructions (4 MB)
Key Features
Self Clean
Self clean feature thoroughly cleanses the oven so you don't have to.
Concealed Bake Element
The concealed 10-pass bake feature allows for quick and easy baking and cleaning.
SureSpark Ignition System
This exclusive electric burner system automatically ignites and re-ignites surface burners when extinguished.
VariSimmer
This special simmer feature allows for precise maintenance of low cooking temperatures for delicate sauces.
Rapid Ready Preheat
This preheat feature allows for less waiting and more cooking, due to the quick preheat technology that prepares the oven for use.
Char Grill
Automatic electric spark ignition and re-ignition char grill that captures grease and smoke to produce an authentic grill flavor and easy to clean process.
Griddle
Electric griddle with a steel design captures cooking oils for easy to clean, non-stick cooking.
Viking Signature Warranty
3 year full warranty
Specifications
Oven Features
Sabbath Mode
No
Secondary Oven Capacity
4.7 Cu. Ft.
Self-Cleaning
Yes
Temperature Probe
No
Timer
No
Removable Door
No
Convection
Yes
Delay Bake
No
Digital Temperature Display
No
Double Oven
Yes
Broiler Element Location
Top
Broiler Pan Included
Yes
Oven Control Type
Knobs
Primary Oven Capacity
4.7 Cu. Ft.
Proof Mode
No
Proofing
No
Interior Oven Light
Yes
Racks
6
Dimensions and Weights
Additions To Base Height - Backguard:
Add 8"
Additions To Base Height - High Shelf:
Add 23 1/2"
Additions To Base Height - Island Trim:
Add 1"
Approx. Shipping Weight:
745.0 Lbs.
Overall Depth To End Of Door Handle:
28 11/16"
Overall Depth To End Of Landing Ledge:
28 1/16"
Overall Depth To End Of Side Panel:
24 5/16"
Overall Depth To Front Of Door:
25 3/4"
Overall Height:
35 7/8" - 37"
Overall Width:
60"
Capacity
Right Oven Capacity:
4.7 Cu. Ft.
Right Oven Capacity - AHAM:
4.1 Cu. Ft.
Left Oven Capacity - AHAM:
4.1 Cu. Ft.
Left Oven Capacity:
4.7 Cu. Ft.
Product Information
Series
Professional Custom
Brand
Viking
Model
VDSC5606GQSS
MPN
VDSC560-6GQSS
Burner Output
Set 1 Output
18500
Set 1 QTY
1
Set 2 Output
15000
Set 2 QTY
5
Burner 1 Output
18500
Burner 2 Output
15000
Specifications
Electrical Requirements:
240-208 VAC, 60 Hz, 50 Amp
Gas Manifold Pressure - Liquid Propane:
10.0" W.C.P.
Gas Manifold Pressure - Natural Gas:
5.0" W.C.P.
Gas Requirements:
Accepts Standard Residential 1/2" ID Gas Service Line
Max Amp Usage:
240V - 40.0 Amps; 208V - 34.7 Amps
Surface Burner Ratings
TruPower Plus Burners:
1 x 18,500 BTU
Grill Burner:
18,000 BTU
Griddle Burner:
15,000 BTU
Brass Sealed Burners:
5 x 15,000 BTU
Appearance
Stainless Steel Handle
Yes
Style
Freestanding
Viewing Window
Yes
Color
Stainless Steel
Continuous Grates
Yes
Cooktop
Sealed Burner
Clock
No
Drawer
None
Fuel Subtype
Natural Gas
Fuel Type
Dual Fuel
Technical Details
Star-K Certified
Yes
Voltage
240/208 Volts
ADA Compliant
No
Amps
50
Oven Wattage
3000
LP Conversion
Optional
Ignition Type
Electronic
GTIN
UPC
VDR5606GQSS
Oven Interior Dimensions
Overall Depth - AHAM:
16 13/16"
Overall Depth:
19 1/2"
Overall Height:
16 1/2"
Overall Width:
25 5/16"
Dimensions
Width
60 Inch
Depth
28 11/16 Inch
Interior Width
25 5/16 Inch
Height
35 7/8 Inch
Interior Depth
19 1/2 Inch
Interior Height
16 1/2 Inch
Cooktop Features
Cooktop Control Type
Knobs
Burners / Elements
6
Downdraft Ventilation
No
Modules Required
No
Griddle
Yes
Grill
Yes
Capacity
Number of Burners
6
General
Manufacturer
Viking
