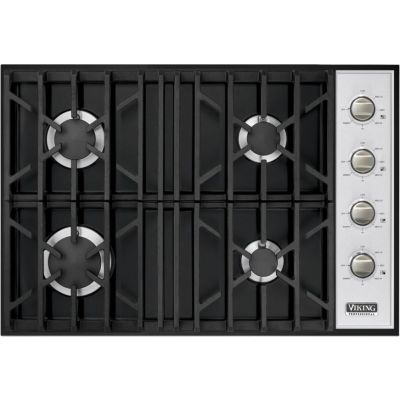

About the Viking VGSU1044BBK
- 30" Gas Cooktop with 4 Sealed Burners
- Brass Flame Ports
- Push-to-Turn Safety Feature and Automatic Re-ignition: Black
- Natural Gas
Brand:
Cooktop Type:
Cooktop
Finish:
Black
Fuel Type:
Gas
Style:
Sealed Burner
Width:
30 3/4"
Height:
5"
Depth:
21"
Cutout Width:
26 7/8"
Cutout Depth:
18 5/8"
Volts:
120 Volts
Amps:
15
When people think of Viking, the bold, commercial look of the Professional Series range is the image that most likely pops into their heads. Ultra-premium features like high-performance burners, convection baking, and infrared broiling easily handle everything from crème brûlée to rack of lamb. The legendary Viking range is available in gas and electric models, as well as an array of sizes and finishes to fit any kitchen. Available at Designer Appliances.
And for those who want professional performance without the professional look, there is the Designer Series. Clean lines and contours meld gracefully into cabinets with style, offering a striking new look for Viking. Fully equipped with outstanding features and power, this complete line of built-in products doesn't sacrifice any of the world-renowned Viking performance for fashion's sake. Haute couture meets haute cuisine.
Viking doesn't see the kitchen as a collection of products, but a complete cooking environment. Cooking isn't a chore - it's an art form. Everything must work together in form and function. Both the Professional and Designer lines deliver the ultimate in performance with a cohesive look for the kitchen. Each line offers a full range of products, so you don't have to resort to mixing and matching brands and styles. Viking offers the truly consistent ultra-premium kitchen. The complete Viking kitchen is complete perfection.
Designed to fit the majority of similarly sized cooktop cutouts. These models make it simple to replace old cooktops with Viking commercial power.
Key Features
**SPECIAL ORDER** Allow 8 weeks for delivery.
Commercial-Type Cooking Power
- Gas 30" wide cooktop.
- Four sealed burners with brass flame ports and porcelain/cast-iron caps.
- Left front - 16,000 BTU high / 3,400 BTU low.
- Left rear - 12,000 BTU high / 1,700 BTU low.
- Right rear - 8,000 BTU high / 1,200 BTU low.
- Right front - 6,000 BTU high / 950 BTU low.
- Available at Designer Appliances.
- www.designerappliances.com
- Automatic electric spark ignition/re-ignition.
- Burners light at any position on the knob and re-light if extinguished, even at the lowest setting.
Safe, Easy Operation
- Metal knobs with childproof, push-to-turn safety feature.
- Automatic electric spark ignition - no standing pilot to re-light, waste energy, or add extra heat to the kitchen.
- Heavy-duty, porcelainized, cast-iron, removable burner grates.
- Provides virtually continuous front-to-rear, left-to-right surface for easy movement of large pots.
Easy Maintenance and Cleanup
- Customer-removable knobs, grates, and burner ports/caps.
- Permanently sealed burners - spills cannot enter burner box.
- Two separate 3-1/2 cup spill-collection areas.
Replaces Most Ordinary Cooktops
- Overall/burner box dimensions designed to fit virtually all 30" wide cooktop cutouts.
Exclusive Finishes
- Available in Stainless Steel (SS) and Black (BK), featuring black grates, caps and knobs, or White (WH), featuring dark gray grates, caps and white knobs.
- Control panel on all finishes is stainless steel.
- May be ordered with Brass Accent Option (BR) for nameplate and knob bezels.
- All brass components have a durable protective coating for maintenance-free normal use.
Warranty Highlights
- One-year full - complete unit.
- Lifetime limited - stainless steel exterior.
- Five-year limited - surface burners.
- Ninety-day limited - cosmetic parts such as glass, painted items and decorative items.
- Warranty valid on Viking products shipped within the United States and Canada.
Specifications
Technical Details
Voltage
120 Volts
Star-K Certified
No
Amps
15
ADA Compliant
No
Modules Required
No
LP Conversion
No
Ignition Type
Electronic
Burner Ratings
Left Front Burner Rating
16,000 BTU Nat./15,500 BTU LP (4.8 kW/4.65 kW)
Center Front/Rear Burner Rating
N/A
Left Rear Burner Rating
12,000 BTU Nat./11,500 BTU LP (3.6 kW/3.45 kW)
Right Front Burner Rating
6,000 BTU Nat./5,500 BTU LP (1.8 kW/1.65 kW)
Right Rear Burner Rating
8,000 BTU Nat./7,500 BTU LP (2.4 kW/2.25 kW)
Overall Dimensions
Overall Width
30 3/4"
Overall Height from Bottom
5"
Overall Depth from Rear
21"
Burner Output
Set 4 QTY
1
Set 4 Output
6000
Set 3 QTY
1
Set 3 Output
8000
Set 2 QTY
1
Set 2 Output
12000
Set 1 QTY
1
Set 1 Output
16000
Grill
No
Griddle
No
Appearance
Surface Color
Black
Style
Sealed Burner
Continuous Grates
Yes
Color
Black
Cooktop
Cooktop
Fuel Type
Gas
Others
Maximum Amp Usage
2.0 Amps
Gas Requirements
Uses Standard Residential 1/2" (1.3 cm) I.D. Gas Service Line.
Electrical Requirements
120 VAC/60 Hz; 4 Ft. (121.9 cm), 3-Wire Cord with Grounded 3-Prong Plug Attached to Product.
Approximate Shipping Weight
67 Lbs.
Cutout Dimensions
Cutout Width
26 7/8" to 29 7/8"
Cutout Height
2 1/2"
Cutout Depth
18 5/8" to 20 1/8"
Function
Burners
4
Control Type
Knobs
Sabbath Mode
No
Downdraft Venting
No
Dimensions
Actual Width
30 3/4"
Actual Height
5"
Cutout Depth
18 5/8"
Cutout Width
26 7/8"
Actual Depth
21"
General
Series
Professional
Manufacturer
Viking
