discontinued
There is a newer model of this item:
Need help finding a replacement?
-
Call us at
888-714-4938
Accessories
3 Item(s)
About the Whirlpool RY160LXTQ
- Accessories
- Description
- Specifications
- Features
- Info & Guides
- Reviews
Brand:
Style:
Slide-In
Width:
30"
Height:
36"
Depth:
28 5/8"
Capacity:
4.3 Cu. Ft.
Burners:
4
Convection:
No
Self Clean:
Yes
Griddle:
No
Grill:
No
Fuel Type:
Electric
Volts:
240/208 Volts
Amps:
40
Enhance every home you build with stylish, innovative appliances that home buyers demand. Home buyers expect appliances that meet the needs of their everyday lives, are easy to use and reflect the style of their individual tastes. But, to provide appliances customers will truly appreciate and will use for years to come, requires a higher level of commitment. Their commitment to quality, craftsmanship and style challenges them to design products that lead the industry in innovation and design.

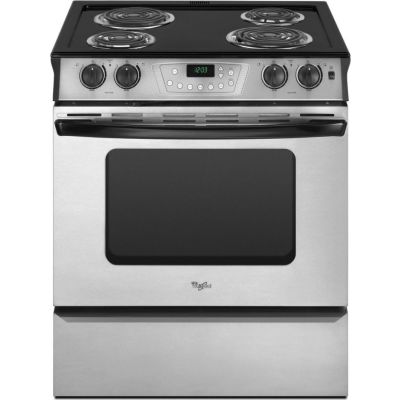

This slide-in range offers classic cooking performance. 4 coil elements, (2) 6 in. and (2) 8 in., provide the surface heat you need to cook your favorites. In the oven, 2 racks and 5 rack positions accommodate your bakeware with ease. Utilize the Keep Warm mode to maintain temperatures in dishes that are complete. For added ease, this oven is self-cleaning and offers a Delay Clean option. At the bottom, a storage drawer holds excess pans.
Key Features
- Slide-In Design - Look of a Built-In Oven
- 4.3 Cu. Ft. Capacity
- (2) 8 in. Coil Elements
- (2) 6 in. Coil Elements
- Self-Clean System with Soil Level/Time Selections
- Adjustable Keep Warm Setting
- Cook & Hold Setting
- Chrome Drip Bowls
- Storage Drawer
- 2 Oven Racks with 5 Guides
RY160LXTQ Dimension Guide
Specifications
Style and Extras
Selections
Frozen Bake; Keep Warm Setting; Cook Time; Delay Start; Rapid Preheat; Control Lock; Bake; AquaLift Self Clean; Broil
UL
Yes
ADA Compliant
ADA Height and Operation Compliant
Drawer Type
Storage Drawer
Handle Material
Metal
Cooktop Features
Right Front Element-Burner Power
2,150 Watts
Right Front Element-Burner Size
8"
Right Front Element-Burner Type
Coil
Right Rear Element-Burner Power
1,250 Watts
Right Rear Element-Burner Size
6"
Right Rear Element-Burner Type
Coil
Size
30"
Number of Cooking Element-Burners
4
Left Rear Element-Burner Type
Coil
Cooktop Element Style
Coil
Cooktop Surface Color
Black
Cooktop Surface Material
Porcelain Coated Steel
Fuel Type
Electric
Left Front Element-Burner Power
1,250 Watts
Left Front Element-Burner Size
6"
Left Front Element-Burner Type
Coil
Left Rear Element-Burner Power
2,150 Watts
Left Rear Element-Burner Size
8"
Dimensions and Electrical Requirements
Amps
40
Gross Weight
180 Lbs.
Height
36"
Volts
240
Width
29 7/8"
Oven Features
Automatic Convection Conversion Temperature Adjust
No
Oven Rack Type
1 Standard, 1 Max Capacity
Power On Indicator Light
Yes
Number of Rack Guides
7
Number of Oven Racks
2
Bake Element Power
3,600 Watts at 240 Volts
Broiler Element Power
4,000 Watts
Broiler Location
Top of Oven
Convection Element Type
None
Convection Functions
No
Heating Element On Indicator Light
Yes
Hidden Bake Element
Yes
Hot Surface Indicator Light
No
Light Type
Incandescent
Number of Oven Lights
1
Appearance
Stainless Steel Handle
No
Style
Slide-In
Viewing Window
Yes
Continuous Grates
No
Cooktop
Coil
Drawer
Storage
Fuel Type
Electric
Color
White
Clock
Yes
Technical Details
Star-K Certified
Yes
Voltage
240/208 Volts
ADA Compliant
Yes
Amps
40
LP Conversion
No
Oven Wattage
2,400
Oven Features
Temperature Probe
No
Timer
No
Convection
No
Delay Bake
No
Digital Temperature Display
Yes
Broiler Element Location
Top
Broiler Pan Included
No
Racks
2
Removable Door
No
Sabbath Mode
No
Self-Cleaning
Yes
Proofing
No
Proof Mode
No
Interior Oven Light
Yes
Oven Control Type
Digital
Primary Oven Capacity
4.3 Cu. Ft.
Product Information
UPC
883049065120
Brand
Whirlpool
Model
RY160LXTQ
Dimensions
Width
30 Inch
Depth
28 5/8 Inch
Height
36 Inch
Cooktop Features
Cooktop Control Type
Knobs
Downdraft Ventilation
No
Burners / Elements
4
Griddle
No
Grill
No
Hot Surface Indicator Light
No
Induction
No
Modules Required
No
Burner Output
Burner 1 Output
2100
Burner 2 Output
1250
Set 1 Output
2100
Set 1 QTY
2
Set 2 Output
1250
Set 2 QTY
2
Capacity
Number of Burners
4
General
Manufacturer
Whirlpool
