discontinued

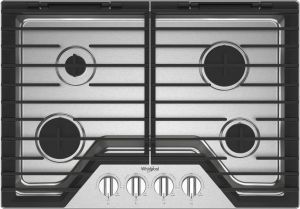

There is a newer model of this item:
Need help finding a replacement?
-
Call us at
888-714-4938
About the Whirlpool SCS3017RS
- Description
- Specifications
- Features
- Info & Guides
- Reviews
Brand:
Cooktop Type:
Cooktop
Finish:
Stainless Steel
Fuel Type:
Gas
Style:
Sealed Burner
Width:
31 7/16"
Height:
3 3/8"
Depth:
21"
Cutout Width:
29"
Cutout Height:
3 3/8"
Cutout Depth:
19"
Volts:
120 Volts
Amps:
15
Key Features
Features
- 30" Porcelain-on-Steel Cooktop
- New Formed Styling, Graphics and Knobs
- Sealed Gas Burners
- Left Front: 12,500 BTU Power ? Burner
- Right Front: 5,000 BTU
- Left Rear: 9,100 BTU
- Right Rear: 12,500 BTU Power ? Burner
- Full-Width Cast Iron Burner Grates
- Infinite-Heat Controls with Lift-Off Knobs
- LP Gas Conversion Kit Included
- 120V Electrical Requirement
SCS3017RS Dimension Guide
Specifications
Product Information
Warranty Terms
1 year ? Whirlpool Appliances are backed by a one year warranty. For additional details, visit https://www.whirlpool.com/blog/kitchen/warranties.html
UPC
050946997278
Brand
Whirlpool
Model
SCS3017RS
Dimensions
Depth
21"
Height
3 3/8"
Width
31 7/16"
Performance
Minimum BTU
5,000
Maximum BTU
12,500
Gas Power
Yes
BTU Range
5,000 - 12,500
Burner Output
Set 3 QTY
1
Set 3 Output
5000
Set 2 QTY
1
Set 2 Output
9100
Set 1 QTY
2
Set 1 Output
12500
Burner 3 Output
5000
Burner 2 Output
9100
Burner 1 Output
12500
Grill
No
Griddle
No
Function
Sabbath Mode
No
Burners / Elements
4
Burners
4
Downdraft Venting
No
Control Type
Knobs
Controls
Dial Controls
Yes
Technical Details
Voltage
120 Volts
Modules Required
No
Amps
15
LP Conversion
Yes
Ignition Type
Electronic
Appearance
Type
Drop-In
Surface Color
Stainless Steel
Style
Sealed Burner
Number of Burners
4
Color
Stainless Steel
Continuous Grates
Yes
Fuel Type
Gas
Cooktop
Cooktop
Appearance
Trimless Trim Design
Yes
Grate Finish
Cast Iron - Matte Finish
Construction
Sealed Gas Burners
Yes
Porcelain-on-Steel Cooktop Surface
Yes
Over Oven Installation
Yes
Number of Burners
4
Burner Configuration
1-5,000 BTU; 1-9,100 BTU; 2-12,500 BTU
Dimensions
Actual Width
31 7/16 Inch
Actual Height
3 3/8 Inch
Actual Depth
21 Inch
Cutout Width
29 Inch
Cutout Height
3 3/8"
Cutout Depth
19 Inch
GTIN
