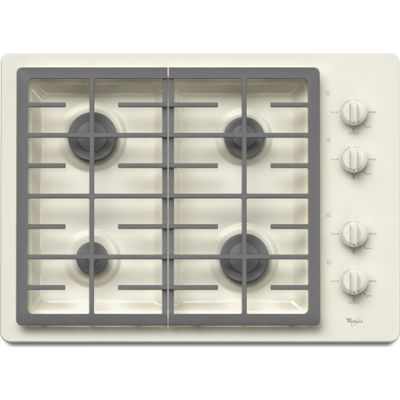

About the Whirlpool W5CG3024XT
- 30" Gas Cooktop with 4 Sealed Burners
- AccuSimmer Burner
- Continuous Grates
- Knob Controls and ADA Compliant: Pure Bisque
Brand:
Cooktop Type:
Cooktop
Finish:
Bisque
Fuel Type:
Gas
Style:
Sealed Burner
Width:
31 7/16"
Height:
3 3/4"
Depth:
21"
Cutout Width:
29"
Cutout Depth:
19"
Volts:
120 Volts
Amps:
15
Enhance every home you build with stylish, innovative appliances that home buyers demand. Home buyers expect appliances that meet the needs of their everyday lives, are easy to use and reflect the style of their individual tastes. But, to provide appliances you will truly appriciate and will use for years to come, requires a higher level of commitment. Their commitment to quality, craftsmanship and style challenges them to design products that lead the industry in innovation and design. Available at Designer Appliances.
W5CG3024X
This 30" gas cooktop's 5,000 BTU AccuSimmer burner delivers precise temperature control that's perfect for melting chocolate or simmering sauces, while two 12,500 BTU Power burners give you more cooking power whenever you need it. Easy-to-clean continuous cast-iron, matte-finish grates, dishwasher-safe knobs and sealed burners will also keep your cooktop looking like new.
Key Features
30" Porcelain-on-Steel Cooktop
Right Front: 12,500 BTU Power Burner
Left Rear: 12,500 BTU Power Burner
- Two 12,500 BTU Power burners give you more cooking power whenever you need it.
Right Rear: 9,200 BTU Burner
- A 9,200 BTU burner offers plenty of heat for everyday cooking tasks.
Left Front: 5,000 BTU AccuSimmer Burner
- 5,000 BTU AccuSimmer burner's advanced technology allows for precise temperature control that is perfect for melting chocolate or simmering sauces.
Dishwasher-Safe, Continuous Cast-Iron, Matte-Finish Grates
- Cast-iron, matte-finish grates cover the whole cooking surface, giving you the flexibility to place pots and pans anywhere on the cooktop.
- The easy-to-clean grates are dishwasher safe, and their matte finish resists wear and tear.
Dishwasher-Safe Knobs
- Keep your electric cooktop looking like new with easy-to-clean dishwasher-safe knobs.
Built-In Oven Compatible
- This cooktop is built-in oven compatible and can be installed over a single built-in oven for added installation flexibility.
- Available at Designer Appliances.
- www.designerappliances.com
ADA Compliant
- Meets ADA push/pull force and reach range guidelines.
W5CG3024XT Dimension Guide
Specifications
Technical Details
Voltage
120 Volts
Star-K Certified
No
Amps
15
ADA Compliant
Yes
Modules Required
No
LP Conversion
Yes
Ignition Type
Electronic
Burner Detail
Number of Burners
4
Left Rear Burner High
12,500 BTU
Left Front Burner High
5,000 BTU
Right Front Burner High
12,500 BTU
Right Rear Burner High
9,200 BTU
Dimensions
Overall Width
31 7/16"
Overall Height
3 3/4"
Overall Depth
21"
Cutout Width
29"
Cutout Depth
19"
Burner Output
Set 3 QTY
1
Set 3 Output
5000
Set 2 QTY
1
Set 2 Output
9200
Set 1 QTY
2
Set 1 Output
12500
Grill
No
Griddle
No
Cooktop Features
Burner Type
Sealed Gas
Liquid Propane (LP) Gas Conversion
Yes - Kit Included
Ignition Type
Electronic
Grate Material
Matte Finish
Cooktop Controls
Knob
Appearance
Trim Color
Bisque
Surface Color
Bisque
Style
Sealed Burner
Continuous Grates
Yes
Color
Bisque
Cooktop
Cooktop
Fuel Type
Gas
Electrical Requirements
Voltage
120 Volts
Amperage
15 Amps
Function
Burners
4
Control Type
Knobs
Sabbath Mode
No
Downdraft Venting
No
Dimensions
Actual Width
31 7/16"
Actual Height
3 3/4"
Cutout Depth
19"
Cutout Width
29"
Actual Depth
21"
General
Manufacturer
Whirlpool
