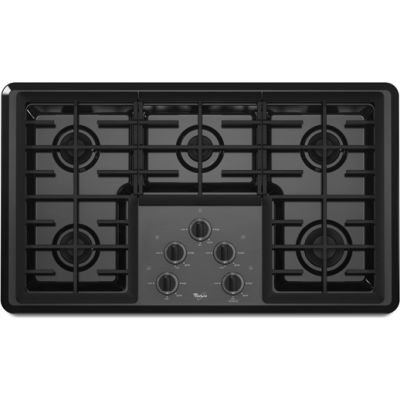

About the Whirlpool W5CG3625XB
- 5 Sealed Burners
- AccuSimmer Burner
- Continuous Grates
- Knob Controls
- ADA Compliant
Brand:
Cooktop Type:
Cooktop
Finish:
Black
Fuel Type:
Gas
Style:
Sealed Burner
Width:
37 5/8"
Height:
3 3/8"
Depth:
21"
Cutout Width:
35 1/4"
Cutout Depth:
19"
Volts:
120 Volts
Amps:
15
Enhance every home you build with stylish, innovative appliances that home buyers demand. Home buyers expect appliances that meet the needs of their everyday lives, are easy to use and reflect the style of their individual tastes. But, to provide appliances you will truly appriciate and will use for years to come, requires a higher level of commitment. Their commitment to quality, craftsmanship and style challenges them to design products that lead the industry in innovation and design. Available at Designer Appliances.
W5CG3625X
This 36" gas cooktop's 5,000 BTU AccuSimmer burner delivers precise temperature control that's perfect for melting chocolate or simmering sauces, while a 12,500 BTU Power burner gives you more cooking power whenever you need it. Easy-to-clean continuous cast-iron, matte-finish grates, dishwasher-safe knobs and sealed burners will also keep your cooktop looking like new.
Key Features
36" Porcelain-on-Steel Cooktop
Right Front: 12,500 BTU Power Burner
- A 12,000 BTU Power burner gives you more cooking power whenever you need it.
Right Rear: 9,200 BTU Burner
Left Front: 9,200 BTU Burner
Left Rear: 9,200 BTU Burner
- Three 9,200 BTU burners offers plenty of heat for everyday cooking tasks.
Middle Rear: 5,000 BTU AccuSimmer Burner
Dishwasher-Safe, Continuous Cast-Iron, Matte-Finish Grates
- Cast-iron, matte-finish grates cover the whole cooking surface, giving you the flexibility to place pots and pans anywhere on the cooktop.
- The easy-to-clean grates are dishwasher safe, and their matte finish resists wear and tear.
Dishwasher-Safe Knobs
- Keep your electric cooktop looking like new with easy-to-clean dishwasher-safe knobs.
Built-In Oven Compatible
- This cooktop is built-in oven compatible and can be installed over a single built-in oven for added installation flexibility.
- Available at Designer Appliances.
- www.designerappliances.com
ADA Compliant
W5CG3625XB Dimension Guide
Specifications
Product Information
Warranty Terms
1 year ?Whirlpool Appliances are backed by a one year warranty. For additional details, visit https://www.whirlpool.com/blog/kitchen/warranties.html
UPC
883049225692
Model
W5CG3625XB
Brand
Whirlpool
Cooktop Features
Right Front Type
SpeedHeat
Right Front Power
12,000 BTU
Left Rear Power
9,100 BTU
Left Front Power
9,100 BTU
Right Rear Type
Simmer
Right Rear Power
5,000 BTU
Center Front Type
SpeedHeat
Center Front Power
15,000 BTU
Configuration and Overview
Fuel Type
Gas
Installs Over Built-In Oven
Yes
Number of Burners
5
Burner or Element Style
Sealed Gas
Surface Material
Porcelain Coated
Size
36"
Cooktop Type
Standard
Electrical Requirements
15 Amps; 120 Volts
Appearance
Type
Drop-In
Number of Burners
5
Trim Color
Black
Surface Color
Black
Color
Black
Continuous Grates
Yes
Cooktop
Cooktop
Style
Sealed Burner
Fuel Type
Gas
Dimensions
Cutout Depth
19"
Width
36"
Height
4 1/8"
Depth
21"
Cutout Width
33 7/8"
Style and Extras
Digital Display
No
Downdraft Vent
No
Control Type
Knobs
Burner Output
Burner 3 Output
5000
Burner 2 Output
9200
Burner 1 Output
12500
Set 4 Output
5000
Set 4 QTY
1
Set 3 QTY
1
Set 2 Output
9200
Set 2 QTY
3
Set 1 Output
12500
Set 1 QTY
1
Set 3 Output
5000
Grill
No
Griddle
No
Function
Burners / Elements
5
Hot Surface Indicator Light
No
Induction
No
Sabbath Mode
No
Downdraft Venting
No
Control Type
Knobs
Burners
5
Dimensions
Cutout Depth
19 Inch
Cutout Width
35 1/4 Inch
Actual Height
3 3/8 Inch
Actual Depth
21 Inch
Actual Width
37 5/8 Inch
Technical Details
Voltage
120 Volts
Amps
15
LP Conversion
Yes
Modules Required
No
Ignition Type
Electronic
Star-K Certified
No
ADA Compliant
Yes
General
Manufacturer
Whirlpool
