discontinued
There is a newer model of this item:
Need help finding a replacement?
-
Call us at
888-714-4938

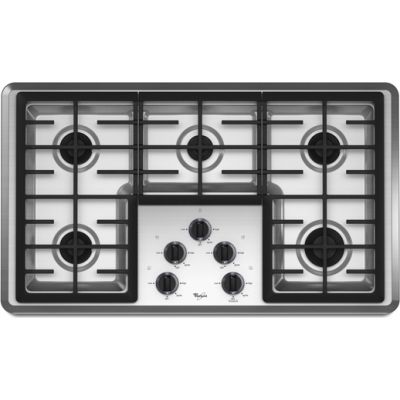

About the Whirlpool W5CG3625XS
- 5 Sealed Burners
- AccuSimmer Burner
- Continuous Grates
- Knob Controls
- ADA Compliant
Brand:
Cooktop Type:
Cooktop
Finish:
Stainless Steel
Fuel Type:
Gas
Style:
Sealed Burner
Width:
37 5/8"
Height:
3 3/8"
Depth:
21"
Cutout Width:
35 1/4"
Cutout Depth:
19"
Volts:
120 Volts
Amps:
15
Enhance every home you build with stylish, innovative appliances that home buyers demand. Home buyers expect appliances that meet the needs of their everyday lives, are easy to use and reflect the style of their individual tastes. But, to provide appliances you will truly appriciate and will use for years to come, requires a higher level of commitment. Their commitment to quality, craftsmanship and style challenges them to design products that lead the industry in innovation and design. Available at Designer Appliances.
W5CG3625X
This 36" gas cooktop's 5,000 BTU AccuSimmer burner delivers precise temperature control that's perfect for melting chocolate or simmering sauces, while a 12,500 BTU Power burner gives you more cooking power whenever you need it. Easy-to-clean continuous cast-iron, matte-finish grates, dishwasher-safe knobs and sealed burners will also keep your cooktop looking like new.
Key Features
36" Porcelain-on-Steel Cooktop
Right Front: 12,500 BTU Power Burner
- A 12,000 BTU Power burner gives you more cooking power whenever you need it.
Right Rear: 9,200 BTU Burner
Left Front: 9,200 BTU Burner
Left Rear: 9,200 BTU Burner
- Three 9,200 BTU burners offers plenty of heat for everyday cooking tasks.
Middle Rear: 5,000 BTU AccuSimmer Burner
Dishwasher-Safe, Continuous Cast-Iron, Matte-Finish Grates
- Cast-iron, matte-finish grates cover the whole cooking surface, giving you the flexibility to place pots and pans anywhere on the cooktop.
- The easy-to-clean grates are dishwasher safe, and their matte finish resists wear and tear.
Dishwasher-Safe Knobs
- Keep your electric cooktop looking like new with easy-to-clean dishwasher-safe knobs.
Built-In Oven Compatible
- This cooktop is built-in oven compatible and can be installed over a single built-in oven for added installation flexibility.
- Available at Designer Appliances.
- www.designerappliances.com
ADA Compliant
W5CG3625XS Dimension Guide
Specifications
Product Information
Warranty Terms
1 year ?Whirlpool Appliances are backed by a one year warranty. For additional details, visit https://www.whirlpool.com/blog/kitchen/warranties.html
UPC
883049225715
Brand
Whirlpool
Model
W5CG3625XS
Cooktop Features
Left Front Power
9200 BTU
Center Rear Type
AccuSimmer®
Center Rear Power
5000 BTU
Left Rear Power
9200 BTU
Right Front Power
12500 BTU
Right Front Type
Power™ Burner
Right Rear Power
9200 BTU
Dimensions
Width
36
Height
3 1/2
Depth
21
Cutout Width
35 1/4
Cutout Height
5 1/2
Cutout Depth
19
Style and Extras
Downdraft Vent
No
Digital Display
No
Burner Output
Set 4 QTY
1
Set 4 Output
5000
Set 3 QTY
1
Set 3 Output
5000
Set 2 QTY
3
Set 2 Output
9200
Burner 3 Output
5000
Burner 2 Output
9200
Burner 1 Output
12500
Set 1 QTY
1
Set 1 Output
12500
Grill
No
Griddle
No
Technical Details
Voltage
120 Volts
Star-K Certified
No
Amps
15
ADA Compliant
Yes
Modules Required
No
LP Conversion
Yes
Ignition Type
Electronic
Appearance
Type
Drop-In
Trim Color
Stainless Steel
Surface Color
Stainless Steel
Style
Sealed Burner
Continuous Grates
Yes
Color
Stainless Steel
Cooktop
Cooktop
Number of Burners
5
Fuel Type
Gas
Configuration and Overview
Surface Material
Porcelain Coated Steel
Size
36
Number of Burners
5
Installs Over Built-In Oven
Yes
Fuel Type
Gas
Cooktop Type
Standard
Burner or Element Style
Gas Burner
Function
Burners / Elements
5
Burners
5
Control Type
Knobs
Sabbath Mode
No
Induction
No
Hot Surface Indicator Light
No
Downdraft Venting
No
Dimensions
Actual Width
37 5/8 Inch
Actual Height
3 3/8 Inch
Cutout Depth
19 Inch
Cutout Width
35 1/4 Inch
Actual Depth
21 Inch
General
Manufacturer
Whirlpool
