discontinued
There is a newer model of this item:
Need help finding a replacement?
-
Call us at
888-714-4938

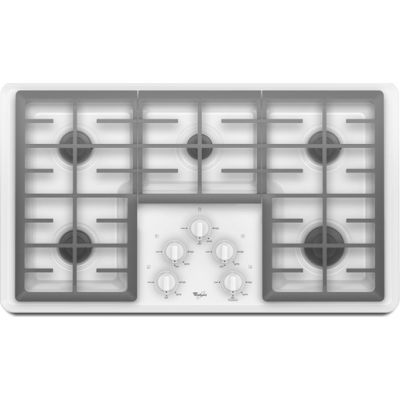

About the Whirlpool W5CG3625XW
- 5 Sealed Burners
- AccuSimmer Burner
- Continuous Grates
- Knob Controls
- ADA Compliant
Brand:
Cooktop Type:
Cooktop
Finish:
White
Fuel Type:
Gas
Style:
Sealed Burner
Width:
37 5/8"
Height:
3 3/8"
Depth:
21"
Cutout Width:
35 1/4"
Cutout Depth:
19"
Volts:
120 Volts
Amps:
15
Enhance every home you build with stylish, innovative appliances that home buyers demand. Home buyers expect appliances that meet the needs of their everyday lives, are easy to use and reflect the style of their individual tastes. But, to provide appliances you will truly appriciate and will use for years to come, requires a higher level of commitment. Their commitment to quality, craftsmanship and style challenges them to design products that lead the industry in innovation and design. Available at Designer Appliances.
W5CG3625X
This 36" gas cooktop's 5,000 BTU AccuSimmer burner delivers precise temperature control that's perfect for melting chocolate or simmering sauces, while a 12,500 BTU Power burner gives you more cooking power whenever you need it. Easy-to-clean continuous cast-iron, matte-finish grates, dishwasher-safe knobs and sealed burners will also keep your cooktop looking like new.
Key Features
36" Porcelain-on-Steel Cooktop
Right Front: 12,500 BTU Power Burner
- A 12,000 BTU Power burner gives you more cooking power whenever you need it.
Right Rear: 9,200 BTU Burner
Left Front: 9,200 BTU Burner
Left Rear: 9,200 BTU Burner
- Three 9,200 BTU burners offers plenty of heat for everyday cooking tasks.
Middle Rear: 5,000 BTU AccuSimmer Burner
Dishwasher-Safe, Continuous Cast-Iron, Matte-Finish Grates
- Cast-iron, matte-finish grates cover the whole cooking surface, giving you the flexibility to place pots and pans anywhere on the cooktop.
- The easy-to-clean grates are dishwasher safe, and their matte finish resists wear and tear.
Dishwasher-Safe Knobs
- Keep your electric cooktop looking like new with easy-to-clean dishwasher-safe knobs.
Built-In Oven Compatible
- This cooktop is built-in oven compatible and can be installed over a single built-in oven for added installation flexibility.
- Available at Designer Appliances.
- www.designerappliances.com
ADA Compliant
W5CG3625XW Owners Manual
Specifications
Burner Output
Burner 3 Output
5000
Burner 2 Output
9200
Burner 1 Output
12500
Griddle
No
Grill
No
Set 3 Output
5000
Set 3 QTY
1
Set 2 Output
9200
Set 2 QTY
3
Set 1 Output
12500
Set 1 QTY
1
Cooktop Features
Right Front Burner BTU's
12,500 BTU
Center Rear Burner BTU's
5,000 BTU
Right Rear Burner BTU's
9,200 BTU
Left Front Burner BTU's
9,200 BTU
Ignition Type
Electronic
Left Rear Burner BTU's
9,200 BTU
Technical Details
Voltage
120 Volts
Amps
15
LP Conversion
Yes
Modules Required
No
Ignition Type
Electronic
Star-K Certified
No
ADA Compliant
Yes
Function
Sabbath Mode
No
Downdraft Venting
No
Burners / Elements
5
Control Type
Knobs
Burners
5
Dimensions
Overall Width
37 5/8"
Cutout Depth
19"
Cutout Width
35 1/4"
Overall Height
3 3/8"
Overall Depth
21"
Appearance
Number of Burners
5
Type
Drop-In
Color
White
Continuous Grates
Yes
Cooktop
Cooktop
Style
Sealed Burner
Fuel Type
Gas
Surface Color
White
Trim Color
White
Product Information
UPC
883049225708
Model
W5CG3625XW
Brand
Whirlpool
Specifications
Number of Burners
5
Burner Type
Sealed Gas
Fuel Type
Natural Gas
Grate
Cast-Iron, Matte-Finish
Liquid Propane Conversion Kit
Included
Cooktop Controls
Knob
Dimensions
Cutout Depth
19 Inch
Cutout Width
35 1/4 Inch
Actual Height
3 3/8 Inch
Actual Depth
21 Inch
Actual Width
37 5/8 Inch
General
Manufacturer
Whirlpool
