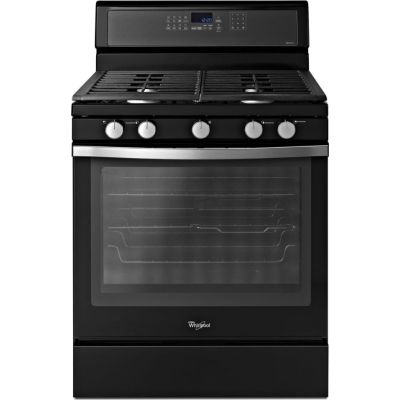

About the Whirlpool WFG710H0AE
- 4 Sealed Burners
- 5.8 cu. ft. Convection Oven
- SpeedHeat Burner
- AccuSimmer Burner
- Storage Drawer
- AquaLift Self-Cleaning
Brand:
Series:
Gold Black Ice
Style:
Freestanding
Width:
29 7/8"
Height:
46 7/8"
Depth:
27 7/8"
Capacity:
5.8 Cu. Ft.
Burners:
4
Convection:
Yes
Self Clean:
Yes
Griddle:
No
Grill:
No
Fuel Type:
Gas
Volts:
120 Volts
Amps:
15
Enhance every home you build with stylish, innovative appliances that home buyers demand. Home buyers expect appliances that meet the needs of their everyday lives, are easy to use and reflect the style of their individual tastes. But, to provide appliances you will truly appreciate and will use for years to come, requires a higher level of commitment. Whirlpool's commitment to quality, craftsmanship and style challenges them to design products that lead the industry in innovation and design.
This 5.8 cu. ft. capacity gas range features TimeSavor Convection Cooking System, which uses a fan in the back of the oven to distribute hot air more efficiently over, under and around food to seal in flavor and juices.
Available at Designer Appliances.
Key Features
AccuBake Temperature Management System
- Achieve uniform baking results every time with the AccuBake temperature management system.
- A built-in sensor monitors oven temperature and controls the cooking elements to deliver consistent, delicious results every time.
TimeSavor Convection Cooking System
- Uses a fan in the back of the oven to distribute hot air more efficiently over, under and around food to seal in flavor and juices.
AquaLift Self-Clean Technology
- Our most energy-efficient cleaning cycle uses water and low-heat to release baked-on foods from the bottom of the oven.
- When the cleaning cycle is complete, soils and excess water can be easily removed with a dry towel.
Rapid Preheat
- Rapid Preheat uses all of the elements and a rear fan to heat the oven quickly and efficiently. Now you can save time when single-rack baking with 25% faster preheating.
Industry's Largest Capacity Range Available
- Cook multiple dishes for a large family meal or prepare treats for a bake sale with Whirlpool brand's 5.8 cu. ft. capacity gas ranges.
EasyView Extra-Large Oven Window is the Industry's Largest Window
- Keep the heat inside your oven while checking on dishes through the industry's largest window.
- Now you can keep a close eye on cooking progress without opening the door or disturbing oven temperature with the EasyView extra-large oven window.
Power Burner
- Generate the high heat needed for rapid boiling, searing and frying with burners that offer 15,000 or 17,000 BTUs.
5,000 BTU AccuSimmer Burner
- Delivers precise temperature control that is perfect for melting chocolate or simmering sauces.
Split Rack
- Take advantage of this oven's flexible cooking capacity with the split rack.
- This rack can be removed to make room for large or tall items like a turkey and reattached to make a full rack.
Convection Conversion
- Use faster convection cooking with all of your favorite recipes.
- The convection conversion feature automatically adjusts the oven temperature, taking the guesswork out of programming your oven.
Griddle
- This large griddle offers you more cooking area and flexibility than ever before.
- Now you can cook pancakes, burgers and other favorite foods quickly and easily.
- The flexible griddle can be placed on multiple cooktop locations for even greater cooking options.
Max Capacity Rack
- Exposed bake elements have an irregular surface with hard-to-reach areas that are difficult to keep clean.
- Whirlpool brand places the bake element beneath the oven floor, creating a smooth, even surface that is easy to wipe clean.
Lower Storage Drawer
- Provides extra space for your pots and pans.
Available at Designer Appliances (www.designerappliances.com)
WFG710H0AE Owners Manual
Specifications
Cooktop Features
Cooktop Surface Material
Porcelain Coated Steel
Right Rear Element-Burner Power
5000 BTU
Right Rear Element-Burner Type
Simmer
Right Front Element-Burner Type
Sealed Burner
Right Front Element-Burner Power
15,000 BTU
Dishwasher Safe
Yes
Grate Finish
Matte
Grate Material
Porcelain Coated Cast Grates
Grate Type
Continuous
Left Front Element-Burner Power
17,000 BTU
Left Front Element-Burner Type
High Output
Left Rear Element-Burner Power
9500 BTU
Left Rear Element-Burner Type
Sealed Burner
Number of Cooking Element-Burners
5
Number of Grates
2
Cooktop Surface Color
Color Coordinated
Center Rear Element-Burner Power
8000 BTU
Center Rear Element-Burner Type
Sealed Burner
Cooktop Element Style
Sealed Burner
Configuration and Overview
Capacity
5.8
Fuel Type
Gas
Range Type
Freestanding
Size
30
Controls
ADA Compliant
No
Drawer Type
Storage Drawer
Handle Material
Metal
Sabbath Mode
Yes
Selections
Clock, Control Lock, Energy Save Mode, Griddle, Hidden Bake Element, Keep Warm Setting, Rapid Preheat, Sabbath Mode, Simmer, Timer, Warm Hold
UL
Yes
Oven Features
Power On Indicator Light
Yes
Self-Cleaning
AquaLift® Steam Clean
Oven Rack Type
Max Capacity, Split, and Standard
Oven Cooking System
Convection
Automatic Convection Conversion Temperature Adjust
Yes
Broiler Location
Top of Oven
Convection Element Type
Single-Fan
Convection Functions
Bake, Broil, Roast
Heating Element On Indicator Light
No
Hidden Bake Element
Yes
Hot Surface Indicator Light
No
Light Type
Incandescent
Number of Oven Lights
1
Number of Rack Guides
7
Appearance
Stainless Steel Handle
No
Style
Freestanding
Viewing Window
Yes
Cooktop
Sealed Burner
Drawer
Storage
Fuel Type
Gas
Continuous Grates
Yes
Color
Black
Clock
Yes
Technical Details
Star-K Certified
Yes
Voltage
120 Volts
ADA Compliant
No
Amps
15
Ignition Type
Electronic
LP Conversion
Yes
Oven Features
Temperature Probe
No
Timer
Yes
Convection
Yes
Delay Bake
Yes
Digital Temperature Display
Yes
Broiler Element Location
Top
Broiler Pan Included
No
Racks
2
Removable Door
Yes
Sabbath Mode
Yes
Self-Cleaning
Yes
Proofing
No
Proof Mode
No
Interior Oven Light
Yes
Oven Control Type
Digital
Primary Oven Capacity
5.8 Cu. Ft.
Product Information
UPC
883049246550
Brand
Whirlpool
Model
WFG710H0AE
Dimensions
Width
29 7/8 Inch
Depth
27 7/8 Inch
Height
46 7/8 Inch
Cooktop Features
Cooktop Control Type
Knobs
Downdraft Ventilation
No
Griddle
No
Burners / Elements
4
Grill
No
Hot Surface Indicator Light
No
Induction
No
Modules Required
No
Shabbos Compliance
Certification
STAR-K
General
Series
Gold Black Ice
Manufacturer
Whirlpool
Dimensions
Depth
27 7/8
Height
46 7/8
Width
29 7/8
Capacity
Number of Burners
4
