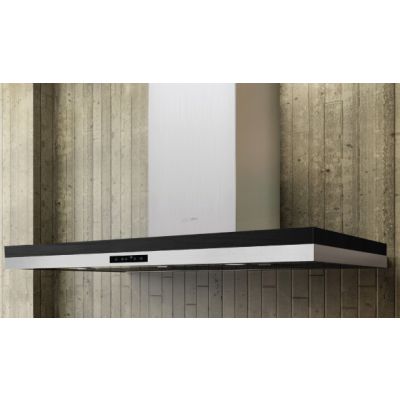

Zephyr ADUM90ASX Arc Duo 35 3/8

discontinued

Need help finding a replacement?

John Carey
About the Zephyr ADUM90ASX
  • Accessories
  • Description
  • Specifications
  • Features
  • Info & Guides
  • Reviews
Brand:
CFM:
1,000 CFM
Speeds:
3
Venting Type:
Convertible
Style:
Chimney Style
Width:
35 3/8"
Height:
27"
Depth:
19 11/16"
A KITCHEN HOOD CAN DO MORE THAN VENT AIR
When co-founder Alex Siow seized on the idea that everything in the home is an opportunity for personal expression, he began by elevating the hood to its rightful place: no longer an afterthought, the hood stands above all, as distinctive in its performance as it is in its beauty.

Since the launch of their first hoods in 1997, they have remained true to their vision of delivering the unexpected-by deliberately seeking to change the marketplace. Alex was first to recognize the unmet demand for more powerful, professional-grade hoods in the home. And they answered with the Power series, high-CFM performers that put air quality concerns to rest with quiet efficiency - and raised the bar with self-cleaning, filter-free technologies never before available.

After putting the power back into ventilation, the Europa line ushered in a new millennium with a style-forward clarion call to those who could find little inspiration above the range. Since then they have taken their vision ever higher, working with some of the world's best designers to find beauty in the everyday and create collections that are truly unlike any other.

DUO WALL
A visionary duo of materials marries the warmth of wood with the cool factor of stainless steel in a completely fresh - and welcome - creation for the contemporary kitchen. This wall-mounted range hood design may be topped with poplar wood in a charcoal or wenge finish to complement your cabinetry. Or you can perfectly match your kitchen's modern stainless surroundings with the low-profile steel-only option. Dual halogen lights highlight the work below.

MFG SKU ADU-M90ASX
Key Features
  • 3 Speed Touch Glass Controls
  • Decorative Mesh Filters
  • CleanAir Function
  • Delay Off
  • 2 Halogen Lights
  • Tri-Level Lighting
  • RF Remote Control
  • 6" or 8" Round Vertical Ducting
10" round duct connects to external or in-line blower.
Must transition from 10" to 8" before duct passes through ceiling.
10" to 8" adapter included with in-line and external blowers.
Blowers not included, sold separately.
Optional blowers available under "Accessories" tab.
MFG SKU ADU-M90ASX
Specifications
Dimensions
Width
35 3/8 Inch
Depth
19 11/16 Inch
Height
27 Inch
Features
Filters
Decorative Mesh x 3
Duct Cover Extension
Optional
Delay-Off
Auto
Controls
Memory Touch Glass
CleanAir Function
Yes
AC Power - Hood Only
Max. 40W, 0.33 Amps
AC Input
120V - 60Hz
Lighting
Halogen, 20W x 2
Recirculating
Optional
Remote Control
Yes, RF
Tri-Level Lighting
Yes
Speed Levels
3
Dimensions
Overall Width
35 3/8"
Overall Height - Recirculating
32" Min. to 43" Max.
Overall Height - Ducted
27" Min. to 43" Max.
Overall Depth
19 11/16"
Mounting Height from Cooking Surface
24" Min. to 36" Max.
Height with Duct Cover Extension - Recirculating
48" Min. to 79" Max.
Height with Duct Cover Extension - Ducted
43" Min. to 79" Max.
Technical Details
Voltage
120 Volts
Energy Star Rated
No
Amps
15
Appearance
Venting Type
Convertible
Type
Hood
Style
Chimney Style
Color
Stainless Steel
Blower Type
Both
Mounting Type
Wall Mount
Product Information
UPC
646328000263
Brand
Zephyr
MPN
ADU-M90ASX
Model #
ADUM90ASX
Model
ADUM90ASX
Features
Speeds
3
Dishwasher Safe Filters
Yes
Approved for Outdoor Use
No
Halogen Lighting
Yes
Lighting Levels
3
Number of Fan Speeds
3
Performance (Blowers Sold Separately)
Internal Blower
600 CFM, 6.0 Sones Max. (CBI600A)
In-Line Blower
1000 CFM, Sones NA (PBN1000A)
External Blower
1000 CFM, Sones NA (CBE1000)
Capacity
CFM
1,000 CFM
Duct Specifications
Vertical - Internal
6"
Vertical - In-Line/External
10" to 8"
Note
10" round duct connects to external and in-line blower. Must transition from 10" to 8" before duct passes through ceiling. A 10" to 8" adapter is included with external and in-line blowers.
Horizontal
N/A
General
Series
Arc Duo Collection
Manufacturer
Zephyr
