About the Zephyr ZVEE36BS
- 715 CFM Internal Blower
- DCBL Suppression System
- 5+Burst Speed Levels
- Bloom HD LED Lighting
- Electronic LCD Controls
Brand:
CFM:
715 CFM
Speeds:
6
Venting Type:
Convertible
Style:
Chimney Style
Width:
35 7/8"
Height:
27"
Depth:
24"

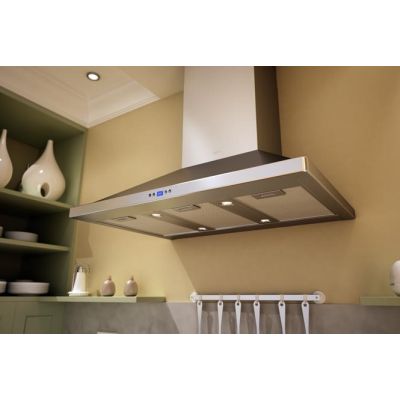

A timeless and classic design, Venezia's formidable pyramid design now includes baffle filters and Zephyr's DCBL Suppression System, elevating this ageless range hood to unparalleled levels of performance. With directional Bloom HD LED light bulbs, Venezia's 24-inch-deep capture area is fully illuminated with warm halogen-caliber light while remaining cool to the touch on high or low settings.
About Zephyr
Since the launch of their first hoods in 1997, Zephyr has remained true to their vision of delivering the unexpected by deliberately seeking to change the marketplace. Zephyr was first to recognize the unmet demand for more powerful, professional-grade hoods in the home. And they answered with the Power series, high-CFM performers that put air quality concerns to rest with quiet efficiency. They raised the bar with self-cleaning, filter-free technologies never before seen. Available at Designer Appliances.
Key Features
- Europa Essentials' Venezia Wall Range Hood
- Internal Blower with 715 Max. CFM
- Sones Max. of 5.8
- Stainless Steel Construction
- Electronic LED Control Panel
- 5 Speed Levels with Burst Feature
- Auto Delay Off Setting
- 2-Level High-Def. Bloom LED 6W Lighting
- Dishwasher-Safe Baffle Filters with Illuminated Cleaning Reminder
- Recirculating Option
- Extended Duct Option
- 3-Year Warranty on Parts
- Available at Designer Appliances
- www.Designer Appliances.com
Manuals & Downloads
ZVEE36BS Arc Catalog as PDF
ZVEE36BS Wall Cap Inlet, Round
ZVEE36BS MUA00xA: Universal Make-Up Air Dampers
ZVEE36BS Make-Up Air Damper Manual
ZVEE36BS Hood Specs
ZVEE36BS Hood Manual
ZVEE36BS Exploded View Diagram
ZVEE36BS Full-Line Catalog as PDF
ZVEE36BS Essentials Catalog as PDF
ZVEE36BS DCBL Catalog as PDF
ZVEE36BS Cheng Catalog as PDF
ZVEE36BS ZRC-0xVE: Recirculating Kits
Specifications
Features
Number of Fan Speeds
6
Approved for Outdoor Use
No
Sones
5.8
Halogen Lighting
No
Lighting Levels
2
Speeds
6
Dishwasher Safe Filters
Yes
CFM
715 CFM
Venezia Pyramid Design Wall Hood
Blower Orientation
Internal Installation
Construction
Stainless Steel
Mounting Type
Wall
CFM Levels
250 Min. - 715 Max.
Sones Rating
0.8 Min. - 5.8 Max.
Lighting
2-Level Halogen LED Lighting
Filters
Dishwasher-Safe Baffles
Ducting
Vertical with Extension Option
Recirculating Vent
Optional Kit Available
Number of Speed Levels
5 plus Burst
Technical Details
Voltage
120 Volts
Amps
15
Energy Star Rated
No
CEE Rating
Not Available
Product Information
MPN
ZVE-E36BS
Model
ZVEE36BS
Brand
Zephyr
Series
Europa Venezia
Dimensions
Overall Depth
24"
Duct Depth
10 9/16"
Standard Height - Ducted
27"
Standard Height - Recirc.
31 1/2"
Maximum Height
44"
Height of Control Panel
1 9/16"
Duct Width
14 5/16"
Overall Width
35 7/8"
Appearance
Type
Hood
Style
Chimney Style
Color
Stainless Steel
Mounting Type
Wall Mount
Venting Type
Convertible
Blower Type
Internal
Dimensions
Height
27 Inch
Depth
24 Inch
Width
35 7/8 Inch
General
Manufacturer
Zephyr
