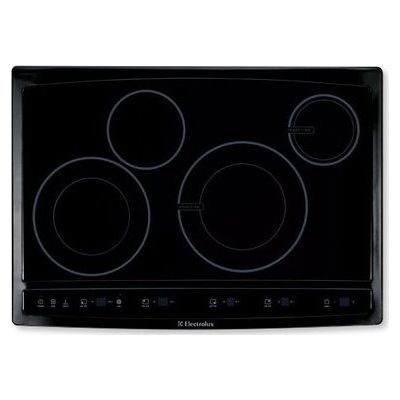

About the Electrolux EW30CC55GB
- Description
- Specifications
- Features
- Info & Guides
- Reviews
Brand:
Cooktop Type:
Cooktop
Finish:
Black
Fuel Type:
Electric
Style:
Smoothtop
Width:
30 3/4"
Height:
6"
Depth:
21 3/4"
Cutout Width:
29 3/4"
Cutout Height:
6"
Cutout Depth:
20 3/8"
Volts:
240/208 Volts
Amps:
40
Electrolux induction hybrid cooktops include a combination of electric elements that are compatible with all cookware, and induction elements that are compatible with most cookware. If a magnet sticks to the bottom of the pot or pan, it will work. Induction is more responsive than a gas cooktop, you can instantly adjust the heat to a delicate simmer or bring to a quick boil. Power Assist Function generates rapid heat for a quick boil.
Key Features
10" and 6" Induction Elements
- Boil water in 90 seconds with the 10" induction element, which offers 3,200 watts of power
Power Assist Function
- Generates rapid heat for a quick boil
More Responsive
- Induction is more responsive than a gas cooktop - you can instantly adjust the heat to a delicate simmer or bring to a quick boil
Cookware Compatibility
- Electrolux induction hybrid cooktops include a combination of electric elements that are compatible with all cookware, and induction elements that are compatible with most cookware - if a magnet sticks to the bottom of the pot or pan, it will work.
Specifications
Product Information
Warranty Terms
1 year ?Frigidaire Appliances are backed with a one year warranty. For additional information visit https://www.frigidaire.com/en/warranty/warranty-information
UPC
057112096759
Model
EW30CC55GB
Brand
Electrolux
Series
Wave-Touch
Color/UPC(0-57112-)
Stainless Steel (S)
09676-6
White (W)
09674-2
Black (B)
09675-9
Accessories
Cleaning Sponge
Included
Features
Sealed Spill Control Cooktop
Yes
Hot-Surface Indicator Lights
Yes
6" Induction Cooking Element - 1200W/1500W
1
10" Induction Cooking Element - 2400W/3200W
1
6" Electric Element - 1200W
1
Perfect Set Electronic Touch Controls
Yes
Ceramic Smoothtop Glass Surface
Yes
6" to 9" Dual Expandable Element - 1600W/3000W
1
Technical Details
Voltage
240/208 Volts
Amps
40
Modules Required
No
ADA Compliant
Yes
Function
Sabbath Mode
No
Hot Surface Indicator Light
Yes
Burners / Elements
4
Induction
Yes
Downdraft Venting
No
Control Type
Touch Sensor
Burners
4
Specifications
Power Supply Connection Location
Right Center Rear
Shipping Weight
62 lbs.
Product Weight
54 lbs.
Approved for Single Oven Combination Installation
Yes
Armored Electrical Cable
Included
Minimum Circuit Required (Amps)
40
Amps @ 240/208 Volts
33.8/34.1
Connected Load (kW Rating) @ 240/208 Volts
8.1/7.1
Appearance
Type
Drop-In
Surface Color
Black
Color
Black
Cooktop
Cooktop
Style
Smoothtop
Fuel Type
Electric
Notes
1
Approved to be used over any Electrolux Single Wall Oven
Dimensions
Cutout Height (min.)
6"
Cutout Width (min.-max.)
29 3/4" - 30"
Cutout Depth (min.-max.)
20 3/8" - 20 1/2"
Overall Exterior Height (Extreme Bottom to Topside of Cooktop)
6"
Overall Exterior Width
30 3/4"
Overall Exterior Depth (to Front Corner)
21 1/2"
Overall Exterior Depth (to Center of Arc)
21 3/4"
36" Induction Hybrid Drop-In Cooktops
Sabbath Mode (Star-K Certified)
Yes
Dimensions
Actual Width
30 3/4 Inch
Actual Depth
21 3/4 Inch
Actual Height
6 Inch
Cutout Height
6"
Cutout Depth
20 3/8 Inch
Cutout Width
29 3/4 Inch
Burner Output
Griddle
No
Grill
No
Set 4 Output
1200
Set 4 QTY
1
Set 3 Output
1500
Set 3 QTY
1
Set 2 Output
3000
Set 2 QTY
1
Set 1 Output
3200
Set 1 QTY
1
General
Manufacturer
Electrolux
