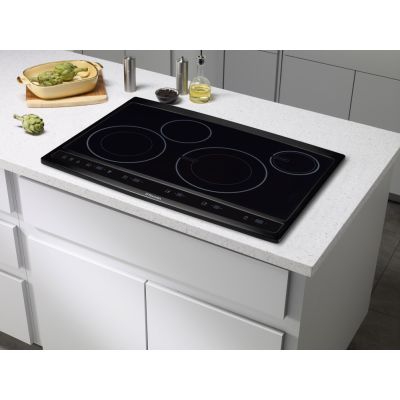

About the Electrolux EW30IC60LB
- 4 Cooking Zones
- Cookware Compatibility
- Keep Warm Setting
- Perfect Set Controls
Brand:
Cooktop Type:
Cooktop
Finish:
Black
Fuel Type:
Induction
Style:
Smoothtop
Width:
30 3/4"
Height:
4 3/8"
Depth:
21 1/2"
Cutout Width:
29 3/4"
Cutout Depth:
20 3/8"
Volts:
240/208 Volts
Amps:
40
Electrolux induction hybrid cooktops include a combination of electric elements that are compatible with all cookware, and induction elements that are compatible with most cookware. If a magnet sticks to the bottom of the pot or pan, it will work. Induction is more responsive than a gas cooktop, you can instantly adjust the heat to a delicate simmer or bring to a quick boil. Power Assist Function generates rapid heat for a quick boil.
Key Features
More Energy-Efficient
- Cooking with induction is 70% more efficient than gas and 20% more efficient than electric.
More Responsive
- Cooking with induction is more responsive than gas or electric - you can instantly adjust the heat to a delicate simmer or bring it to a quick boil.
Exceptional Temperature Control
- Adjust heat with greater accuracy than gas or electric cooktops, especially at lower settings. Perfect for melting chocolate and cooking delicate foods and sauces.
Cooking Flexibility
- The sensors automatically detect the presence of magnetic cookware, activate the induction field, and adjust it to the exact size of the pan.
Perfect Set Controls
- With up to 10 digital preset touch settings you can quickly raise or lower temperatures, so cooking can begin at any time - without waiting for preheating.
Cooktop Stays Cooler
- With induction cooking, heat is generated directly in the cookware, so the cooktop stays cooler to the touch - making it easier to clean.
Keep Warm Setting
- Maintain food at the perfect serving temperature with this setting - it's a great feature when you're entertaining.
Cookware Compatibility
- Electrolux induction cooktops include elements that are compatible with most cookware - if a magnet sticks to the bottom of the pan, it works.
Power Assist Function
- Generates rapid heat for a quick boil.
Kitchen Timer
- Easy to read at a glance and conveniently located near your cooktop controls.
Available at Designer Appliances
- www.designerappliances.com
EW30IC60LB Complete Owner's Guide (English)
Key Features
Boil water in 90 seconds
Inspired by professional performance & power, the induction cooktop boils water in 90 seconds!
Cooktop Stays Cooler
With induction cooking, heat is generated directly in the cookware, so the cooktop stays cooler to the touch - making it easier to clean.
Adapts to Different Pot & Pan Sizes
The induction cooktop adapts to different pot & pan sizes to provide perfectly consistent heat for delicious results.
Specifications
GTIN
Weights and Dimensions
Shipping Weight
60 Lbs.
Height
4 3/8"
Depth
21 1/2"
Width
30 3/4"
Electrical Requirements
Required Electrical Components
Single phase 4-wire cable, 120/240 Volts or 120/208 Volts, 60 Hz, fused on both sides of line with ground.
Minimum Circuit Required
40 A
Amps@240/208 Volts
35/35.1
Connected Load @ 240/208 Volts
8.4/ 7.3 KW
Power Supply Connection Location
Right Center Rear
Approved for Single Oven Combination Installation
Yes
Armored Electrical Cable
Included
Features
Sealed Spill Control Cooktop
Yes
Hot-Surface Indicator Lights
Yes
Keep Warm Setting
Yes
6" Induction Cooking Element - 1450W/2000W
1
7" Induction Cooking Element - 1900W/2600W
1
10" Induction Cooking Element - 2600W/3900W
1
8" Induction Cooking Element - 2300W/3200W
1
Ceramic Smoothtop Glass Surface
Yes
Perfect Set Electronic Touch Controls
Yes
Product Information
Model
EW30IC60LB
Brand
Electrolux
UPC
057112106700
Warranty Terms
1 year ? Frigidaire Appliances are backed with a one year warranty. For additional information visit https://www.frigidaire.com/en/warranty/warranty-information
Appearance
Type
Drop-In
Number of Burners
4
Trim Color
Black
Surface Color
Black
Color
Black
Cooktop
Cooktop
Style
Smoothtop
Fuel Type
Induction
Burner Output
Burner 4 Output
2000
Burner 3 Output
2600
Burner 2 Output
3200
Burner 1 Output
3900
Set 3 Output
2600
Set 3 QTY
1
Set 2 Output
3200
Set 2 QTY
1
Set 1 Output
3900
Set 1 QTY
1
Set 4 QTY
1
Set 4 Output
2000
Grill
No
Griddle
No
Appearance
Product Type
Cooktop
Installation Type
Drop-In
Cooking Surface
Black Ceramic Glass
Certifications & Approvals
ADA Compliant
Yes
Agency Approval
UL/CSA
Cooking Controls
Controls
Wave-Touch
Control Lock
Yes
Display Type
Blue LED
Power On/Off Control
Yes
Kitchen Timer
Yes
Keep Warm Setting
Yes
Dimensions
Cutout Depth
20 3/8 Inch
Cutout Width
29 3/4 Inch
Actual Height
4 3/8 Inch
Actual Depth
21 1/2 Inch
Actual Width
30 3/4 Inch
Technical Details
Voltage
240/208 Volts
Amps
40
Modules Required
No
Star-K Certified
No
ADA Compliant
Yes
Function
Sabbath Mode
No
Hot Surface Indicator Light
Yes
Induction
Yes
Downdraft Venting
No
Control Type
Touch Sensor
Burners
4
Burners / Elements
4
General
Manufacturer
Electrolux
