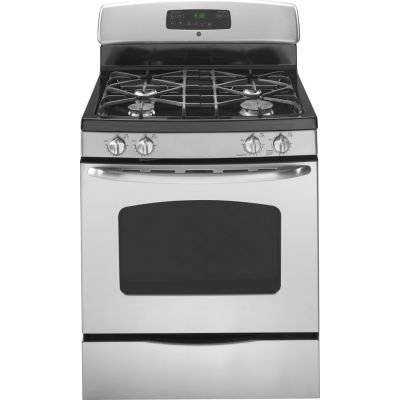

About the GE JGB3001ERSS
- 30" Freestanding Gas Range with 4 Sealed Burners Including PowerBoil Burner
- Precise Simmer Burner
- 5.0 cu. ft. Self Clean Oven
- Continuous Grates and Storage Drawer: Stainless Steel
Brand:
Style:
Freestanding
Width:
30"
Height:
47 1/4"
Depth:
26 3/4"
Capacity:
5 cu. ft.
Burners:
5
Convection:
Yes
Self Clean:
Yes
Griddle:
No
Grill:
No
Fuel Type:
Gas
Volts:
120 Volts
Amps:
15
The sleekly elegant new look of GE Profile and GE free-standing ranges makes it simple to immediately update the style of any kitchen, creating a fresh, new appearance without extensive remodeling. Available in both gas and electric models, the redesigned ranges are ideal for enhancing kitchen appearance for resale value or replacing an outdated appliance.
Key Features
Self-clean oven
- Self-clean allows you to spare yourself from the trouble and effort it takes to scrub the oven interior.
Super-large oven capacity
- Remarkably large oven interior is ideal for holidays, dinner parties and everyday family cooking.
Heavy-cast continuous grates
- Matte-finish, connected cooktop grates provide a study, uninterrupted surface that allows pots and pans to move easily.
Deep-recessed cooktop
- Deep recessed cooktop keeps spills, and everything else, contained in one area that's easy to wipe clean.
PowerBoil 15,000 BTU burner
- This powerful element instantly supplies the intense heat need for boiling, sauteing and stir frying.
Precise Simmer burner
- Allows for low, even heat distribution that is ideal delicate foods and sauces.
TrueTemp oven system
- This feature helps ensure the temperature you set is the temperature you get, with less variance, to give you the baking and broiling performance you desire.
JGB3001ERSS Installation Instructions
Specifications
Technical Details
ADA Compliant
No
Amps
15
Ignition Type
Electronic
LP Conversion
Yes
Oven BTUs
16000
Star-K Certified
Yes
Voltage
120 Volts
Oven Features
Broiler Element Location
Top
Convection
Yes
Delay Bake
Yes
Digital Temperature Display
Yes
Interior Oven Light
Yes
Oven Control Type
Digital
Primary Oven Capacity
5 cu. ft.
Proofing
No
Racks
2
Removable Door
Yes
Sabbath Mode
Yes
Self-Cleaning
Yes
Temperature Probe
No
Timer
Yes
Cooktop Features
Burners / Elements
5
Cooktop Control Type
Knobs
Downdraft Ventilation
No
Griddle
No
Grill
No
Hot Surface Indicator Light
No
Induction
No
Modules Required
No
Appearance
Clock
Yes
Color
Stainless Steel
Continuous Grates
Yes
Cooktop
Sealed Burner
Drawer
Storage
Fuel Type
Gas
Stainless Steel Handle
Yes
Style
Freestanding
Viewing Window
Yes
Dimensions
Depth
26 3/4"
Height
47 1/4"
Interior Depth
19"
Interior Height
19"
Interior Width
24"
Width
30"
Burner Output
Set 1 Output
17000
Set 1 QTY
1
Set 2 Output
11000
Set 2 QTY
1
Set 3 Output
9500
Set 3 QTY
1
Set 4 Output
8000
Set 4 QTY
1
Set 5 Output
5000
Set 5 QTY
1
Capacity
Capacity
5.0 cu. ft.
Unit Capacity
Super Large Oven
Dimensions and Weight
Approximate Shipping Weight
215 lbs.
Depth With Oven Door Open 90 Degrees (in.)
46 3/8"
Height to Cooking Surface
36" +/- 1/4"
Net Weight
195 lbs.
Oven Interior Dimensions (W x H x D)
24" x 19" x 19"
Overall Depth
26 5/8"
Overall Height
47"
Overall Width
30"
Performance
Burner - Center
8,000 BTU Oval
Burner - Left Front
11,000 BTU
Burner - Left Rear
9,500 BTU
Burner - Right Front
17,000 BTU Power Boil
Burner - Right Rear
5,000 BTU Precise Simmer
Total Capacity
5.0 cu. ft.
Cooktop Surface
Color
Color-Matched
Continuous Grates
Yes
Cooktop Burner Grate Material
Heavy Cast
Cooktop Burner Type
Sealed
Design
Recessed, One-Piece Upswept
Dishwasher Safe Grates
Yes
High Output Burner
(1) 15000 BTU
Material
Porcelain-Enamel
Precise Simmer Burner
(1) 5000 BTU/140F degree simmer
Valves (Degree of Turn)
270
Dimensions and Weights
Approximate Shipping Weight
210 Lbs.
Depth with Door Open 90°
46 1/2"
Depth without Handle
26 3/4"
Height to Cooking Surface
36 1/4"
Net Weight
190 Lbs.
Oven Interior Depth
19"
Oven Interior Height
19"
Oven Interior Width
24"
Product Depth
26 3/4"
Product Height
47 1/4"
Product Width
30"
Power / Ratings
Electrical Requirements
120V; 60Hz; 5A
Oven/Broiler BTU Rating - LP (000's BTU's)
16.0 Oven / 12.0 Broiler
Oven/Broiler BTU Rating - Nat. Gas (000's BTU's)
16.0 Oven / 13.5 Broiler
Top Burner BTU Rating - LP (000's BTU's)
(2) 10; (1) 9.5; (1) 5.0
Top Burner BTU Rating - Nat. Gas (000's BTU's)
(1) 15.0; (1) 11.0; (1) 9.5; (1) 5.0
Oven/Broiler BTU Rating - Nat. Gas (000's BTU
16.0 Oven / 13.5 Broiler
Top Burner BTU Rating - Nat. Gas (000's BTU's
(1) 15.0; (1) 11.0; (1) 9.5; (1) 5.0
Warranty
Labor Warranty
Limited 1 Year Entire Appliance
Parts Warranty
Limited 1 Year Entire Appliance
Warranty Notes
See Written Warranty for Full Details
Features
Control Type
Electronic Touch
Cooking Technology
Convection
Cooktop Burner Grate Features
Continuous Grates
Cooktop Burner Grate Material
Heavy Cast Iron
Cooktop Burner Type
Sealed
Cooktop Surface
Deep Recessed; One PIece Upswept; Porcelain Enamel
Fuel Type
Natural Gas
Ignition System
Electronic
Interior Oven Light
1 Auto Incandescent
Oven Cleaning Type
Self Clean with Steam Clean Option
Oven Control Features
Auto Self Clean; Certified Sabbath Mode
Oven Cooking Modes
Convection Bake
Oven Rack Features
2 Self Clean Oven Racks
Oven Control Features
Audible Preheat Signal
Yes
Auto Oven Shut-Off
Yes
Auto Self Clean
Yes
Certified Sabbath Mode
Yes
Electronic Clock and Kitchen Timer
Yes
Hi / Low Broil
Yes
In-Oven Broiling
Yes
Oven "ON" Light
Yes
Oven Cycle Light
Yes
Self-Clean Cool Down Time Display
Yes
General Features
Cleaning Time
Variable
Clock and Minute Timer
Electronic
Configuration
Range with Storage Drawer
Control Type
SmartLogic Electronic
Cooking Technology
Traditional
Digital Temperature Display
Yes
Fuel Type
Natural Gas (factory set)
Ignition System
Electronic
Interior Oven Light
Yes
Leveling System
4 Leveling Legs
Oven Cleaning Type
Self-Clean
Oven Rack Features
2 Self-Clean Oven Racks, 6 Embossed Rack Positions
QuickSet IV Controls
Yes
Scratch-Resistant Backguard
Stainless or Porcelain-Enameled
Storage Drawer Features
Liner
Temperature Management System
TrueTemp System
Accessories
LP Conversion Kit
Included
Appearance
Available Colors
Stainless Steel, Black, White
Configuration
Range with Storage Drawer
Control Knobs
Color Matched
Cooktop Burner Grate Color
Black Matte
Frameless Oven Door(s)
Stainless Steel
Handle
Color Matched; Designer Style
Oven Door Features
Big View Oven Window
Power Rating
Bake/Broiler BTU Rating - LP (000's BTU's)
16.0 Bake / 12.0 Broiler
Bake/Broiler BTU Rating - Nat. Gas (000's BTU's)
16.0 Bake / 12.5 Broiler
Electrical Requirements
120V; 60Hz; 5A
Top Burner BTU Rating - LP (000's BTU's)
(1) 11.0; (1) 10.0; (1) 9.5; (1) 5.0; (1) 6.0
Top Burner BTU Rating - Nat. Gas (000's BTU's)
(1) 17.0; (1) 11.0; (1) 9.5; (1) 5.0; (1) 6.0
General
Manufacturer
GE
