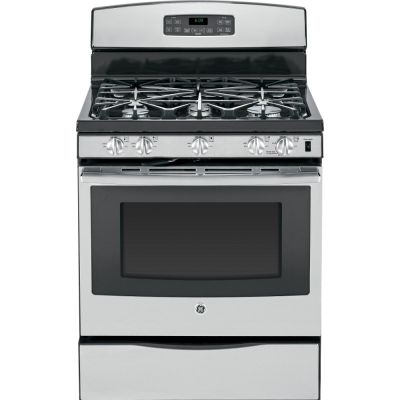

About the GE JGB695SEFSS
- 30" Freestanding Gas Range with 5 Sealed Burners
- 17,000 BTU PowerBoil Burner
- 5.0 cu. ft. Convection Oven
- Self-Clean with Steam Clean Option
- Storage Drawer and Big View Oven Window: Stainless Steel
Brand:
Style:
Freestanding
Width:
30"
Height:
47 1/4"
Depth:
26 3/4"
Capacity:
5 cu. ft.
Burners:
5
Convection:
Yes
Self Clean:
Yes
Griddle:
No
Grill:
No
Fuel Type:
Gas
Volts:
120 Volts
Amps:
15
GE appliances answer real-life needs. Define trends. Simplify routines. And upgrade the look and feel of the living space. Through ingenuity and innovation, next generation features are solving real-life needs. With a forward-thinking tradition that spans over 100 years, today's GE appliances sync perfectly with the modern lifestyle.
Looking For A New GE Range?
A GE gas range will meet all your cooking needs for years to come: from warming a simple pan of soup for one person, to handling a large dinner party or holiday meal for the whole family. Plus, your stove will look great in your kitchen, and clean up with ease.
Key Features
17,000 BTU Power Boil Burner
- Delivers intense heat for fast boiling.
Center Oval Burner
- Large oval fifth burner is ideal for griddle or odd-size cookware.
Precise Simmer Burner
- Delicate foods don't burn with low, even heat.
Self-Clean with Steam Clean Option
- Clean your oven the way you want.
Gas Convection Oven
- Circulates heat for high-quality results.
Self-Clean Heavy Duty Oven Racks
- Conveniently clean your oven and racks together.
Heavy Cast, Continuous Grates
- Allow for easy movement of pans between burners.
Available at Designer Appliances.
www.designerappliances.com
JGB695SEFSS Use and Care Manual
Specifications
Technical Details
LP Conversion
Yes
Amps
15
Voltage
120 Volts
Oven BTUs
16000
Star-K Certified
Yes
Ignition Type
Electronic
Features
Control Type
Electronic Touch
Cooktop Burner Grate Material
Heavy Cast Iron
Oven Cooking Modes
Convection Bake
Cooktop Burner Grate Features
Continuous Grates
Cooktop Surface
Deep Recessed; One PIece Upswept; Porcelain Enamel
Ignition System
Electronic
Cooktop Burner Type
Sealed
Oven Rack Features
2 Self Clean Oven Racks
Interior Oven Light
1 Auto Incandescent
Oven Control Features
Auto Self Clean; Certified Sabbath Mode
Cooking Technology
Convection
Fuel Type
Natural Gas
Oven Cleaning Type
Self Clean with Steam Clean Option
Appearance
Configuration
Range with Storage Drawer
Handle
Color Matched; Designer Style
Control Knobs
Color Matched
Oven Door Features
Big View Oven Window
Performance
Total Capacity
5.0 cu. ft.
Burner - Right Front
17,000 BTU Power Boil
Burner - Left Front
11,000 BTU
Burner - Right Rear
5,000 BTU Precise Simmer
Burner - Left Rear
9,500 BTU
Burner - Center
8,000 BTU Oval
Dimensions and Weights
Oven Interior Depth
19"
Oven Interior Height
19"
Depth with Door Open 90?
46 1/2"
Depth without Handle
26 3/4"
Height to Cooking Surface
36 1/4"
Net Weight
190 Lbs.
Approximate Shipping Weight
210 Lbs.
Oven Interior Width
24"
Product Height
47 1/4"
Product Width
30"
Product Depth
26 3/4"
Depth with Door Open 90°
46 1/2"
Power Rating
Top Burner BTU Rating - LP (000's BTU's)
(1) 11.0; (1) 10.0; (1) 9.5; (1) 5.0; (1) 6.0
Top Burner BTU Rating - Nat. Gas (000's BTU's)
(1) 17.0; (1) 11.0; (1) 9.5; (1) 5.0; (1) 6.0
Bake/Broiler BTU Rating - LP (000's BTU's)
16.0 Bake / 12.0 Broiler
Bake/Broiler BTU Rating - Nat. Gas (000's BTU's)
16.0 Bake / 12.5 Broiler
Electrical Requirements
120V; 60Hz; 5A
Warranty
Parts Warranty
Limited 1 Year Entire Appliance
Labor Warranty
Limited 1 Year Entire Appliance
Warranty Notes
See Written Warranty for Full Details
Appearance
Fuel Type
Gas
Style
Freestanding
Color
Stainless Steel
Cooktop
Sealed Burner
Continuous Grates
Yes
Stainless Steel Handle
Yes
Viewing Window
Yes
Drawer
Storage
Clock
Yes
Dimensions
Interior Depth
19"
Interior Height
19"
Interior Width
24"
Height
47 1/4"
Width
30"
Depth
26 3/4"
Burner Output
Set 1 QTY
1
Set 1 Output
17000
Set 2 QTY
1
Set 2 Output
11000
Set 3 QTY
1
Set 3 Output
9500
Set 4 QTY
1
Set 4 Output
8000
Set 5 QTY
1
Set 5 Output
5000
Cooktop Features
Burners / Elements
5
Cooktop Control Type
Knobs
Downdraft Ventilation
No
Modules Required
No
Hot Surface Indicator Light
No
Induction
No
Grill
No
Griddle
No
Oven Features
Self-Cleaning
Yes
Delay Bake
Yes
Proofing
No
Sabbath Mode
Yes
Broiler Element Location
Top
Temperature Probe
No
Interior Oven Light
Yes
Racks
2
Removable Door
Yes
Convection
Yes
Timer
Yes
Primary Oven Capacity
5 cu. ft.
Oven Control Type
Digital
Digital Temperature Display
Yes
General
