discontinued
There is a newer model of this item:
Need help finding a replacement?
-
Call us at
888-714-4938
Accessories
3 Item(s)

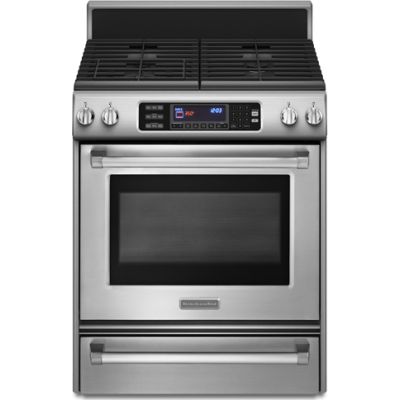

About the KitchenAid KDRS807XSP
- 30" Freestanding Dual Fuel Range with 4 Sealed Burners
- TripleTier Burner
- 4.1 cu. ft. True Convection Oven
- Self-Clean
- InstaWok Grate and Warming Drawer
Brand:
Series:
Pro Line
Style:
Freestanding
Width:
30"
Height:
42"
Depth:
27 1/4"
Capacity:
4.1 Cu. Ft.
Burners:
4
Convection:
Yes
Self Clean:
Yes
Griddle:
No
Grill:
No
Fuel Type:
Dual Fuel
Volts:
240/208 Volts
Amps:
30
It all started in 1919 with the legendary stand mixer. In the 90 years since, they have built an entire kitchen of cooking and cleaning products around the same quality craftsmanship, versatile technology and timeless style. Through it all, the secret ingredient to their success has always been you. Available at Designer Appliances.
KitchenAid has spent decades creating innovative products for the well-equipped kitchen. From commercial grade cooktops and wine cellars to stand mixers and an impressive assortment of cookware, bakeware and accessories, they offer virtually every culinary essential you could need.
True Convection Dual Fuel Range
Bring bold, professional styling into your kitchen with a Pro Line Series dual fuel range. This model delivers exceptional results with a TripleTier burner that can handle any task and the Even-Heat True Convection System which offers even cooking on three racks.
Key Features
Self-Clean System with Soil Level/Time Selections
4.1 Cu. Ft. Capacity
Even-Heat True Convection System
- Provides consistent heating and even cooking on both lower oven racks.
EasyConvect Time and Temperature Conversion System
- Takes the guesswork out of convection cooking.
Built-In Warming Drawer
- The built-in warming drawer allows you to keep cooked food warm or warm plates before serving.
Large Glass-Touch Oven Display
- Features a responsive, easy-to-use interface and is easy to clean.
(1) 15,000 BTU TripleTier Burner with InstaWok Grate
- Available at Designer Appliances.
- www.designerappliances.com
KDRS807XSP Owners Manual
Specifications
Oven Features
Cleaning System
Variable Time Self-Cleaning
Temperature Probe
Yes
Bread Proofing and Dehydration Functions
Yes
CleanBake Hidden Element
No
Cleaning Type
Self-Cleaning
Closed-Door Convection Broiling
Yes
Delay Bake
Yes
Number of Racks
3
Oven Hold Warm
No
Oven Light
2
Oven window
Yes
Sabbath Mode Functions
Yes
Window Size
Extra Large
Automatic Door Latch
Yes
Convection Bake/Broil/Roast
Yes
General
Series
Pro Line
Manufacturer
KitchenAid
Appearance
Fuel Type
Dual Fuel
Style
Freestanding
Color
Stainless Steel
Cooktop
Sealed Burner
Continuous Grates
Yes
Stainless Steel Handle
Yes
Viewing Window
Yes
Drawer
Warming
Clock
Yes
Dimensions
Width
30"
Depth
27 1/4"
Height
42"
Interior Width
25"
Interior Depth
16 3/4"
Interior Height
14 3/4"
Burner Output
Set 1 QTY
1
Set 1 Output
15000
Set 2 QTY
1
Set 2 Output
12500
Set 3 QTY
2
Set 3 Output
6000
Cooktop Features
Burners / Elements
4
Cooktop Control Type
Knobs
Downdraft Ventilation
No
Modules Required
No
Hot Surface Indicator Light
No
Induction
No
Grill
No
Griddle
No
Oven Features
Primary Oven Capacity
4.1 Cu. Ft.
Oven Control Type
Touchpad
Digital Temperature Display
Yes
Timer
Yes
Convection
Yes
Self-Cleaning
Yes
Delay Bake
No
Proofing
Yes
Sabbath Mode
Yes
Broiler Element Location
Top
Temperature Probe
Yes
Interior Oven Light
Yes
Removable Door
Yes
Racks
3
Technical Details
ADA Compliant
Yes
Ignition Type
Electronic
Oven Wattage
2000
LP Conversion
Yes
Amps
30
Voltage
240/208 Volts
Dimensions
Height
42 in.
Width
30 in.
Depth
27 1/4 in.
Depth Including Handles
27 1/4 in.
Cooktop Features
AccuSimmer Burner
No
Burner Type
Sealed Gas
Cooktop Style
Porcelain
Cooktop Surface
Porcelain-on-Steel
Grate Finish
PORCELAIN COATED CAST IRON
Keep Warm 5th Element
No
Simmer Burner
No
Dual Element Burner
No
Power Burner
No
Features
Broil and Serve Drawer
No
Broiler Type
Waist High
Control Lock Out Function
Yes
Door Style
Glass
Flush with Cabinet Design
No
Fuel Type
Dual Fuel
Installation Design
Freestanding
Pilotless Electronic Ignition
Yes
Storage Drawer
No
Time of Day Clock
Yes
Warming Drawer
Yes
Self-Cleaning
Yes
Performance
Burner Configuration
2 - 6,000 BTU; 1 - 600/14,000/15,000 BTU; 1 - 2,500 BTU
Temperature Management System
Standard
Bake Burner Rating
Not Applicable
Bake Element Rating
2000 Watts
Broil Burner Rating
Not Applicable
Broiler Element Rating
3240 Watts
Center Front Burner Rating
Not Applicable
Center Rear Burner Rating
Not Applicable
Inner/Outer Broil Element
1790/1450 Watts
Left Front Burner Rating
600 - 15,000 BTU Triple Tier
Left Rear Burner Rating
6,000 BTU
Right Front Burner Rating
6,000 BTU
Right Rear Burner Rating
12,500 BTU
Controls
Control Style
Glass Touch
Capacity
Oven Size
Super Capacity
Oven Capacity
4.1 Cubic foot
Electrical
Requirements
30 Ampere, 120/240 Volts, 60 Hertz (1/second), AC-ONLY. USE COPPER WIRE ONLY. A FOUR-WIRE OR THREE-WIRE, SINGLE PHASE ELECTRICAL SUPPLY REQUIRED. A TIME-DELAY FUSE OR CIRCUIT BREAKER AND SEPARATE CIRCUIT IS RECOMMENDED.
Notes
Anti-tip bracket
The floor anti-tip bracket MUST be installed. To install the inti-tip bracket shipped with the range, see Installation Instructions and the anti-tip bracket template.
