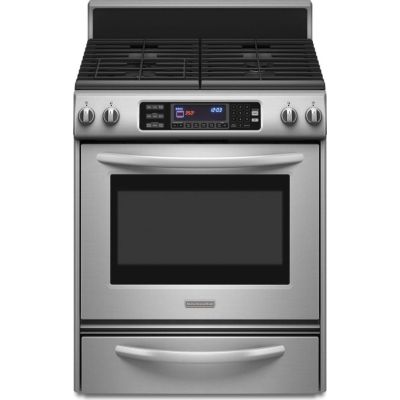

About the KitchenAid KDRS807SSS
- 30" Freestanding Dual Fuel Range with 15,000 BTU Triple Tier Sealed Burner
- 12,500 BTU Power Burner
- True Convection Oven
- Dual Full Surface Grates & Warming Drawer
Brand:
Series:
Architect Series II
Style:
Freestanding
Width:
30"
Height:
42"
Depth:
27 1/4"
Capacity:
4.1 Cu. Ft.
Burners:
4
Convection:
Yes
Self Clean:
Yes
Fuel Type:
Dual Fuel
Volts:
240/208 Volts
Amps:
30
Key Features
- Even-Heat True Convection System provides even heating throughout oven
- EasyConvect Time and Temperature Conversion System takes the guesswork out of convection cooking
- TripleTier 600-15K BTU burner handles everything from simmering to searing
- 12.5K BTU Burner
- 2 6K BTU Burner
- Use the InstaWok reversible grate for integrated wok cooking without an accessory
- Built-in warming drawer provides enhanced versatility
- Enhanced self-clean cycle includes an energy-saving Quick setting
- Closed-Door Convection Broil provides adjustable broiling performance for large or small quantities
- Temperature Probe
- Bread Proofing
- Dehydration
- Holiday/Sabbath Mode
- Full-Width Cast-Iron Grates
- Glass-Touch Oven Display with Control Lockout
- Front Knob Cooktop Controls
- 4.1 Cu. Ft. Oven Capacity
KDRS807SSS Owners Manual
Specifications
Technical Details
ADA Compliant
Yes
Amps
30
Ignition Type
Electronic
Oven Wattage
2000
Voltage
240/208 Volts
Oven Features
Broiler Element Location
Top
Convection
Yes
Delay Bake
No
Digital Temperature Display
Yes
Interior Oven Light
Yes
Oven Control Type
Touchpad
Primary Oven Capacity
4.1 Cu. Ft.
Proofing
Yes
Racks
3
Removable Door
Yes
Sabbath Mode
Yes
Self-Cleaning
Yes
Temperature Probe
Yes
Timer
Yes
Cooktop Features
Burners / Elements
4
Cooktop Control Type
Knobs
Downdraft Ventilation
No
Modules Required
No
Appearance
Clock
Yes
Color
Stainless Steel
Continuous Grates
Yes
Cooktop
Sealed Burner
Drawer
Warming
Fuel Type
Dual Fuel
Stainless Steel Handle
Yes
Style
Freestanding
Viewing Window
Yes
Dimensions
Depth
27 1/4"
Height
42"
Interior Depth
16 3/4"
Interior Height
14 3/4"
Interior Width
25"
Width
30"
General
Series
Architect Series II
Manufacturer
KitchenAid
Burner Output
Set 1 Output
15000
Set 1 QTY
1
Set 2 Output
12500
Set 2 QTY
1
Set 3 Output
6000
Set 3 QTY
2
Capacity
Oven Capacity
4.1 Cubic foot
Oven Size
Super Capacity
Performance
Bake Burner Rating
Not Applicable
Bake Element Rating
2000 Watts
Broil Burner Rating
Not Applicable
Broiler Element Rating
3240 Watts
Burner Configuration
2 - 6,000 BTU; 1 - 600/14,000/15,000 BTU; 1 - 2,500 BTU
Center Front Burner Rating
Not Applicable
Center Rear Burner Rating
Not Applicable
Inner/Outer Broil Element
1790/1450 Watts
Left Front Burner Rating
600 - 15,000 BTU Triple Tier
Left Rear Burner Rating
6,000 BTU
Right Front Burner Rating
6,000 BTU
Right Rear Burner Rating
12,500 BTU
Temperature Management System
Standard
Dimensions
Depth
27 1/4 in.
Depth Including Handles
27 1/4 in.
Height
42 in.
Width
30 in.
Notes
Anti-tip bracket
The floor anti-tip bracket MUST be installed. To install the inti-tip bracket shipped with the range, see Installation Instructions and the anti-tip bracket template.
Cooktop Features
AccuSimmer Burner
No
Burner Type
Sealed Gas
Cooktop Style
Porcelain
Cooktop Surface
Porcelain-on-Steel
Dual Element Burner
No
Grate Finish
PORCELAIN COATED CAST IRON
Keep Warm 5th Element
No
Power Burner
No
Simmer Burner
No
Features
Broil and Serve Drawer
No
Broiler Type
Waist High
Control Lock Out Function
Yes
Door Style
Glass
Flush with Cabinet Design
No
Fuel Type
Dual Fuel
Installation Design
Freestanding
Pilotless Electronic Ignition
Yes
Self-Cleaning
Yes
Storage Drawer
No
Time of Day Clock
Yes
Warming Drawer
Yes
Controls
Control Style
Glass Touch
Oven Features
Automatic Door Latch
Yes
Bread Proofing and Dehydration Functions
Yes
CleanBake Hidden Element
No
Cleaning System
Variable Time Self-Cleaning
Cleaning Type
Self-Cleaning
Closed-Door Convection Broiling
Yes
Convection Bake/Broil/Roast
Yes
Delay Bake
Yes
Number of Racks
3
Oven Hold Warm
No
Oven Light
2
Oven window
Yes
Sabbath Mode Functions
Yes
Temperature Probe
Yes
Window Size
Extra Large
Electrical
Requirements
30 Ampere, 120/240 Volts, 60 Hertz (1/second), AC-ONLY. USE COPPER WIRE ONLY. A FOUR-WIRE OR THREE-WIRE, SINGLE PHASE ELECTRICAL SUPPLY REQUIRED. A TIME-DELAY FUSE OR CIRCUIT BREAKER AND SEPARATE CIRCUIT IS RECOMMENDED.
