discontinued
There is a newer model of this item:
Need help finding a replacement?
-
Call us at
888-714-4938
Frequently Bought Together
5 Item(s)
-
Viking VCIH3608BK 36" Island Chimney Range Hood with Optional Internal/External Blowers, Halogen Lights and Heat Sensor (Blowers Not Included): Black$2,680.00 Save $481.00$2,199.00Out of stock

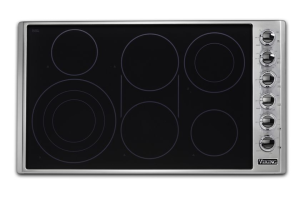

About the Viking VECU1666BSB
- 36" Smoothtop Electric Cooktop with 6 QuickCook Surface Elements
- Bridge Element and Push-to-Turn Safety Feature: Stainless Steel
Brand:
Cooktop Type:
Cooktop
Finish:
Stainless Steel
Fuel Type:
Electric
Style:
Smoothtop
Width:
36 3/4"
Height:
4 3/4"
Depth:
21"
Cutout Width:
34 3/4"
Cutout Height:
3 1/8"
Cutout Depth:
19 3/16"
Volts:
240/208 Volts
Amps:
50
When people think of Viking, the bold, commercial look of the Professional Series range is the image that most likely pops into their heads. Ultra-premium features like high-performance burners, convection baking, and infrared broiling easily handle everything from crème brûlée to rack of lamb. The legendary Viking range is available in gas and electric models, as well as an array of sizes and finishes to fit any kitchen.
And for those who want professional performance without the professional look, there is the Designer Series. Clean lines and contours meld gracefully into cabinets with style, offering a striking new look for Viking. Fully equipped with outstanding features and power, this complete line of built-in products doesn't sacrifice any of the world-renowned Viking performance for fashion's sake. Haute couture meets haute cuisine.
Viking doesn't see the kitchen as a collection of products, but a complete cooking environment. Cooking isn't a chore - it's an art form. Everything must work together in form and function. Both the Professional and Designer lines deliver the ultimate in performance with a cohesive look for the kitchen. Each line offers a full range of products, so you don't have to resort to mixing and matching brands and styles. Viking offers the truly consistent ultra-premium kitchen. The complete Viking kitchen is complete perfection.
The electric cooktops bring electric professional performance to the counter with QuickCook surface elements reaching full power in about three seconds. A bridge element provides a continuous front-to-back cooking surface.
MFG SKU VECU166-6BSB
Key Features
Commercial-Type Cooking Power
- Quickcook surface elements utilize ribbon technology - elements reach full power in about three seconds
- Bridge element between center front and center rear elements
- Wide range of surface element sizes and wattages
- Left front - dual element - 8 1/4" 2,200-watt / 4 3/4" 750-watt element
- Left rear - 6 1/2" 1,500-watt element
- Center front - 7" 1,800-watt element
- Center rear - 7" 1,800-watt element; 800-watt bridge
- Right front - 6" 1,200-watt element
- Right rear - dual element - 9" 2,500-watt/6" 1,000-watt element
- High infrared transmission for fast cooking, regardless of the type of cookware used
Easy Operation and Cleanup
- Glass ceramic top with stainless steel frame/control panel
- Extremely durable, wear-resistant surface
- Metal knobs with childproof, push-to-turn safety feature
- Smooth, wear-resistant glass ceramic surface for excellent cleanability
- Customer-removable knobs
- Overall/burner box dimensions designed to fit the majority of similarly sized cooktop cutouts
Exclusive Finishes
- Available in Stainless Steel/Black (SB), featuring black glass and knobs or Stainless Steel/White (SW), featuring white glass and white knobs
- May be ordered with Brass Trim Option for knob bezels, control panel frame, and nameplate
- All brass components have a durable protective coating for maintenance-free normal use
Warranty Highlights
- One-year full covers complete product
- Five-year limited - electric elements
- Ninety-day limited - cosmetic parts, painted items and decorative items
Specifications
Dimensions and Weights
Approximate Shipping Weight
63.0 Lbs.
Cutout Depth
19 3/16" Min. - 20" Max.
Cutout Width
34 3/4" Min. - 35 3/4" Max.
Overall Height To Bottom Edge Of Frame
2 5/8"
Overall Height To Top Of Cooking Surface
3 1/2"
Overall Height
4 3/4"
Overall Depth
21"
Overall Width
36 3/4"
Overall Dimensions
Overall Height from Bottom
5" (12.7 cm)
Overall Width
36 3/4" (93.3 cm)
Overall Depth from Rear
21" (53.3 cm)
Others
Approximate Shipping Weight
63 Lbs. (28.4 kg)
Maximum Amp Usage
240V - 46.3 Amps; 208V - 46.3 Amps
Electrical Requirements
240-208/120 VAC; 50/60Hz
Technical Details
Voltage
240/208 Volts
Amps
50
Modules Required
No
ADA Compliant
No
Star-K Certified
No
Function
Sabbath Mode
No
Hot Surface Indicator Light
Yes
Induction
No
Downdraft Venting
No
Control Type
Knobs
Burners
6
Cutout Dimensions
Cutout Width
34 3/4" (88.3 cm) to 35 1/2" (90.2 cm)
Cutout Height
3 1/8" (7.9 cm)
Cutout Depth
19 1/8" (48.6 cm) to 19 7/8" (50.5 cm)
Element Ratings
Bridge Element Rating
800 Watts
Left Rear Element Rating
6 1/2" @ 1,200 Watts
Left Front Element Rating
12" Triple @ 1,100/1,000/1,100 Watts
Center Rear Element Rating
8 1/2" @ 1,800 Watts
Center Front Element Rating
8 1/2" @ 1,800 Watts
Right Rear Element Rating
8 1/2" Dual @ 1,000/1,000 Watts
Right Front Element Rating
6 1/2" @ 1,200 Watts
Burner Output
Griddle
No
Grill
No
Set 5 Output
1200
Set 5 QTY
1
Set 4 Output
1000/1000
Set 4 QTY
1
Set 3 Output
1100/1000/1100
Set 3 QTY
1
Set 2 Output
1200
Set 2 QTY
2
Set 1 Output
1800
Set 1 QTY
2
Appearance
Surface Color
Black
Color
Stainless Steel
Cooktop
Cooktop
Style
Smoothtop
Fuel Type
Electric
Trim Color
Stainless Steel
General
Series
Professional
Manufacturer
Viking
Burner Ratings
Right Front Surface Element Rating
240V - 1200 Watts, 208V - 900 Watts
Right Rear Surface Element Rating
240V - 2500 Watts, 208V - 1875 Watts
Center Front Surface Element Rating
240V - 1800 Watts, 208V - 1350 Watts
Bridge Surface Element Rating
240V - 800 Watts, 208V - 600 Watts
Center Rear Surface Element Rating
240V - 1800 Watts, 208V - 1350 Watts
Left Front Surface Element Rating
240V - 2200 Watts, 208V - 1650 Watts
Left Rear Surface Element Rating
240V - 1500 Watts, 208V - 1125 Watts
Dimensions
Actual Width
36 3/4"
Actual Depth
21"
Cutout Height
3 1/8"
Cutout Depth
19 3/16"
Cutout Width
34 3/4"
Actual Height
4 3/4"
