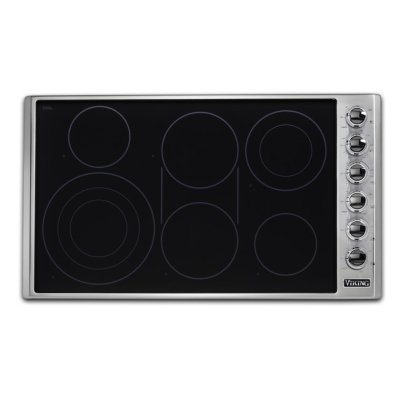

About the Viking VECU53616BSB
- 36" Electric Cooktop with 6 Elements including 800 Watt Bridge
- Hot Surface Indicator
- Up to 10 Cooking Zones
- QuickCook™ Surface and BlackChrome™ Knobs
Brand:
Finish:
Stainless Steel
Fuel Type:
Electric
Style:
Smoothtop
Width:
36 3/4"
Height:
6 1/8"
Depth:
21"
Cutout Width:
35 1/8"
Cutout Depth:
19 3/4"
Volts:
240/208 Volts
Amps:
40
Key Features
QuickCook™ surface
- Infrared elements with ribbon technology reach full power in three seconds and provide fast cooking with nearly all cookware
Up to 10 cooking zones
- including a 12 - 3,200 watt triple element, provide space and power options for most cookware
Bridge element
- connects front and rear elements to create a continuous heated surface for oversized cookware or optional griddle accessory
Infrared energy
- transfer provides fast cooking, regardless of type of cookware used cooking
Child proof
- push-to-turn metal knobs for safe use
Hot surface indicator
- Element lights indicate hot surfaces and active elements
Easy maintenance
- Durable, wear-resistant glass ceramic surface and laser-etched graphics withstand the rigors of regular cleaning
Knobs
- Removable knobs for quick, simple cleaning
Manuals & Downloads
VECU53616BSB Specification Sheet
Specifications
Product Information
Warranty Terms
2 years ? Viking Appliances are backed by a full two year warranty. For additional details, visit https://www.vikingrange.com/consumer/category/support
Model
VECU53616BSB
Brand
Viking
Dimensions and Weight
Cutout Depth
19 1/4 min- 19 3/4 max
Amps
240V-45.0 amps -208V 38.9 amps
Cutout Width
min 34 7/8- max 35 1/8
Frequency
60HZ
Width
36 3/4
Weight
53 lbs
Volts
240-208/120 VAC
Overall Height to top of knobs
6 1/8
Overall Height from bottom To top of cooking surface
4 7/8
Overall Depth from rear
21
Height to bottom edge of frame
4
Burner Output
Set 5 QTY
1
Set 5 Output
800
Set 4 QTY
1
Set 4 Output
2000
Set 3 QTY
2
Set 3 Output
1800
Set 2 QTY
2
Set 2 Output
1200
Set 1 QTY
1
Set 1 Output
3200
Burner 5 Output
800
Burner 4 Output
2000
Burner 3 Output
1800
Burner 2 Output
1200
Burner 1 Output
3200
Grill
No
Griddle
No
French Top
No
Technical Details
Voltage
240/208 Volts
Amps
40
GTIN
UPC
800284022534
Appearance
Trim Color
Stainless Steel
Surface Color
Black
Style
Smoothtop
Number of Burners
6
Glass Surface
Yes
Fuel Type
Electric
Color
Stainless Steel
Specifications:
Series
5 Series
Function
Burners / Elements
6
Hot Surface Indicator Light
Yes
Control Type
Knobs
Dimensions
Actual Width
36 3/4 Inch
Actual Height
6 1/8 Inch
Actual Depth
21 Inch
Cutout Width
35 1/8 Inch
Cutout Depth
19 3/4 Inch
General
Manufacturer
Viking
