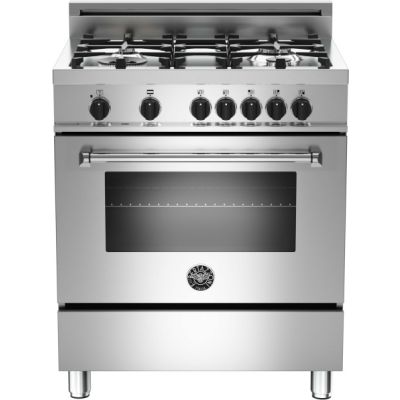

About the Bertazzoni MAS304DFMXELP
- Convection Oven
- Infrared Broiler
- 9 Cooking Modes
- 4 Sealed Burners
- 3.6 cu. ft. Capacity
Brand:
Series:
Master
Style:
Freestanding
Width:
30"
Height:
35 1/2"
Depth:
25 1/8"
Capacity:
3.6 Cu. Ft.
Burners:
4
Convection:
Yes
Self Clean:
No
Griddle:
No
Grill:
No
Fuel Type:
Dual Fuel
Volts:
240/208 Volts
Amps:
40
These handsome Bertazzoni Master Series ranges bring a true professional touch to your cooking. They are fully engineered for performance and designed with standard dimensions to work with existing kitchen layouts and units. Ranges are available in 48" (double oven), 36" and 30" widths.
Efficient dual-fuel models have been added to the line-up. Their electric ovens have convection and non-convection functions and are available in self-clean or manual clean. Gas oven models have a balanced air-flow fan and infrared broiler for versatile cooking performance.
All ranges feature different sized burners including the high-performance burner with two independently operated rings. This gives you outstanding control from low simmer to high output. The squared, one-piece high-efficiency stainless-steel worktops are easy to clean.
On gas models, the distinctive Bertazzoni Master Series dial gauge displays the heating progress of the oven. Ranges are controlled by large round soft-touch knobs and feature professional-style handles.
BERTAZZONI cooking products originate in Emilia-Romagna, a region world-famous for its food. Precision-engineered to the highest specifications by the Bertazzoni family, who have been making high-quality ranges since the beginning of the last century, every appliance bearing the Bertazzoni name represents an unwavering commitment to quality. Available at Designer Appliances.
Key Features
Unique Features
- 25-1/8" Depth allows range to sit flush with cabinetry (as opposed to other pro brands).
- 2 Year Parts and Labor Warranty is double the industry standard.
- One piece, full-width inner glass oven door allows for easy cleaning.
- All ranges include 4" stainless steel backguard (flat island trims optional).
- All ranges include wok ring and simmer plate.
Cooking with The Surface Burners
- 18,000 BTU dual control power burners.
- All burners in aluminum.
- High efficiency burners bring the flame closer to the pot to cook 30% faster.
- Mechanical flame-out safety system with thermocouples guarantees shut-off.
- One-piece worktop and sealed burners facilitate fast and easy cleaning.
Cooking with The Gas Oven
- Large capacity European convection oven is big enough for a 30 lb. turkey.
- Soft motion door hinges prevent slams, dropping and bounce-back.
- Full-width infrared broiler provides even heat over a large surface area.
- Special multi-layer glass door ensures minimal heat loss and safe outer surface temps.
- Low temperature settings include thermostat-controlled dehydration and fan-only defrosting.
Specifications
- Height of all ranges is adjustable between 35-1/2" - 37-1/4".
- All units ship Natural Gas unless otherwise noted (conversion kit to LP included).
- LP models and conversions available.
- LP models do not suffer the 20% loss in power seen in other brands.
- Available at Designer Appliances.
- www.designerappliances.com
Our Expert Video Review
Exclusive Video Review Bertazzoni Buying Guide [Exclusive In-Depth Review]
MAS304DFMXELP Installation Drawing
Specifications
Oven Features
Broiler Pan Included
Yes
Primary Oven Capacity
3.6 Cu. Ft.
Oven Control Type
Knobs
Digital Temperature Display
No
Timer
No
Convection
Yes
Self-Cleaning
No
Delay Bake
No
Proofing
No
Sabbath Mode
No
Broiler Element Location
Top
Temperature Probe
No
Interior Oven Light
Yes
Racks
2
Removable Door
No
Proof Mode
No
Product Information
Series
Master
Brand
Bertazzoni
Model
MAS304DFMXELP
MPN
MAS30 4 DFM XE
Warranty Terms
2 years ? Bertazzoni appliances are backed by a 2 year parts and labor warranty. For additional details visit https://us.bertazzoni.com/more/warranty-registration
Appearance
Fuel Type
Dual Fuel
Style
Freestanding
Color
Stainless Steel
Cooktop
Sealed Burner
Continuous Grates
Yes
Stainless Steel Handle
Yes
Viewing Window
Yes
Drawer
None
Clock
No
Fuel Subtype
Liquid Propane
Dimensions
Width
30 Inch
Depth
25 1/8 Inch
Height
35 1/2 Inch
Burner Output
Set 1 QTY
1
Set 1 Output
18000
Set 2 QTY
1
Set 2 Output
11000
Set 3 QTY
1
Set 3 Output
6500
Set 4 QTY
1
Set 4 Output
3400
Burner 1 Output
18000
Burner 2 Output
11000
Burner 3 Output
6500
Burner 4 Output
3400
Cooktop Features
Burners / Elements
4
Cooktop Control Type
Knobs
Downdraft Ventilation
No
Modules Required
No
Hot Surface Indicator Light
No
Induction
No
Grill
No
Griddle
No
Technical Details
ADA Compliant
No
Ignition Type
Electronic
LP Conversion
Yes
Amps
40
Voltage
240/208 Volts
Worktop
Gas Zones
4
Burners Type
Aluminum
Griddle
No
Design Worktop
Stainless Steel Squared
Worktop Control
Knobs
Knobs
Soft Touch
Pan Support
Cast Iron
Backguard
Yes
Thermocouple Safety Device
Yes
One Hand Ignition
Yes
Work Adapter
Yes
Simmer Ring
Yes
Cooking Zones
Semi-Rapid
6,500 BTU/h
Auxiliary
3,400 BTU/h
Simmer Rate
750 BTU/h
Griddle
No
Dual Wok
750 - 18,000 BTU/h
Rapid
11,000 BTU/h
Oven Cavity
Main Oven
Electric Convection with Electric Broiler
Main Oven Volume
3.6 Cu. Ft.
Auxiliary Oven
No
Temperature Gauge
No
Inner Oven Door
Full-Width Triple Glass
Cooling Fan
Yes
Baking Tray
1
Standard Wire Shelves
2
Grill Trivet For Tray
1
Stainless Steel Legs
Yes
Height-Adjustable Legs
Yes
Dimensions
Overall Height
35 1/2" - 37 1/4"
Overall Depth Of Side Panel
24"
Overall Depth
25 1/8"
Overall Width
30"
Certifications and Warranty
Warranty
2 Years Parts and Labor
Certification
CSA
Electrical Requirements
Max Amp Usage
12 Amps - 2,400 Watts, 13.5 Amps - 3,100 Watts
Frequency
60 Hz
Voltage
120/208 VAC - 120/240 VAC
Main Oven Functions
Broiler / Microwave
No
Convection / Microwave
No
Microwave
No
Self-Clean
No
Proofing
No
Warming / Sabbath Mode
No
Defrost / Dehydrate
Yes
Convection
Yes
Oven Light
Yes
Upper Bake
Yes
Bottom Bake / Gas Bake
Yes
Bake
Yes
Large Broiler
Yes
Broiler
Yes
Turbo / Gas Convection
No
Convection Bake
No
Convection Broiler
Yes
Capacity
Number of Burners
4
General
Manufacturer
Bertazzoni
