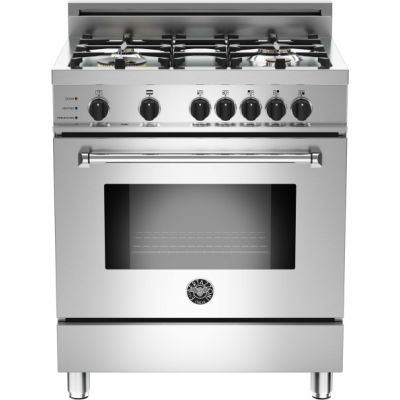

About the Bertazzoni MAS304DFSXTLP
- 4 Sealed Brass Burners
- 3.4 cu. ft. Convection Oven
- Self-Clean
- Infrared Broiler
- Telescopic Glide Shelf
Brand:
Series:
Master
Style:
Freestanding
Width:
30"
Height:
35 1/2"
Depth:
25 1/8"
Capacity:
3.4 Cu. Ft.
Burners:
4
Convection:
Yes
Self Clean:
Yes
Griddle:
No
Grill:
No
Fuel Type:
Dual Fuel
Volts:
240/208 Volts
Amps:
40
These handsome Bertazzoni Master Series ranges bring a true professional touch to your cooking. They are fully engineered for performance and designed with standard dimensions to work with existing kitchen layouts and units. Ranges are available in 48" (double oven), 36" and 30" widths.
Efficient dual-fuel models have been added to the line-up. Their electric ovens have convection and non-convection functions and are available in self-clean or manual clean. Gas oven models have a balanced air-flow fan and infrared broiler for versatile cooking performance.
All ranges feature different sized burners including the high-performance burner with two independently operated rings. This gives you outstanding control from low simmer to high output. The squared, one-piece high-efficiency stainless-steel worktops are easy to clean.
On gas models, the distinctive Bertazzoni Master Series dial gauge displays the heating progress of the oven. Ranges are controlled by large round soft-touch knobs and feature professional-style handles.
BERTAZZONI cooking products originate in Emilia-Romagna, a region world-famous for its food. Precision-engineered to the highest specifications by the Bertazzoni family, who have been making high-quality ranges since the beginning of the last century, every appliance bearing the Bertazzoni name represents an unwavering commitment to quality. Available at Designer Appliances.
Key Features
Unique Features
- 25-1/8" Depth allows range to sit flush with cabinetry (as opposed to other pro brands).
- 2 Year Parts and Labor Warranty is double the industry standard.
- One piece, full-width inner glass oven door allows for easy cleaning.
- All ranges include 4" stainless steel backguard (flat island trims optional).
- All ranges include wok ring and simmer plate.
Cooking with The Surface Burners
- 18,000 BTU dual control power burners.
- All burners in brass.
- High efficiency burners bring the flame closer to the pot to cook 30% faster.
- Mechanical flame-out safety system with thermocouples guarantees shut-off.
- One-piece worktop and sealed burners facilitate fast and easy cleaning.
Cooking with The Gas Oven
- Large capacity European convection oven is big enough for a 30 lb. turkey.
- Each range includes a telescopic glide shelf.
- Soft motion door hinges prevent slams, dropping and bounce-back.
- Full-width infrared broiler provides even heat over a large surface area.
- Special multi-layer glass door ensures minimal heat loss and safe outer surface temps.
- Low temperature settings include thermostat-controlled dehydration and fan-only defrosting.
Specifications
- Height of all ranges is adjustable between 35-1/2" - 37-1/4".
- All units ship Natural Gas unless otherwise noted (conversion kit to LP included).
- LP models and conversions available.
- LP models do not suffer the 20% loss in power seen in other brands.
- Available at Designer Appliances.
- www.designerappliances.com
Our Expert Video Review
Exclusive Video Review Bertazzoni Buying Guide [Exclusive In-Depth Review]
MAS304DFSXTLP Installation Drawing
Specifications
Oven Cavity
Grill Trivet For Tray
1
Main Oven
Electric Convection Self-Clean with Electric Broiler
Main Oven Volume
3.4 Cu. Ft.
Auxiliary Oven
No
Temperature Gauge
No
Inner Oven Door
Quadruple Glass
Cooling Fan
Yes
Telescopic Glide Shelf
1
Baking Tray
1
Heavy Gauge Wire Shelves
2
Stainless Steel Legs
Yes
Height-Adjustable Legs
Yes
Main Oven Functions
Oven Light
No
Upper Bake
No
Bottom Bake / Gas Bake
No
Bake
Yes
Large Broiler
No
Broiler
Yes
Turbo / Gas Convection
Yes
Microwave
No
Broiler / Microwave
No
Convection Bake
Yes
Convection Broiler
Yes
Convection
Yes
Defrost / Dehydrate
Yes
Convection / Microwave
No
Warming / Sabbath Mode
Yes
Proofing
Yes
Self-Clean
Yes
Dimensions
Overall Width
30"
Overall Depth
25 1/8"
Overall Depth Of Side Panel
24"
Overall Height
35 1/2" - 37 1/4"
Electrical Requirements
Voltage
120/208 VAC - 120/240 VAC
Frequency
60 Hz
Max Amp Usage
21 Amps - 4,400 Watts, 24 Amps - 5,000 Watts
Certifications and Warranty
Certification
CSA
Warranty
2 Years Parts and Labor
Product Information
Brand
Bertazzoni
Model
MAS304DFSXTLP
MPN
MAS30 4 DFS XT
Series
Master
Warranty Terms
2 years ? Bertazzoni appliances are backed by a 2 year parts and labor warranty. For additional details visit https://us.bertazzoni.com/more/warranty-registration
Appearance
Fuel Type
Dual Fuel
Style
Freestanding
Color
Stainless Steel
Cooktop
Sealed Burner
Continuous Grates
Yes
Stainless Steel Handle
Yes
Viewing Window
Yes
Drawer
None
Clock
No
Dimensions
Width
30 Inch
Depth
25 1/8 Inch
Height
35 1/2 Inch
Burner Output
Set 1 QTY
1
Set 1 Output
18000
Set 2 QTY
1
Set 2 Output
11000
Set 3 QTY
1
Set 3 Output
6500
Set 4 QTY
1
Set 4 Output
3400
Burner 1 Output
18000
Burner 2 Output
11000
Burner 3 Output
6500
Burner 4 Output
3400
Cooktop Features
Burners / Elements
4
Cooktop Control Type
Knobs
Downdraft Ventilation
No
Modules Required
No
Hot Surface Indicator Light
No
Induction
No
Grill
No
Griddle
No
Oven Features
Primary Oven Capacity
3.4 Cu. Ft.
Oven Control Type
Knobs
Digital Temperature Display
No
Timer
No
Convection
Yes
Self-Cleaning
Yes
Delay Bake
No
Proofing
Yes
Sabbath Mode
Yes
Broiler Element Location
Top
Temperature Probe
No
Interior Oven Light
No
Racks
3
Removable Door
No
Broiler Pan Included
Yes
Proof Mode
Yes
Technical Details
ADA Compliant
No
Ignition Type
Electronic
LP Conversion
Yes
Amps
40
Voltage
240/208 Volts
Cooking Zones
Griddle
No
Simmer Rate
750 BTU/h
Auxiliary
3,400 BTU/h
Semi-Rapid
6,500 BTU/h
Rapid
11,000 BTU/h
Dual Wok
750 - 18,000 BTU/h
Worktop
Simmer Ring
Yes
Work Adapter
Yes
One Hand Ignition
Yes
Thermocouple Safety Device
Yes
Backguard
Yes
Pan Support
Cast Iron
Knobs
Soft Touch
Worktop Control
Knobs
Design Worktop
Stainless Steel Squared
Griddle
No
Burners Type
Brass
Gas Zones
4
Capacity
Number of Burners
4
General
Manufacturer
Bertazzoni
