discontinued
There is a newer model of this item:
Need help finding a replacement?
-
Call us at
888-714-4938
Frequently Bought Together
1 Item(s)

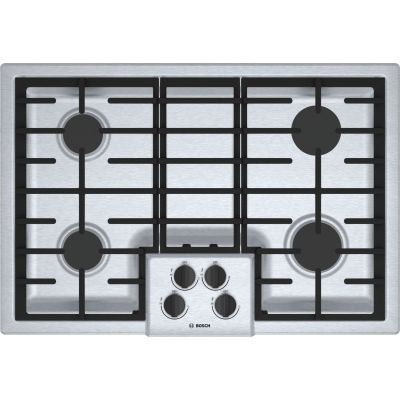

About the Bosch NGM5056UC
- 30" Gas Cooktop with 4 Sealed Burners
- OptiSim Burner - Simmer delicate sauces and melt chocolate
- Cast-Iron Continuous Grates, LED Indicator Lights
- 4 Sealed Burners 16K BTU, 2 x 10K BTU, 1 x 5,500 BTU
- Electronic Re-ignition and STAR-K Sabbath Mode
Brand:
Cooktop Type:
Cooktop
Finish:
Stainless Steel
Fuel Type:
Gas
Style:
Sealed Burner
Width:
31"
Height:
3 13/16"
Depth:
21 1/4"
Cutout Width:
28 15/16"
Cutout Depth:
19 1/8"
Volts:
120 Volts
Amps:
15
Key Features
Sealed Burners
- 4 Sealed burners ranging in power from 5,500 BTUs to 19,000 BTUs.
OptiSim Burner
- Simmer delicate sauces and melt chocolate without scorching.
Cast-Iron Continuous Grates
- Strong continuous grates to easily move cookware from one burner to the other.
LED Indicator Lights
- Distinctive red LED light indicates burners are on.
Electronic Re-ignition
- Electronic re-ignition will automatically re-ignite the burner in case the flame goes out.
Certifications
- STAR-K Sabbath Mode
Manuals & Downloads
NGM5056UC Specification Sheet
Specifications
GTIN
EAN
0825225937999
Cooktop Details
1st burner location
Front Left
1st burner power
10000
2nd burner location
Center Left
3rd burner location
Back Left
3rd burner power
10000
4th burner location
Middle Back
5th burner location
Back Right
5th burner power
5500
6th burner location
Center Right
7th burner location
Front Right
8th burner location
Front Middle / Central
9th burner location
Front Centre/cent
Knob material
Full Metal
Sealed Burners
Yes
Total number of cooktop burners
4
Dimensions
Actual Depth
21 1/4 Inch
Actual Height
3 13/16 Inch
Actual Width
31 Inch
Cutout Depth
19 1/8 Inch
Cutout Width
28 15/16 Inch
Technical Details
ADA Compliant
No
Amps
15
Frequency (Hz)
60
Ignition Type
Electronic
LP Conversion
Yes
Plug type
120V-3 Prong
Star-K Certified
Yes
Total BTU load
41500
Voltage
120 Volts
Smart
Alexa
No
Bluetooth
No
Google Home
No
Remote Control
No
Remote Diagnostics
No
Remote Monitoring
No
WiFi
No
Product Information
Brand
Bosch
Model
NGM5056UC
Product type
Hob
UPC
825225937999
Warranty Terms
1 year ? Bosch Appliances are backed by a one year warranty. For additional details, visit https://www.bosch-home.com/us/owner-support/cleaners-accessories/warranty-information
Burner Output
Burner 1 Output
10000
Burner 2 Output
10000
Burner 3 Output
5500
Burner 4 Output
16000
French Top
No
Griddle
No
Grill
No
Power Burner
Yes
Set 1 Output
16000
Set 1 QTY
1
Set 2 Output
10000
Set 2 QTY
2
Set 3 Output
5500
Set 3 QTY
1
Simmer Burner
No
Function
Burners / Elements
4
Control Type
Knobs
Downdraft Venting
No
Induction
No
Sabbath Mode
Yes
Shabbos Compliance
Certification
STAR-K
Appearance
Color
Stainless Steel
Continuous Grates
Yes
Controls Location
Top
Fingerprint Resistant
No
Fuel Subtype
Natural Gas
Fuel Type
Gas
Number of Burners
4
Style
Sealed Burner
Surface Color
Stainless Steel
Trim Color
Stainless Steel
Type
Drop-In
Variant color
Stainless Steel
Specifications:
Cooktop
Cooktop
Series
500
Gas Cooktop Features
Cooktop Accessory
No Accessory
Dishwasher Safe Grates
No
Dimensions & Weight
Item weight (lbs.)
41
Packaged weight (lbs.)
45
Power cord length
60"
Product packaging dimensions (h x w x d)
8 3/8" X 37 1/8" X 24 3/4"
Installation Requirements
Minimum distance from counter front
1 7/8"
Minimum distance from rear wall
3"
Required cutout size (h x w x d)
3 13/16" X 28 15/16" X 19 1/8"
Dimensions & Weight
Appliance Depth
21 1/4"
Appliance Height
3 13/16"
Appliance Width
31"
Cutout Depth
19 1/8"
Cutout Height
3 13/16"
Cutout Width
28 15/16"
Minimum Distance from Counter Front
1 7/8"
Minimum Distance from Rear Wall
3"
Net Weight
37 lbs
Electrical Specifications
Amps
15A
Power Cord Length
60"
Volts
120V
General Properties
Grate Material
Cast Iron
Knob Material
Metal
Sealed Burners
Yes
General
Manufacturer
Bosch
