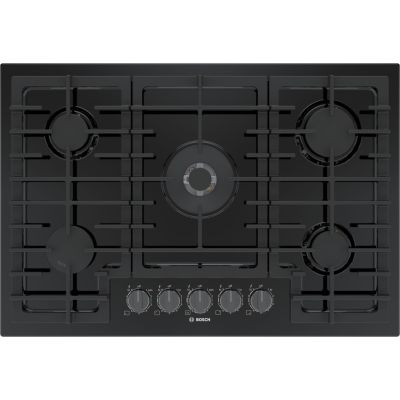

About the Bosch NGM8049UC
- 30 Inch Built-In Gas Cooktop with 5 Sealed Burners
- Cast Iron Continuous Grates
- Dual-Ring Power Burner
- OptiSim® Burner
- FlameSelect®
- Control Knob + Light Indicator and ADA Compliant
Brand:
Finish:
Black
Fuel Type:
Gas
Style:
Sealed Burner
Width:
31"
Height:
3 3/4"
Depth:
21 1/4"
Cutout Width:
28 15/16"
Cutout Depth:
19 1/8"
Volts:
120 Volts
Amps:
15
Bosch gas cooktops are engineered to perform precisely, offering high heat and low simmer options for optimal cooking flexibility. Electronic re-ignition will automatically re-ignite the burner in case the flame goes out. Its seamless, one-piece stainless steel design makes clean-up simple. The distinctive red LED light will indicate when the burners are on.
About Bosch
Engineers at Bosch relish a challenge. They prize the ability to overcome technological obstacles in order to produce precise, powerful appliances that perform better, are more intuitive, and use fewer resources while delivering world-class performance. Moreover, they aren't afraid of the exacting work it takes to produce elegant, stylish products with the most advanced technology available. With Bosch, you get consistently superior performance and an appearance to match.
Key Features
FlameSelect®
- Offers 9 distinct power levels and delivers precision flame height every time for consistent, repeatable results.
Dual-Ring Power Burner
- With 2 rings for low and high flame settings so you can go from simmer to sear with ease.
Enameled Heavy-Duty Grates
- Dishwasher-safe heavy-duty enameled cast-iron grates make cleanup simple and convenient.
OptiSim® Burner
- Offers more flame control at the lowest settings for precise simmering and melting.
Push-to-Turn Knobs
- Control knob with red LED light line indicates if the burner is on and the burner's residual heat.
Flame Failure Safety
- Each burner features a flame failure device for your added peace of mind.
LP Conversion Kit
- Included for conversion from Natural Gas to Liquid Propane.
Black Stainless Knobs
- Heavy-duty black stainless steel finish metal knobs for a premium look and feel.
NGM8049UC Installation Instruction
Specifications
GTIN
EAN
0825225973058
UPC
825225973058
Burner
Burner 3 Output
17,000 BTU (center)
Burner 2 Output
6,000 BTU (back left)
Burner 1 Output
3,400 BTU (front left)
Power Burner
Yes
Simmer Burner
Yes
Burner 4 Output
10,300 BTU (back right)
Burner 5 Output
6,000 BTU (front right)
Smart
WiFi
No
Dimensions
Cutout Depth
19 1/8 Inch
Cutout Width
28 15/16 Inch
Actual Height
3 3/4 Inch
Actual Depth
21 1/4 Inch
Actual Width
31 Inch
Appearance
Downdraft Venting
No
Glass Surface
No
Trim Color
Black
Surface Color
Black
Color
Black
Control Type
Knobs
Type
Drop-In
Style
Sealed Burner
Number of Burners
5
Fuel Subtype
Natural Gas
Fuel Type
Gas
General
Series
800
Manufacturer
Bosch
Product Information
Warranty Terms
1 year ? Bosch Appliances are backed by a one year warranty. For additional details, visit https://www.bosch-home.com/us/owner-support/cleaners-accessories/warranty-information
Model
NGM8049UC
Brand
Bosch
Technical Details
Voltage
120 Volts
Amps
15
LP Conversion
Yes
ADA Compliant
Yes
Gas Cooktop Features
French Top
No
Griddle
No
Grill
No
Cooktop Accessory
No Accessory
Dishwasher Safe Grates
Yes
Continuous Grates
Yes
Technical Details
Volts
120 V
Circuit breaker
15 A
Frequency
60 Hz
Plug type
3-Prong
Convertible to LP (kit required)
Yes
Fuel type
Natural Gas (Factory Set)
Power cord length
40"
Element Performance
Power of front right burner (NG / LP)
6,000 / 6,000
Power of back right burner (NG / LP)
10,300 / 10,300
Power of center burner (NG / LP)
17,000 / 15,700
Power of back left burner (NG / LP)
6,000 / 6,000
Power of front left burner (NG / LP)
3,400 / 3,400
Total BTU load (NG / LP)
42,700 / 41,400
General Properties
Grate features
Continuous Grates, Dishwasher Safe
Grate material
Cast Iron
Cooktop surface material
Black Porcelain Enamel
Ignition system
Electronic; Thermocouple Flame Monitor Control
Valves
Five 9-Level Gas Step Valves
Sealed burners
Yes
Control location
Front-Center
Knob color
Black Stainless Appearance
No. of burners
5
Accessories - Optional
HEZ9GR58UC
Griddle
HEZ298102
Wok Ring
Accessories - Included
Included
LP Conversion Kit, OptiSim® Cap
Dimensions & Weight
Net weight
41 lbs
Minimum distance from rear wall
3"
Minimum distance from counter front
1 7/8"
Required cutout size (HxWxD)
2" x 28 15/16" x 19 1/8"
Overall appliance dimensions (HxWxD)
3 3/4" x 31" x 21 1/4"
