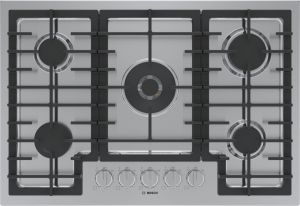

There is a newer model of this item:
Need help finding a replacement?
-
Call us at
888-714-4938
Accessories
2 Item(s)

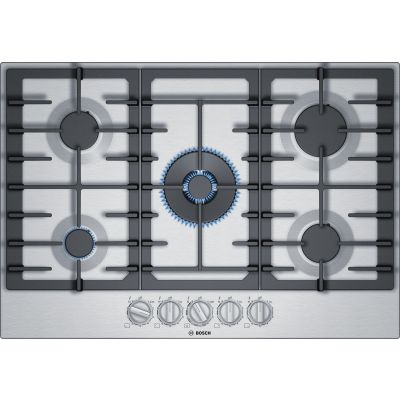

About the Bosch NGM8057UC
- 30 Inch 5-Burner Stainless Steel Gas Cooktop with FlameSelect
- Dual Flame Power Burner
- Heavy-Duty Grates
- OptiSim® Burner
- Low Profile Cooking Surface
- LP Conversion Kit
- Push-to-Turn Knobs
- Up-Front Centralized Controls
- Flame Failure Safety
Brand:
Finish:
Stainless Steel
Fuel Type:
Gas
Style:
Sealed Burner
Width:
30"
Height:
2 23/64"
Depth:
20 1/2"
Cutout Width:
28 15/16"
Cutout Depth:
19 1/8"
Volts:
120 Volts
Amps:
15
Key Features
FlameSelect
- Allows for a precise adjustment of the flame size with nine defined power levels.
Dual Flame Power Burner
- Quickly boil water or maintain a precise simmer with two heat options
Heavy-Duty Grates
- Can be easily and quickly cleaned in the dishwasher instead of cleaned by hand.
OptiSim® Burner
- Simmer delicate sauces and melt chocolate without scorching.
Low Profile Cooking Surface
- Stainless steel cooking surface is easily accessible and quick to clean.
LP Conversion Kit
- Included for Conversion from Natural Gas to Liquid Propane
Other Features
- Push-to-Turn Knobs with Electronic Ignition
- Up-Front Centralized Controls
- Flame Failure Safety
- Cooktop Design Coordinates with Bosch Ovens and Ventilation
Manuals & Downloads
NGM8057UC Specification Sheet
Specifications
Appearance
Number of Burners
5
Style
Sealed Burner
Type
Drop-In
Control Type
Knobs
Color
Stainless Steel
Surface Color
Stainless Steel
Trim Color
Stainless Steel
Fingerprint Resistant
No
Downdraft Venting
No
Fuel Subtype
Natural Gas
Fuel Type
Gas
Dimensions
Cutout Width
28 15/16 Inch
Cutout Depth
19 1/8 Inch
Actual Height
2 23/64 Inch
Actual Depth
20 1/2 Inch
Actual Width
30 Inch
Smart
WiFi
No
Burner Output
Simmer Burner
Yes
Power Burner
Yes
Burner 1 Output
3,400 BTU
Burner 2 Output
6,000 BTU
Burner 3 Output
17,000 BTU
Burner 4 Output
9,000 BTU
Burner 5 Output
6,000 BTU
Gas Cooktop Features
Continuous Grates
Yes
Dishwasher Safe Grates
Yes
Cooktop Accessory
No Accessory
Grill
No
Griddle
No
French Top
No
Technical Details
Amps
15
Voltage
120 Volts
LP Conversion
Yes
ADA Compliant
Yes
Sabbath Mode
No
Star-K Certified
No
GTIN
UPC
825225958437
EAN
0825225958437
JAN
4242005152186
Overview
Power of Front Left Burner (NG / LP) OptiSim®
3,400 / 3,400 BTU
Ignition System
Electric; Thermocouple Safety Control
Type of Grate
Cast Iron
Continuous Grates
Yes
Dishwasher Safe Grates
Yes
Type of Safety Device for Gas
Electromagnetic For Each Burner
Total BTU load (NG / LP)
41,400 / 40,100
Power of Back Left Burner (NG / LP)
6,000 / 6,000 BTU
Power of Center Burner (NG / LP) Dual-Flame
17,000 / 15,700 BTU
Power of Back Right Burner (NG / LP)
9,000 / 9,000 BTU
Gas Valves
Five 9-Level Step Valves
Sealed Burners
Yes
Construction Type
Built-in
Installation Type
Built-in
Color of Frame
Stainless Steel
Cooktop Surface
Stainless Steel
Knob Color
Stainless Steel
Number of Cooktop Burners
5
Power of Front Right Burner (NG / LP)
6,000 / 6,000 BTU
Accessories Included
LP Conversion Kit, OptiSim® Cap
Accessories Optional
Wok Ring (HEZ298107)
Product Information
Warranty Terms
1 year ? Bosch Appliances are backed by a one year warranty. For additional details, visit https://www.bosch-home.com/us/owner-support/cleaners-accessories/warranty-information
Brand
Bosch
Model
NGM8057UC
Electric Cooktop Features
Hot Surface Indicator Light
No
Induction
No
Specifications:
Series
800
Electrical Requirements
Plug Type
3-prong
Power Cord Length
40"
Fuel Type
Natural Gas (Factory Set)
Convertible to LP(kit required)
Yes
Location of gas connection
Rear, Right
Gas connection rating
12,100 W
Circuit Breaker
15 A
Volts
120 V
Frequency
60 Hz
Certifications
ADA Compliant
Yes
CSA
Yes
Warranty
Parts and Labor
1 Year
Dimensions and Weight
Overall Dimensions (HxWxD)
2 23/64" x 29 1/2" x 20 1/2"
Required Cutout Size(HxWxD)
1 1/4" x 28 15/16" x 19 1/8"
Minimum Distance From Counter Front
1 7/8"
Minimum Distance From Rear Wall
3"
Net Weight
38 Lbs
General
Manufacturer
Bosch
