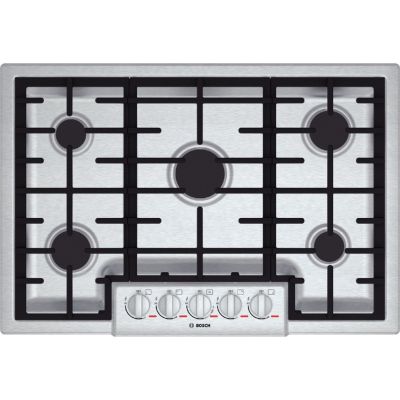

Bosch NGMP055UC Benchmark Series Gas Cooktop - Stainless Steel

discontinued

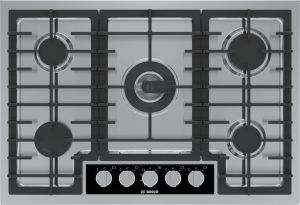

There is a newer model of this item:

Need help finding a replacement?

John Carey
Product Highlights
  • 5 Sealed Burners
  • 20,000 BTU Burner
  • Cast Iron Continuous Grates
  • Heavy-Duty Metal Knobs
  • Centralized Controls
  • Low-Profile Design
Brand:
Cooktop Type:
Cooktop
Finish:
Stainless Steel
Fuel Type:
Gas
Style:
Sealed Burner
Width:
31"
Height:
3 13/16"
Depth:
21 1/4"
Cutout Width:
28 15/16"
Cutout Depth:
19 1/8"
Volts:
120 Volts
Amps:
15
Frequently Bought Together 3 Item(s)
About the Bosch NGMP055UC
What's special about German engineering is special about Bosch.
Everyone knows Germans craft brilliant and efficient machines. The question is, Why At Bosch, it's because they relish a challenge. They prize the ability to overcome technological obstacles in order to produce precise, powerful appliances that perform better, are more intuitive and use fewer resources, while delivering world-class performance. Moreover, they aren't afraid of the exacting work it takes to produce elegant, stylish products with the most advanced technology available. Combine that with rigorous technical education, strict German efficiency guidelines and over two hundred days of rain driving them inside for long periods, well, maybe it's not that difficult to understand what drives Germans to engineer the world's best machines.

A Bosch kitchen says taste in every way.
Imagine a kitchen full of thoughtful, ingeniously appointed products that give your kitchen a seamlessly integrated look and provide consistently superior performance. A Bosch kitchen can be flexible or custom fit. It can be for luxurious dinner parties or busy weeknight dinners. What it will never be, is anything less than tasteful.

Technologies that not only improve our daily life, but our future as well.
For Bosch, green technologies are central to how they innovate and improve the world we live in. Their team of engineers believes that you don't have to waste resources to create technologically superior products. As such, they're committed to making every tomorrow better - it's why they say they're invented for life. Available at Designer Appliances.
Key Features
Design
  • Heavy-Duty Metal Knobs for a premium look and feel.
  • Low-Profile design for an integrated appearance.
  • Centralized Controls for easy use and intuitive operation of the cooktop.
  • Cooktop design coordinates with Bosch ovens and ventilation.
Performance
  • Powerful 51,000 BTU burners (Natural Gas).
  • Powerful 20,000 BTU dual-stacked center burner.
  • Powerful center burner designed for faster boil time and a low simmer.
  • Five Burner 30" Cooktop
  • Same versatility of 36" cooktop in compact 30" format.
  • For kitchens where space is limited.
Convenience
  • Sealed burners prevent spills from entering the burner box.
  • Push-to-Turn knobs.
  • Automatic Electronic Re-Ignition
  • In case flame goes out, the burner is automatically re-ignited.
  • Distinctive Red LED light indicates burners are on.
  • LP Conversion Kit included for easy conversion from natural gas to liquid propane.
  • Available at Designer Appliances.
  • www.Designer Appliances.com
Specifications
Dimensions and Weights
Gross Weight
46.0 Lbs.
Power Cord Length
60"
Distance From Rear Wall
3" Min.
Distance From Counter Front
1 7/8" Min.
Cutout Height
3 13/16"
Cutout Depth
19 1/8"
Net Weight
38.0 Lbs.
Cutout Width
28 15/16"
Overall Height
3 13/16"
Overall Depth
21 1/4"
Overall Width
31"
Technical Details
LP Conversion
Yes
Modules Required
No
Ignition Type
Electronic
Star-K Certified
No
ADA Compliant
Yes
Amps
15
Voltage
120 Volts
Function
Sabbath Mode
No
Downdraft Venting
No
Control Type
Knobs
Burners
5
Burners / Elements
5
Burner Output
Griddle
No
Grill
No
Set 3 Output
5500
Set 3 QTY
2
Set 2 Output
10000
Set 2 QTY
2
Set 1 Output
20000
Set 1 QTY
1
General Properties
Nozzle Set For Liquid Gas
Included
Knob Material
Full Metal
Number Of Double Grates
2
Number Of Single Grates
1
Type Of Grate
Cast Iron
Cast Iron Pan Support
Included
Product Information
UPC
825225906889
Model
NGMP055UC
Brand
Bosch
Appearance
Type
Drop-In
Color
Stainless Steel
Continuous Grates
Yes
Cooktop
Cooktop
Style
Sealed Burner
Fuel Type
Gas
Burner Performance
5th Burner - Location
Front Right
5th Burner - Power
5,500 BTU
3rd Burner - Power
20,000 BTU
3rd Burner - Location
Middle Back
2nd Burner - Power
5,500 BTU
1st Burner - Location
Front Left
Sealed Burners
Yes
4th Burner - Location
Back Right
4th Burner - Power
10,000 BTU
Total Number Of Cooktop Burners
5
1st Burner - Power
10,000 BTU
2nd Burner - Location
Back Left
Specifications:
Series
Benchmark
Dimensions
Cutout Depth
19 1/8 Inch
Cutout Width
28 15/16 Inch
Actual Height
3 13/16 Inch
Actual Depth
21 1/4 Inch
Actual Width
31 Inch
Installation Requirements
Alternative Gas Type
Liquid Gas 27,5 mbar (USA)
Gas Type
Natural Gas 15 mbar (USA)
Energy Source
Gas
Plug Type
120V - 3 Prong
Frequency
60 Hz
Watts
360 Watts
Current
15 Amps
Volts
120 Volts
General
Manufacturer
Bosch
