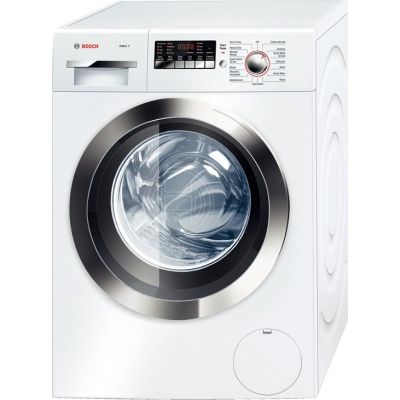

About the Bosch WAP24202UC
Brand:
Capacity:
2.2 cu. ft.
Wash Cycles:
15
Max Spin Speed (RPM):
1200
Stackable:
Yes
Steam Cycle:
No
Type:
Front Load
Width:
23 1/2"
Depth:
25"
Height:
33 1/4"
Volts:
240/208 Volts
Amps:
15
Energy Star Rated:
Yes
CEE Rating:
Tier II
Key Features
Large Capacity on Compact Footprint
15 Wash Cycles plus 6 Selectable Options
Large LED Display with Delay Start
Unique Raindrop Stainless Steel Drum
AntiVibration Technology for Second Floors Installation
Special Cycles including 15 Minute Super Quick Wash, Sanitary, and Heavy Duty
Stackable Installation Option Helps Save Space
Plugs into Axxis Dryer. Uses 15 Amp 3-Wire 240/208 Volt Power Cord.
Available at Designer Appliances www.designerappliances.com
WAP24202UC Energy Guide
Specifications
Dimensions
Width
23 1/2"
Height
33 1/4"
Depth
25"
Capacity
2.2 cu. ft.
Technical Details
Frequency(Hz)
60
Energy Star
Yes
Energy Consumption
135 kWh/yr
Drain Hose Length
57"
Current
12 Amps
CEE Tier
2
Inlet Hose Length
47"
Plug Type
NEMA 6-15 (3 Prong)
Power Cord Included
Yes
Watts
2300
Water Consumption
3640 gal/yr
Volts
208-240
Power Cord Length
61"
Features
Tub Volume
2.2 Cu. Ft.
Tub Material
Stainless Steel
Silence level - Washing
59 dBA
Silence level - Spinning
73 dBA
Relative Load
18 Bath Towels
Options
6
Maximum Spin Speed
1,200 RPM
Leak Protection Systems
Aqua Stop(Hose + Sensor)
Internal Water Heater
Yes
Cycles
15
ADA Compliant
Yes (When installed on a Bosch pedestal)
Features
Water Heater
Yes
Wash Cycles
15
Usage
Residential
Steam Cycle
No
Stainless Steel Drum
Yes
Reversible Door
No
Maximum Spin Speed (RPM)
1200
Leveling Legs
Yes
Fabric Softener Dispenser
Yes
Control Type
Digital
Bleach Dispenser
No
Self Cleaning Lint Filter
No
Soak Setting
Yes
Technical Details
Voltage
240/208 Volts
Energy Star Rated
Yes
CEE Rating
Tier II
Amps
15
ADA Compliant
Yes
Appearance
Type
Front Load
Stackable
Yes
Location of Controls
Front
Color
White
Design Elements
Stackability
Yes
Door Ring
Chrome
Display
Large LED
Dial
Chrome
Control Buttons
Chrome
Cycles
Woolens/Handwash
Yes
Whitest Whites
Yes
Super Quick 15 Minute
Yes
Sanitary
Yes
Rinse
Yes
Quick Wash 30 Minute
Yes
Perm. Press
Yes
Mixed
Yes
Maintenance
Yes
Jeans
Yes
Heavy Duty
Yes
Delicates
Yes
Cotton Normal
Yes
Active Wear
Yes
Specifications:
Series
Axxis Plus
Dimensions and Weight
Width
23 1/2"
Weight
170 lbs
Minimum Stacking Height
67 3/4"
Height
33 1/4"
Depth
24"
General
Manufacturer
Bosch
