Accessories
1 Item(s)

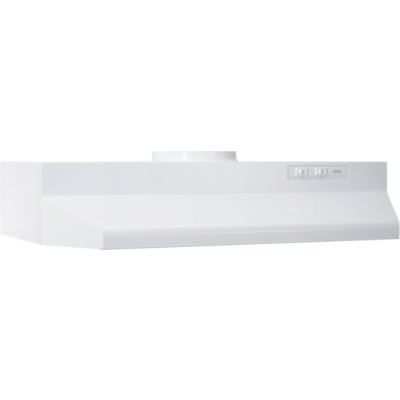

About the Broan 422401
- 190 CFM Airflow
- 2-Speed Control
- Dishwasher Safe Aluminum Grease Filter
- Built-in 7" Adapter
Brand:
CFM:
190 CFM
Speeds:
2
Venting Type:
Ducted
Style:
Standard Hood
Width:
24"
Height:
6"
Depth:
17 1/2"
The 42000 series offers an effective and durable under-the-cabinet hood solution for vertical discharge installations. The range hood is designed for 7 in. round vertical duct attachment. The hood comes in a variety of appliance matching colors and widths, and features a fan designed for years of trouble free service, an easy to clean grease filter, an easy to clean grease filter, a protective lamp lens that distributes light evenly over the cook-top and control switches for fan speed and light activation. Includes built-in 7 in. duct adapter.
Available at Designer Appliances.
Key Features
- Installs as 7" round ducted only
- 190 CFM, 6.0 Sone (vertical discharge) performance - HVI 2100 Certified
- Dishwasher-safe aluminum grease filter
- Accepts up to 75 watt light. Bulb not included
- Built-in 7" adapter
- BP87 dampers sold separately
422401 Installation Guide
Specifications
Capacity
Noise Level
6 Sones
Duct Size
7 Inch
Permanent Air Flow Reduction
No
Electrical Specifications
Amps
2 A
Volts
120 V
Frequency
60 Hz
Watts
240 W
Overview
Manufacturer Warranty
1 Year
Bulb (Recommended Type)
A19
Duct Direction
Vertical
Vent Type
Ducted Only
Diameter
7" Round
CFM
190
Built-In Timer
No
Country of Origin
United States
Boost Mode
No
Switch Control Type
Rocker
Speed Levels
2
Remote Operation Capable
No
Ductless Filter Or Kit Included
No
Ductless Recirculation Capable
No
ENERGY STAR® Certified
No
Heat Sentry™
No
Nightlight Or Nightlight Setting
No
UL Listed
Yes
Damper Included
No
Light Bulbs Included
No
Light Levels
1
Material
Steel
Filter Type
Aluminum
ADA Compliance
Yes
Lighting Type
Incandescent
HVI Certified
Yes
Technical Details
ADA Compliant
Yes
Energy Star Rated
No
Amps
15
CEE Rating
Not Available
Voltage
120 Volts
Features
Delay Shut-Off
No
Filter Type
Mesh
Approved for Outdoor Use
No
Sones
6
Halogen Lighting
No
Lighting Levels
1
Speeds
2
Dishwasher Safe Filters
Yes
CFM
190 CFM
Number of Fan Speeds
2
Smart
Smart Accessory Required
No
Bluetooth
No
WiFi
No
Appearance
Blower Included
Yes
Glass Canopy
No
Fingerprint Resistant
No
Blower Type
Internal
Venting Type
Ducted
Mounting Type
Under Cabinet
Color
White
Type
Hood
Style
Standard Hood
Dimensions
Product Height
6"
Product Depth
17 1/2"
Product Width
24"
Dimensions
Height
6 Inch
Depth
17 1/2 Inch
Width
24 Inch
Product Information
UPC
026715031108
Model
422401
Brand
Broan
Series
42000
General
Manufacturer
Broan
