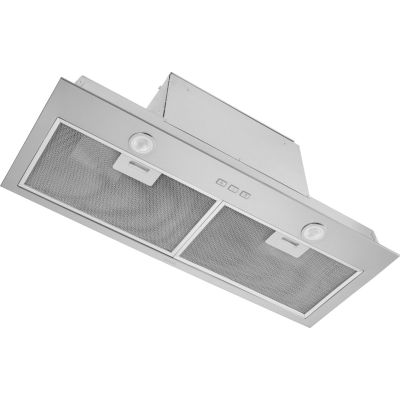

About the Broan BBN3306SSC
- Broan BBN3306SSC BBN3 Powerpack Insert Series 30 Inch Built-In Insert Range Hood with 650 CFM Internal Blower
- Code Ready Technology
- EZ1 Installation System
- Heat Sentry™
- Tap Touch Control
- ADA Compatible (Kit Sold Separately)
Brand:
CFM:
650 CFM
Venting Type:
Convertible
Style:
Standard Hood
Width:
29 7/8"
Height:
10 9/16"
Depth:
11 7/16"
From the leader in residential indoor air quality, this Broan® custom range hood insert is the perfect solution for cabinet installations and custom kitchen designs. The integrated one-piece design protects the full bottom of your cabinetry with a flush appearance and depth adjustability, featuring a smooth, stainless-steel surface that is easy to clean, thanks to quick-release dishwasher-safe filters.
The kitchen is the most polluted room in the house, regardless of the type of cooking appliance; everything from smoke, odors, and chemicals is in the air. The range hood is often overlooked as the primary and most effective way to remove pollutants from the home. This range hood is HVI certified – guaranteed to provide powerful ventilation with 650 Max Blower CFM to remove the pollutants and improve the air you breathe. While ventilating the kitchen air, this range hood is still quiet at 0.5 sones on normal speed, which is as loud as a whisper.
The bright, 2-level, heat-resistant LED lighting makes even the worst cook's recipe look great. The EZ1 Installation System allows for 1-person installation, making installation fast for both the professional and DIY installers. At Broan-NuTone, better quality of air means better quality of life.
Key Features
650 CFM Internal Blower
- Quickly remove smoke, odors, and cooking pollutants with the 650 Max Blower CFM, powerful enough for use with a gas range yet quiet at 0.5 sones on normal speed which is as loud as a whisper
Code Ready Technology (CRT)
- Makes the installers job easier by automatically adjusting the CFM/fan speed to meet make-up air codes
EZ1 Installation System
- Easy single person installation in half the time for both professional and DIY installers
Delay Off
- 10 minute delay off function keeps hood running after cooking to ensure smoke and odors have cleared the environment
Mesh Filters
- Dishwasher-safe aluminum micro mesh filters feature quick-release latch for easy removal
LED Light
- Bright 2-level LED modules (included) enhance your cooking experience
Tap Touch Control
- 4-Speed back-lit soft touch control for easy operation
Custom Built-In
- Design your dream kitchen with the custom insert range hood that can be built-in to cabin
Optional Extensions
- Optional stainless steel extensions are available to accommodate cabinets up to 15" deep (HADTBN30)
Optional Kit & Filters
- Optional non-duct recirculation kit and filters available for indoor exhaust recirculation to suit your needs
Make-Up Air Damper Compatible
- Works with optional universal make-up air dampers
ADA Compatible (Kit Sold Separately)
- The purchase of a remote wall control (not included) will allow for convenient operation and is compatible with ADA applications
Additional Features
- Heat Sentry™
- HVI Certified
- UL Listed
Specifications
Smart
WiFi
No
Product Specifications
Control Type
Electronic Soft Touch, 4 speeds
Delay Off
Yes
Filter Clean Reminder
Yes
Recirculation
Non-ducted Kit Sold Separately
Max. Blower CFM
650
Lighting
2-level LED (2 LED modules included)
Installation Hardware
Included
Heat Sentry™
Yes
Grease Filters
Micromesh (Qty. 2)
Limited Warranty
Manufacturer Warranty
1 Year
Electrical Specifications
Rated Voltage
120 V, 60 Hz
Rated Amps
4.0 A
Claims & Certifications
UL Listed
Yes
HVI Certified
Yes
ENERGY STAR® Certified
No
ADA Capable
Yes,(HAWRK5 Kit Sold Separately)
Dimensions
Width
29 7/8"
Height
10 9/16"
Depth
11 7/16"
Dimensions
Width
29 7/8 Inch
Depth
11 7/16 Inch
Height
10 9/16 Inch
Technical Details
Voltage
120 Volts
Approved for Outdoor Use
No
Amps
15
Energy Star Rated
No
Appearance
Venting Type
Convertible
Type
Cabinet Insert
Style
Standard Hood
Color
Stainless Steel
Blower Type
Internal
Blower Included
Yes
Mounting Type
Under Cabinet
Fingerprint Resistant
No
Optional Accessories
Power Cord Kit
HCK44
Non Duct Kit
HARKBN30
Hybrid Baffle Filters
HPFBN30
Fillers (Set of 7)
HADTBN30
ADA Kit
HAWRK5
Features
Delay Shut-Off
Yes
Dishwasher Safe Filters
Yes
Number of Fan Speeds
4
Lights
LED
Lighting Levels
2
Filter Type
Mesh
Capacity
CFM
650 CFM
Permanent Air Flow Reduction
Yes
Product Information
Brand
Broan
Model
BBN3306SSC
General
Manufacturer
Broan
