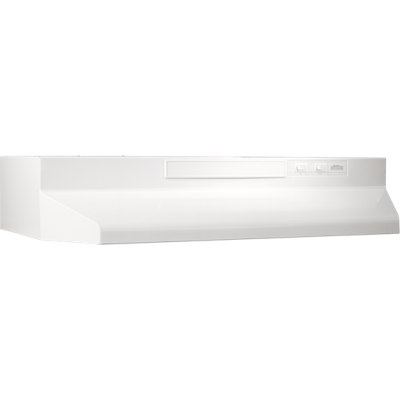

About the Broan F403611
- 190 CFM Internal Blower
- 2-Speed Rocker Control
- Dishwasher-Safe Aluminum Grease Filter
- Convertible To Recirculating
Brand:
CFM:
190 CFM
Speeds:
2
Venting Type:
Convertible
Style:
Standard Hood
Width:
36"
Height:
6"
Depth:
17 1/2"
The F40000 series provides installation flexibility with 4-way convertibility to fit virtually all applications. The hood is designed for under cabinet use and installs as 3-1/4" x 10" ducted opening with vertical or horizontal ducting; or 7" round vertical ducting or as non-ducted with air recirculation. The hood features a fan designed for years of trouble free service, an easy to clean grease filter, a protective lamp lens that distributes light evenly over the cook-top and control switches for fan speed and light activation.
Welcome To Broan
Broan is North America's largest producer of residential ventilation products such as Range Hoods, Bath Fans, Ventilation Fans, Make-Up Air Dampers and Indoor Air Quality (IAQ) products and also holds major market positions in Door Chimes, Central Vacuums, Intercom Systems, Medicine Cabinets, Built-In Electric Heaters, Attic Ventilators, Ceiling Fans, Ironing Centers, Trash Compactors and Speakers. Available at Designer Appliances.
Since their beginning in 1932, Broan has pioneered many of the product innovations now established as standards of the industry. Today, Broan carries on the commitment to provide the finest products in the industry.
Key Features
Two speed fan control.
Mitered sides and hemmed bottom for safety and good looks.
Four-way convertible.
Installs ducted 3-1/4" x 10" (vertical and horizontal), 7" round (vertical) and non-ducted.
Non-Ducted Filter sold separately - Model 41F.
160 CFM, 6.5 Sone (3-1/4" x 10" discharge) or 190 CFM (7" round discharge) performance - HVI 2100 Certified.
Dishwasher-safe aluminum grease filter.
Includes 3-1/4" x 10" damper/adapter and 7" round adapter.
7" round damper optional.
BP87 dampers sold separately.
Available at Designer Appliances.
www.designerappliances.com
F403611 Installation Guide
Specifications
GTIN
EAN
0026715144648
Overview
HVI Certified
Yes
Lighting Type
Incandescent
UL Listed
Yes
Filter Type
Aluminum
ENERGY STAR® Certified
No
Heat Sentry™
No
Remote Operation Capable
No
Ductless Filter Or Kit Included
No
Ductless Recirculation Capable
Yes
Nightlight Or Nightlight Setting
No
Material
Steel
Light Levels
1
Light Bulbs Included
No
Light Bulb Wattage
75
Damper Included
No
ADA Compliance
Yes
Manufacturer Warranty
1 Year
Bulb (Recommended Type)
A19
Duct Direction
Horizontal/Vertical
Vent Type
Convertible Built-In
Diameter
7" Round
CFM
160
Built-In Timer
No
Country of Origin
United States
Boost Mode
No
Switch Control Type
Rocker
Speed Levels
2
Technical Details
CEE Rating
Not Available
ADA Compliant
Yes
Energy Star Rated
No
Amps
15
Voltage
120 Volts
Features
Delay Shut-Off
No
Filter Type
Mesh
Number of Fan Speeds
2
Approved for Outdoor Use
No
Sones
6.5
Halogen Lighting
No
Lighting Levels
1
Speeds
2
Dishwasher Safe Filters
Yes
CFM
190 CFM
Capacity
Permanent Air Flow Reduction
Yes
Noise Level
6.5 Sones
Smart
Smart Accessory Required
No
Bluetooth
No
WiFi
No
Appearance
Blower Included
Yes
Glass Canopy
No
Fingerprint Resistant
No
Blower Type
Internal
Venting Type
Convertible
Mounting Type
Under Cabinet
Color
White
Type
Hood
Style
Standard Hood
Dimensions
Product Height
6"
Product Depth
17 1/2"
Product Width
36"
Product Information
Brand
Broan
Model
F403611
UPC
026715144648
Series
F40000
Electrical Specifications
Watts
300 W
Amps
2.5 A
Volts
120 V
Dimensions
Height
6 Inch
Depth
17 1/2 Inch
Width
36 Inch
General
Manufacturer
Broan
