discontinued
There is a newer model of this item:
Need help finding a replacement?
-
Call us at
888-714-4938
Accessories
1 Item(s)

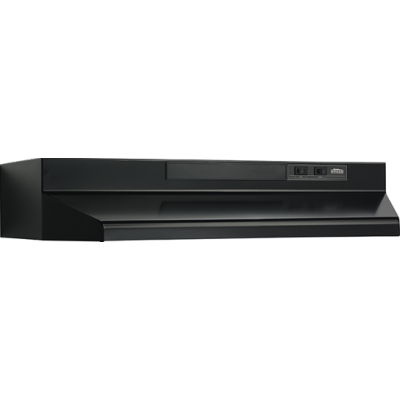

About the Broan F404223
- 190 CFM Internal Blower
- 2-Speed Rocker Control
- Dishwasher-Safe Aluminum Grease Filter
- Convertible To Recirculating
Brand:
CFM:
190 CFM
Speeds:
2
Venting Type:
Convertible
Style:
Standard Hood
Width:
42"
Height:
6"
Depth:
17 1/2"
The F40000 series provides installation flexibility with 4-way convertibility to fit virtually all applications. The hood is designed for under cabinet use and installs as 3-1/4" x 10" ducted opening with vertical or horizontal ducting; or 7" round vertical ducting or as non-ducted with air recirculation. The hood features a fan designed for years of trouble free service, an easy to clean grease filter, a protective lamp lens that distributes light evenly over the cook-top and control switches for fan speed and light activation.
Welcome To Broan
Broan is North America's largest producer of residential ventilation products such as Range Hoods, Bath Fans, Ventilation Fans, Make-Up Air Dampers and Indoor Air Quality (IAQ) products and also holds major market positions in Door Chimes, Central Vacuums, Intercom Systems, Medicine Cabinets, Built-In Electric Heaters, Attic Ventilators, Ceiling Fans, Ironing Centers, Trash Compactors and Speakers. Available at Designer Appliances.
Since their beginning in 1932, Broan has pioneered many of the product innovations now established as standards of the industry. Today, Broan carries on the commitment to provide the finest products in the industry.
Key Features
Two speed fan control.
Mitered sides and hemmed bottom for safety and good looks.
Four-way convertible.
Installs ducted 3-1/4" x 10" (vertical and horizontal), 7" round (vertical) and non-ducted.
Non-Ducted Filter sold separately - Model 41F.
160 CFM, 6.5 Sone (3-1/4" x 10" discharge) or 190 CFM (7" round discharge) performance - HVI 2100 Certified.
Dishwasher-safe aluminum grease filter.
Includes 3-1/4" x 10" damper/adapter and 7" round adapter.
7" round damper optional.
BP87 dampers sold separately.
Available at Designer Appliances.
www.designerappliances.com
F404223 Installation Guide
Specifications
Smart
WiFi
No
Bluetooth
No
Smart Accessory Required
No
Overview
Lighting Type
Incandescent
Light Levels
1
Light Bulbs Included
No
Light Bulb Wattage
75
HVI Certified
Yes
Heat Sentry™
No
Filter Type
Aluminum
ENERGY STAR® Certified
No
Ductless Recirculation Capable
Yes
Ductless Filter Or Kit Included
No
Duct Direction
Horizontal/Vertical
Diameter
7" Round
Damper Included
No
Country of Origin
United States
CFM
160
Bulb (Recommended Type)
A19
Manufacturer Warranty
1 Year
Material
Steel
Vent Type
Convertible Built-In
UL Listed
Yes
Switch Control Type
Rocker
Speed Levels
2
Remote Operation Capable
No
Nightlight Or Nightlight Setting
No
Built-In Timer
No
Boost Mode
No
ADA Compliance
Yes
Dimensions
Width
42 Inch
Depth
17 1/2 Inch
Height
6 Inch
Technical Details
Voltage
120 Volts
CEE Rating
Not Available
Amps
15
Energy Star Rated
No
ADA Compliant
Yes
Appearance
Venting Type
Convertible
Type
Hood
Style
Standard Hood
Color
Black
Blower Type
Internal
Blower Included
Yes
Mounting Type
Under Cabinet
Glass Canopy
No
Fingerprint Resistant
No
Product Information
UPC
026715173204
Brand
Broan
Series
F40000
Model
F404223
Features
Speeds
2
Dishwasher Safe Filters
Yes
Delay Shut-Off
No
CFM
190 CFM
Approved for Outdoor Use
No
Filter Type
Mesh
Sones
6.5
Number of Fan Speeds
2
Lighting Levels
1
Halogen Lighting
No
Electrical Specifications
Watts
300 W
Volts
120 V
Amps
2.5 A
GTIN
EAN
0026715173204
Dimensions
Product Width
42"
Product Height
6"
Product Depth
17 1/2"
Capacity
Permanent Air Flow Reduction
Yes
Noise Level
6.5 Sones
General
Manufacturer
Broan
