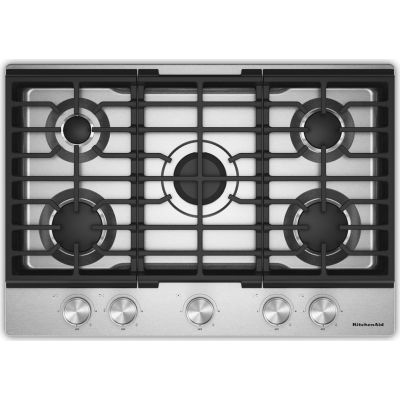

About the KitchenAid KCGK330SSS
- KitchenAid KCGK330SSS 30 Inch Gas Cooktop with 5 Sealed Burners
- Edge-to-Edge Cast-Iron Grates
- Premium Weighted Knobs
- Wall Oven Compatible
- Electronic Ignition
- 18,000 BTU Burner
- 6,000 BTU Simmer Burner
- LP Conversion Kit and ADA Compliant
Brand:
Finish:
Stainless Steel
Fuel Type:
Gas
Style:
Sealed Burner
Width:
30 1/32"
Height:
6 15/64"
Depth:
20 63/64"
Cutout Width:
28 7/8"
Cutout Depth:
19 13/16"
Volts:
120 Volts
Amps:
15
Fuel more moments with the KitchenAid® Gas on Metal Cooktop featuring 5 versatile burners, sleek Edge-to-Edge Cast-Iron Grates, the tactile feel of premium weighted knobs, a 6,000 BTU Simmer Burner, and a powerful 18,000 BTU Burner.
Key Features
5 Versatile Burners
- Provide the perfect range of cooking power from 6,000 to 18,000 BTUs, so you can go from a delicate simmer to a rolling boil.
Edge-to-Edge Cast-Iron Grates
- Enhance the beautiful look of the cooktop and allow easy movement of cookware around the entire cooking surface. Wash these Cast-Iron Grates right in the dishwasher when they get messy.
Premium Weighted Knobs
- Offer an enhanced, tactile feel when controlling your cooktop.
6,000 BTU Simmer Burner
- Allows control of the flame at the lowest setting, for precise simmering and melting.
18,000 BTU Burner
- Delivers the high heat you need for successful searing, sautéing, stir-frying, and bringing large stockpots to a rolling boil.
Electronic Ignition
- Automatically lights burners, so no standing pilot light is needed.
Sealed Burners
- Prevent crumbs, spills, and boilovers from falling into the cooktop interior, making cleanup easy.
Wall Oven Compatible
- Install this cooktop above a wall oven or on its own for more flexibility
ADA Compliant
- This appliance meets the Standards for Accessible Design specified by the Americans with Disabilities Act to provide equal access to all.
LP Conversion Kit
- Allows you to convert the cooktop so it can be used with liquid propane
California residents see Prop 65 WARNINGS WARNING: This item can expose you to chemicals, which are known to the State of California to cause cancer and / or birth defects or other reproductive harm. For more information, go to www.p65Warnings.ca.gov
Specifications
Details
Cooktop Configuration
All Burners
Fuel Type
Gas
Installation Configuration
Built-In
LP Convertible
Yes - Kit Included
Natural Gas Convertible
Yes
Power Outage Compatible
Yes
Digital Display
No
Gas Regulator Inlet Thread Size
.75
Exterior Details
Knob Color
Stainless Steel
Knob Type
Premium Weighted
Grate Details
Grate Details
Cast Iron Grates, Continuous, Dishwasher Safe, Matte Finish
Controls
Control Location
Front
Control Type
Knobs
Smart Compatibility
Connectivity
No
Ventilation Details
Downdraft Vent
No
Cooktop Details
Auto Re-ignition
No
Cooktop Surface Color
Stainless
Cooktop Surface Material
Stainless Steel
Griddle Included
Optional Accessory
Heating Element On Indicator Light
No
Hot Surface Indicator Light
No
Ignition Type
Electronic Automatic
Combination Match with Oven
KOES430R, KOES527P, KOES530P, KOES530S, KOES630S, KOES727S, KOES730P, KOES730S, KOES930S, KOSE500E, KOSE507E, KOSE900, KOSE900H
Installs Over Built-In Oven
Yes
Element/Burner Details
Center Element Burner Power
18,000 BTU
Center Element Burner Type
Power
Cooktop Element Style
Sealed Burner
Cooktop Type
Standard
Left Front Element-Burner Power
10000 BTU
Left Front Element-Burner Type
Rapid
Left Rear Element-Burner Power
6,000 BTU
Left Rear Element-Burner Type
Melt / Simmer
Number of Cooking Element-Burners
5
Power Boost
No
Right Front Element-Burner Power
10,000 BTU
Right Front Element-Burner Type
Rapid
Right Rear Element-Burner Power
7,000 BTU
Right Rear Element-Burner Type
Semirapid
Automatic Pan Detection
No
Automatic Pan Size Adjustment
No
Number of Grates
3
Electrical Requirements
208V Compatible
No
Power Cord Included
Yes
Amps
15
Hz
60
Volts
120
Certifications
ADA Compliant
ADA Height and Side Reach Compliant
CEC Listed
Yes
CUL
Yes
UL
Yes
Prop 65
CA
Dimensions & Weights
Common Size
30"
Width
30 1/32"
Depth
20 63/64"
Height
6 15/64"
Maximum Height
6 19/64"
Minimum Height
6 5/32"
Cutout Width
28 7/8"
Cutout Width Max
29 5/16"
Cutout Width Min
28 1/2"
Cutout Depth
19 13/16"
Cutout Depth Max
20"
Cutout Depth Min
19 1/2"
Cutout Height
5"
Gross Weight
59 lbs
Net Weight
53 lbs
Product Information
Brand
KitchenAid
Model
KCGK330SSS
Appearance
Fuel Type
Gas
Fuel Subtype
Natural Gas
Number of Burners
5
Style
Sealed Burner
Type
Drop-In
Control Type
Knobs
Controls Location
Top
Color
Stainless Steel
Surface Color
Stainless Steel
Trim Color
Stainless Steel
Glass Surface
No
Fingerprint Resistant
No
Downdraft Venting
No
Dimensions
Actual Width
30 1/32 Inch
Actual Depth
20 63/64 Inch
Actual Height
6 15/64 Inch
Cutout Width
28 7/8 Inch
Cutout Depth
19 13/16 Inch
Shabbos Compliance
Sabbath Mode
No
Smart
WiFi
No
Remote Control
No
Remote Diagnostics
No
AI Technology
No
Burner
Simmer Burner
Yes
Power Burner
Yes
Burner 1 Output
18,000 BTU (Center)
Burner 2 Output
10,000 BTU (Left Front)
Burner 3 Output
6,000 BTU (Left Rear)
Burner 4 Output
10,000 BTU (Right Front)
Burner 5 Output
7,000 BTU (Right Rear)
Gas Cooktop Features
Continuous Grates
Yes
Dishwasher Safe Grates
Yes
Cooktop Accessory
No Accessory
Grill
No
Griddle
No
French Top
No
Technical Details
ADA Compliant
Yes
Energy Star Rated
No
LP Conversion
Yes
Amps
15
Voltage
120 Volts
GTIN
UPC
883049933757
General
Manufacturer
KitchenAid
