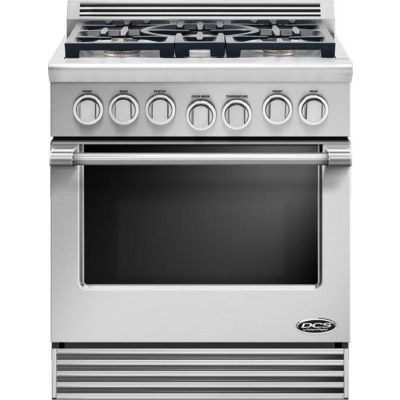

About the DCS RDV305N
- Fisher & Paykel RDV305N 30 Inch Slide-In Pro-Style Dual Fuel Range with 5 Sealed Burners
- 4.0 cu. ft. Self-Cleaning Oven with 3 Adjustable Extension Telescopic Racking System and Illuminated Knobs: Stainless Steel
- Natural Gas
Brand:
Series:
Professional
Style:
Slide-In
Width:
29 7/8"
Height:
36 1/4"
Depth:
30 1/4"
Capacity:
4 Cu. Ft.
Burners:
5
Convection:
Yes
Self Clean:
Yes
Griddle:
No
Grill:
No
Fuel Type:
Dual Fuel
Volts:
240 Volts
Amps:
30
Limited space doesn't have to cramp your cooking style. This range features five (5) patented Dual Flow Burners for simmer temperatures as low as 140 and high output up to 17,500 BTU's. The large self-cleaning oven accommodates full size pans, and the Full Extension Telescopic Racking System has five positions for safer, easier cooking.
About DCS
What do you get when you match style with performanceE A kitchen to die for! DCS appliances have a long and proud history of making top quality, commercial grade kitchen appliances for professional chefs and, more recently, for home chefs too. The result is brilliantly engineered indoor and outdoor appliances that deliver elegance, durability, performance and a high degree of functionality - just the ingredients that today's chef demands! Not only are DCS appliances the real deal, they also make a bold statement in your outdoor kitchen. The polished stainless steel welds provide a seamless finish and the hand crafted design creates an air of quiet strength and confidence, backed up by precise controls that keep you in charge of every aspect - from food storage and preparation, right through to clean-up. DCS appliances. Proof that you don't need to be a chef in order to cook like one. Available at Designer Appliances.
Key Features
Perfect Heat
- Sealed Dual Flow Burners, unique to DCS appliances, put you in control. The 17,500 BTU burner boils fast, but you can also gently simmer on any burner at 140CF.
Easy to Clean
- Sealed burners and an encapsulated cooking surface, coupled with a stainless steel finish, make the cooking surface easy to clean. Removable side racks make the oven space easy to clean too.
Information at a Glance
- Two powerful incandescent lights brightly illuminate the inside of the oven. All control knobs have an illuminated halo system so you can see what's happening at a glance.
Space
- The large convection oven holds full-size baking sheets. A full extension telescopic racking system gives smooth, easy access to the oven.
Available at Designer Appliances
- www.Designer Appliances.com
RDV305N Product Flyer DCS Range Dual Fuel
Specifications
Oven Features
Self-Cleaning
Yes
Temperature Probe
No
Timer
No
Convection
Yes
Delay Bake
No
Digital Temperature Display
No
Broiler Element Location
Top
Broiler Pan Included
Yes
Oven Control Type
Knobs
Primary Oven Capacity
4 Cu. Ft.
Proof Mode
No
Proofing
No
Racks
3
Removable Door
Yes
Interior Oven Light
Yes
Sabbath Mode
No
Power Requirements
Electric
120-240V/60Hz/30A
Gas
0.5 NPT, Minimum 5/8" Diameter Flex Line
Liquid Propane Pressure
11" to 14" W.C.
Natural Gas Pressure
6" to 9" W.C.
Cooktop Features
Burners
5 Dual Flow Sealed Burners
Center Burner
17,500 Max. BTU/hr
Front Left Burner
17,500 Max. BTU/hr
Front Right Burner
12,500 Max. BTU/hr
Lowest Simmer
3,000 BTU/hr at 140° F, All Burners
Power
Gas
Rear Left Burner
12,500 Max. BTU/hr
Rear Right Burner
17,500 Max. BTU/hr
Sealed Range Top
Yes
Warranty
Parts and Labor
2 Years, Limited
Dimensions
Width
29 7/8"
Depth with Handles
30 1/4"
Depth without Handles
27 1/2"
Height
35 3/4" - 36 3/4"
Shipping Weight
340 Lbs.
Specifications:
Series
Professional
Burner Output
Set 1 Output
17500
Set 1 QTY
3
Set 2 Output
12500
Set 2 QTY
2
Appearance
Stainless Steel Handle
Yes
Style
Slide-In
Viewing Window
Yes
Clock
No
Color
Stainless Steel
Continuous Grates
Yes
Cooktop
Sealed Burner
Drawer
None
Fuel Subtype
Natural Gas
Fuel Type
Dual Fuel
Technical Details
Star-K Certified
No
Voltage
240 Volts
ADA Compliant
No
Amps
30
Oven Wattage
4,000
Ignition Type
Electronic
LP Conversion
No
GTIN
UPC
780405710765
Product Information
Warranty Terms
2 years ? Fisher & Paykel appliances are backed by a limited two-year warranty. For full warranty details visit https://www.fisherpaykel.com/us/help-and-support/warranty-information#Limite
Brand
Fisher & Paykel
MPN
71076
Model
RDV305N
Oven Features
Telescopic Racking System
Yes
Self-Cleaning
Yes
Baking Performance
3,500 Watts
Broiling Performance
4,000 Watts
Capacity
4.0 Cu. Ft.
Concealed Element
Yes
Convection Cooking
Yes
Oven Functions
Convection Baking, Roasting, Convection Broiling, Defrosting, Reheating
Power
Electric
Racks
3 Adjustable, 5 Shelf Positions
Dimensions
Width
29 7/8 Inch
Depth
30 1/4 Inch
Height
36 1/4 Inch
Cooktop Features
Cooktop Control Type
Knobs
Burners / Elements
5
Downdraft Ventilation
No
Modules Required
No
Griddle
No
Grill
No
Hot Surface Indicator Light
No
Induction
No
Burner
Burner 1 Output
17500
Burner 2 Output
12500
Capacity
Number of Burners
5
General
Manufacturer
DCS
